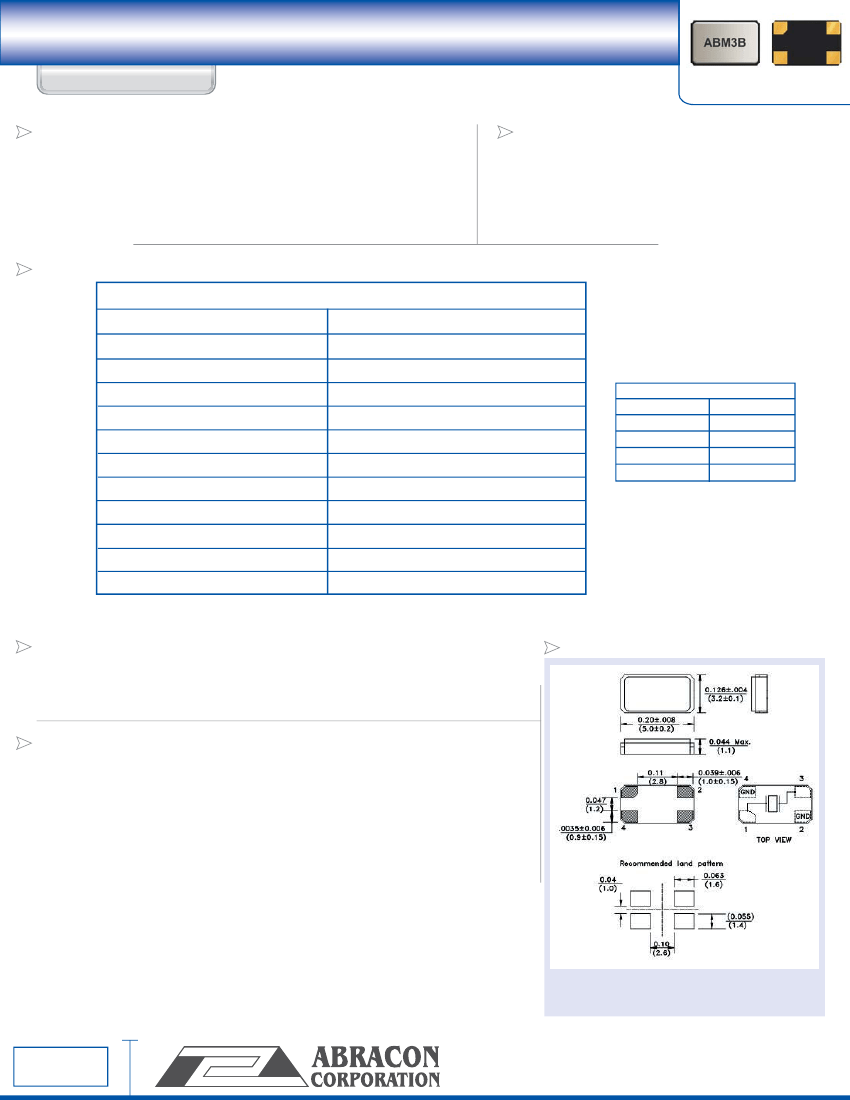

CERAMIC SMD ULTRA MINIATURE CRYSTAL
ABM3B
*RoHS COMPLIANT
5.0 X 3.2 X 1.1mm
| | | | | | | | | | | | | | |
FEATURES:
• Fundamental mode.
• Suitable for reflow.
• Tight Stability available.
• Ceramic package and metal lid assures high precision and reliability.
• Seam sealing.
APPLICATIONS:
• Cellular telephones, Pagers.
• Communication and Test equipment.
• High Density applications.
• PCMCIA and wireless applications.
STANDARD SPECIFICATIONS:
PARAMETERS
Frequency Range
Operation Mode
Operating Temperature
Storage Temperature
Frequency Tolerance @ 25°C
Frequency Stability
Equivalent Series Resistance
Shunt Capacitance C0
Load Capacitance CL
Drive Level
Aging (First Year) @ 25°C ± 3°C
Insulation Resistance
8.000 MHz - 60.000 MHz*
Fundamental
- 10°C to + 60°C (see options)
- 40°C to + 85°C
± 50 ppm max. (see options)
± 50 ppm max. (see options)
See table 1
7 pF max.
18 pF (see options)
100
µΩ
max., 10
µΩ
correlation
± 5ppm max.
500 MΩ min at 100Vdc ± 15 Vdc
TABLE 1
FREQ (MHz) ESR (
Ω
)max.
8.0 - 9.999
200
10.0 - 11.999
100
12.0 - 15.999
70
16.000 - 60.000
50
*please refer to list of developed frequencies, contact factory for additional frequencies
MARKING:
- XX.X
- ABM3B ZYX
(Frequency)
(ZY:date code, e.g. L2; Z:
month A to L; Y: last digit of year; X: Traceability code)
OUTLINE DRAWING:
OPTIONS AND PART IDENTIFICATION (Left blank if standard)*:
ABM3B - Frequency - CL - ESR - Temperature - Tolerance - Stability - PIN - Packaging
Load Capacitance option:
Please specify
CL in pF
or
S
for Series (min 10 pF)
ESR option:
RXXX (value in ohms)
Packaging option:
T for Tape and Reel
(1,000pcs/reel)
PIN option:
P
for chamfer of
0.3mm on PIN 4
rev3.1-8/06
Temperature options:
E
for 0°C to +70°C
B
for -20°C to +70°C
C
for -30°C to +70°C
N
for -30°C to +85°C
D
for -40°C to +85°C
Freq Tolerance options:
1
for ± 10 ppm
(**)
7
for ± 15 ppm
(**)
2
for ± 20 ppm
(**)
3
for ± 25 ppm
(**)
4
for ± 30 ppm
(**) Please call for availability.
Freq Stability options:
U
for ± 10 ppm
(*)
G
for ± 15 ppm
X
for ± 20 ppm
W
for ± 25 ppm
Y
for ± 30 ppm
H
for ± 35 ppm
Z
for ± 100 ppm
(**)
(*) -10°C to +60°C only
(**) Option Z may apply to
extended temps.
Dimensions: inch (mm)
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
