BX7211 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BX7211

BX7211: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size59KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

BX7211 Overview

RF AMPLIFIER MODEL

BX7211 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	H1
Reach Compliance Code	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	7.5 dB
Maximum input power (CW)	15 dBm
Maximum operating frequency	200 MHz
Minimum operating frequency	30 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM7211

Features



Low Noise Figure: 1.8 dB Typical

High Output Power: +20 dBm Typical

Operating Temp. -55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM7211, 4 Pin TO-8 (T4)

TN7211, 4 Pin Surface Mount (SM3)

FP7211, 4 Pin Flatpack (FP4)

BX7211,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +61 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +55 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +40 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise Figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

10 - 200 MHz

8.5

+20

-12

<1.75:1

<1.35:1

1.8

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

30 - 200 MHz

7.5 Min.

+19 Min.

-11 Max.

2.0:1 Max.

3.0 Max.

+15

33 Max.

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +15 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

μsec

Max.)

Revision 9/24/2012

MTBF Calculation for Ground Benign Environment

25 ºC

.................................................23,314,857 hrs

Note: Care should always be taken to effectively ground the case of each unit.

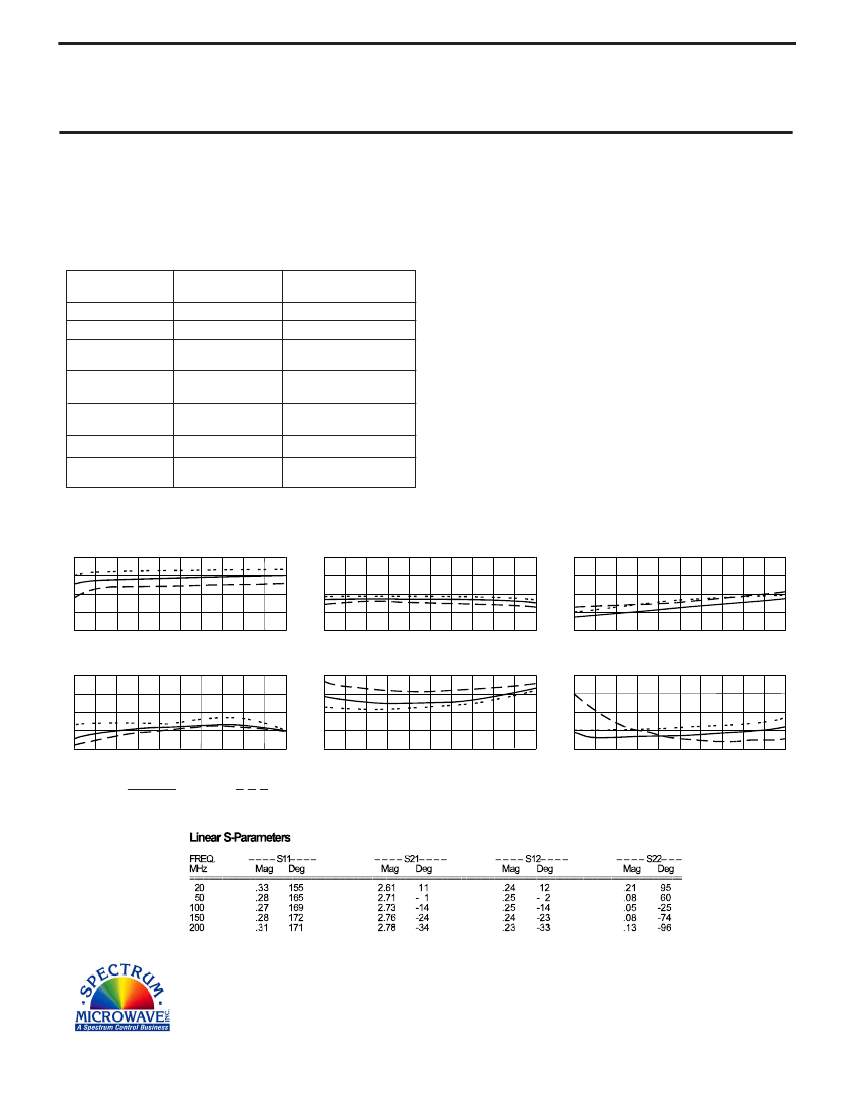

Typical Performance Data

Start 30 MHz

Stop 200 MHz

Gain (dB)

-5

- 10

- 15

- 20

Reverse Isolation (dB)

Start 30 MHz

Stop 200 MHz

Start 30 MHz

Noise Figure (dB)

Stop 200 MHz

+23

+22

+21

+20

+19

Start 30 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Stop 200 MHz

Start 30 MHz

Stop 200 MHz

Start 30 MHz

Stop 200 MHz

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

BX7211 Related Products

	BX7211	FP7211	TM7211	TN7211
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compliant	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COMPONENT	COMPONENT	COMPONENT
Gain	7.5 dB	7.5 dB	7.5 dB	7.5 dB
Maximum input power (CW)	15 dBm	15 dBm	15 dBm	15 dBm
Maximum operating frequency	200 MHz	200 MHz	200 MHz	200 MHz
Minimum operating frequency	30 MHz	30 MHz	30 MHz	30 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	API Technologies	API Technologies	API Technologies	-
