FP6656: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size35KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6656 Overview

RF AMPLIFIER MODEL

FP6656 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP4, FLATPACK-4
Reach Compliance Code	compli
structure	COMPONENT
Gain	12.5 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	300 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM6656

Features

High Output Power: +27 dBm Typical

Medium Gain: 14 dB Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM6656, 4 Pin TO-8 (T4)

TN6656, 4 Pin Surface Mount (SM3)

FP6656, 4 Pin Flatpack (FP4)

BX6656, Connectorized Housing (H1)

PRELIMINARY

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point..... +58 dBm (Typ.)

Second Order Two Tone Intercept Point..... +51 dBm (Typ.)

Third Order Two Tone Intercept Point......... +40 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

10 - 300 MHz

+27.0

-16

<1.5:1

4.5

+15

160

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 300 MHz

12.5 Min.

+26.0 Min.

-15 Min.

2.0:1 Max.

6.0 Max.

+15

170 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 18 dBm

Short Term RF Input Power.... 100 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.2 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

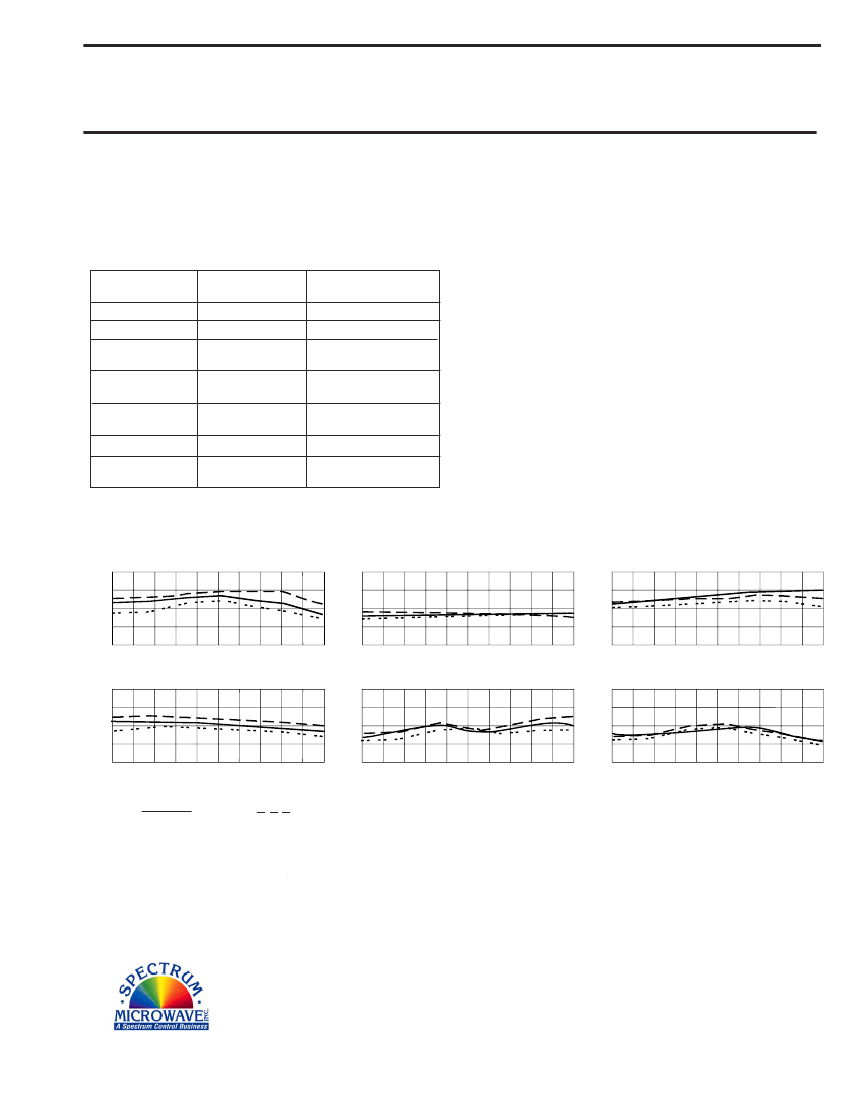

Typical Performance Data

Start 10 MHz

Stop 300 MHz

Gain (dB)

-40

-30

-20

-10

Reverse Isolation (dB)

Noise Figure (dB)

Start 10 MHz

Stop 300 MHz

Start 10 MHz

Stop 300 MHz

+29

+28

+27

+26

+25

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 10 MHz

Stop 300 MHz

Start 10 MHz

Stop 300 MHz

Start 10 MHz

Stop 300 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

02/06/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
