FP6681 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6681

FP6681: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size67KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6681 Overview

RF AMPLIFIER MODEL

FP6681 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	15.5 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

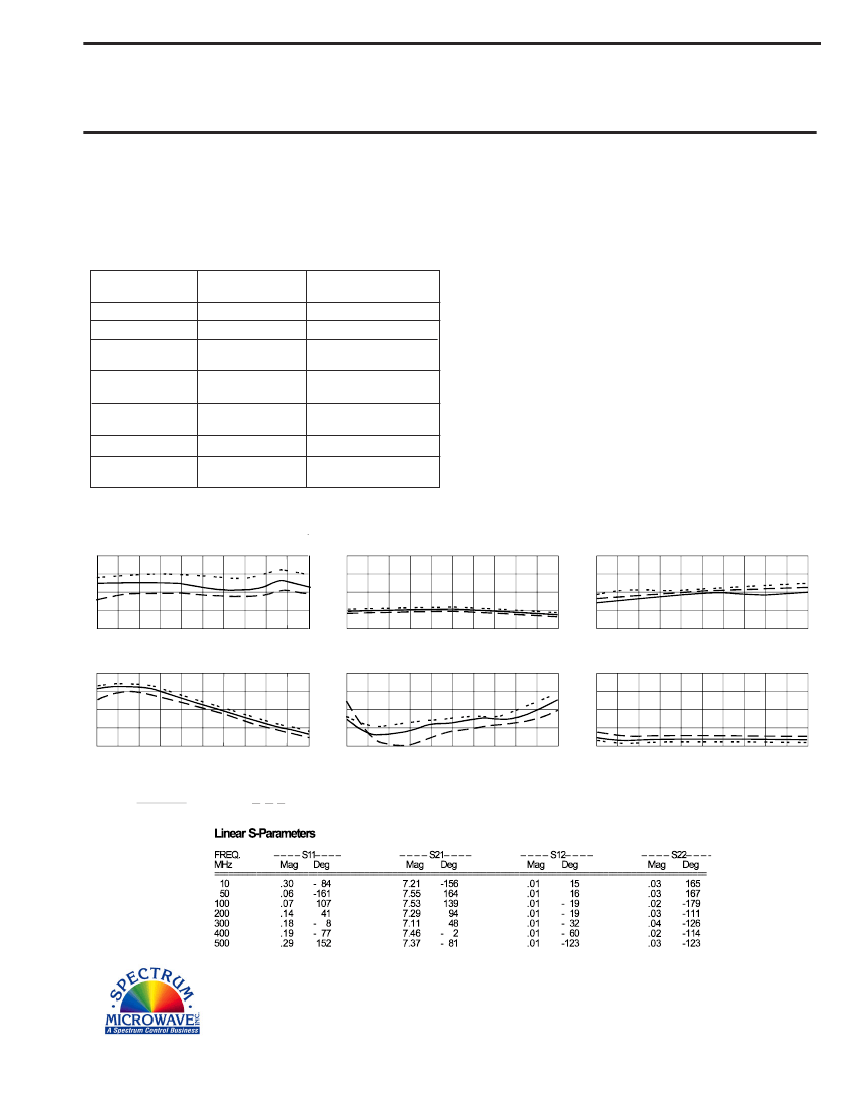

RF AMPLIFIER

MODEL

TM6681

High Gain: -37 dB Typical

Very Low Output VSWR: 1.1:1 Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25

ºC

10 - 500 MHz

17.5

+9.5

-37

1.40:1

1.10:1

3.0

+15

MIN/MAX

Ta = -55

ºC

to +85

ºC

20 - 500 MHz

15.5 Min.

+7.0 Min.

-35 Max.

2.00:1 Max.

1.25:1 Max.

4.0 Max.

+15

32 Max.

Available as:

TM6681, 4 Pin TO-8 (T4)

TN6681, 4 Pin Surface Mount (SM3)

FP6681, 4 Pin Flatpack (FP4)

BX6681,Connectorized Housing (H1)

Features

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point .......+33 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +28 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +23 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 10 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power ................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 10 MHz

Stop 500 MHz

Gain (dB)

- 10

- 20

- 30

- 40

- 50

Reverse Isolation (dB)

Noise Figure (dB)

Start 10 MHz

Stop 500 MHz

Start 10 MHz

Stop 500 MHz

+11

+10

+ 9

+ 8

+ 7

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 10 MHz

Stop 500 MHz

Start 10 MHz

Stop 500 MHz

Start 10 MHz

Stop 500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

04/12/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6681 Related Products

	FP6681	TN6681	TM6681	BX6681
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COMPONENT	COMPONENT	COAXIAL
Gain	15.5 dB	15.5 dB	15.5 dB	15.5 dB
Maximum input power (CW)	10 dBm	10 dBm	10 dBm	10 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	20 MHz	20 MHz	20 MHz	20 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	-	API Technologies	API Technologies	API Technologies
