cULus (without 15V input and without 3.3V output models)
UL 60950-1
Pin Out Specifications
Pin
1
2
4
5
6
7
1500 VDC
Single
+ V Input
- V Input
- V Output
No pin
+ V Output
No pin
Dual
+ V Input
- V Input
- V Output
Common
+ V Output
No pin
3000VDC
Single
+ V Input
- V Input
No pin
- V Output
No pin
+ V Output
Dual
+ V Input
- V Input
No pin
- V Output
Common
+ V Output

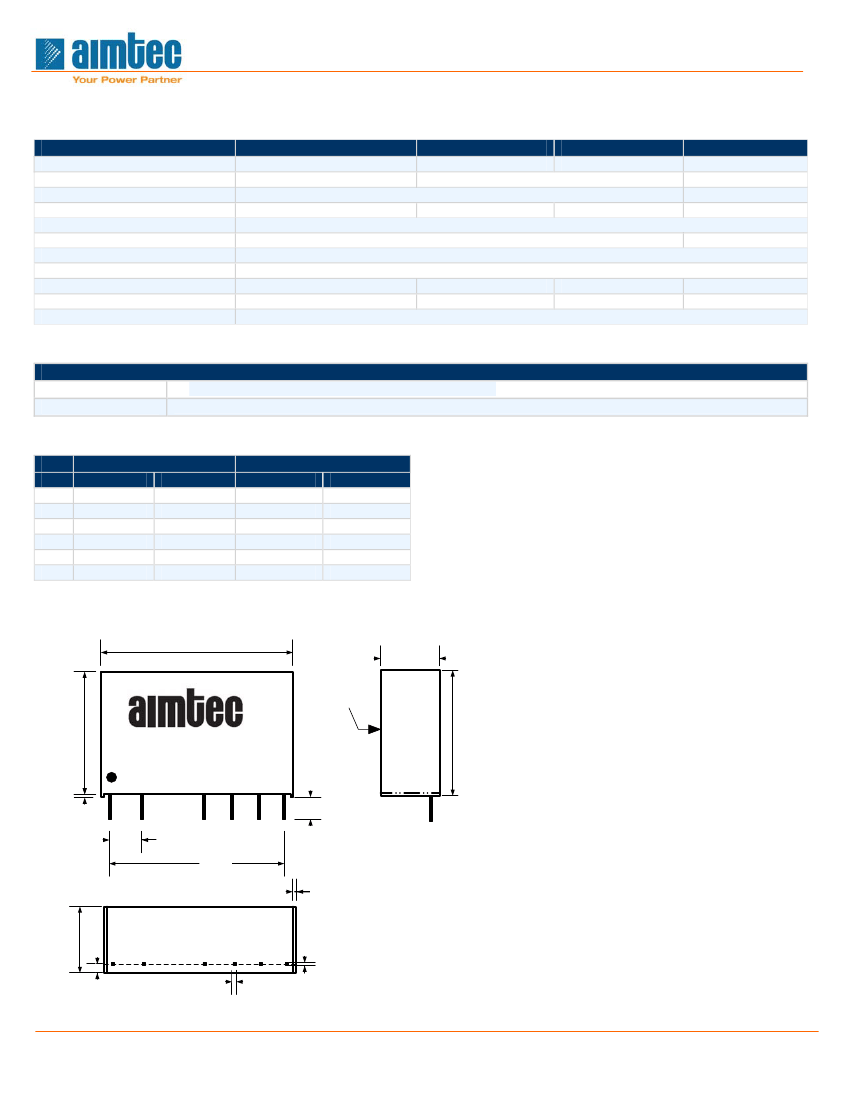

Dimensions
19.60
(0.77)
7.00
(0.27)
PRINTED
FACE
10.0
(0.39)
10.0
(0.39)
0.50
(0.02)
4.10
(0.16)
2.54
(0.10)
15.20
(0.60)
0.50
(0.02)
NOTE:
Unit:mm [inch]
Pin tolerances: 0.10mm [ 0.004inch]
General tolerances: 0.25mm [ 0.010inch]
7.00
(0.27)
0.50
(0.02)
0.30
(0.01)
0.90
(0.04)
www.aimtec.com
F 051e R12.B
Tel: +1 514 620 2722
3 of 5
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM2DS-NZ
2 Watt | DC-DC Converter

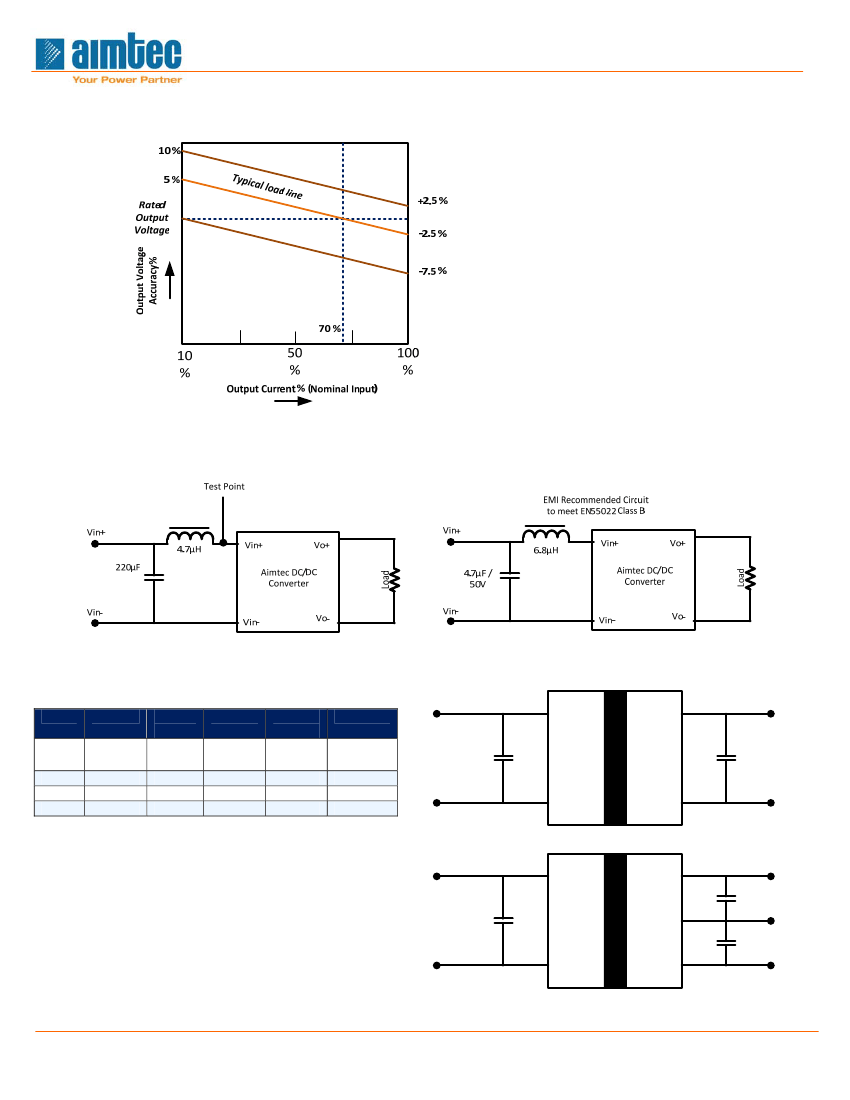

Typical characteristics
Test Circuit Input Reflected Ripple Current& EMI Recommended Circuit
Recommended Circuits to Lower Ripple & Noise
Capacitor selection Table
Vin
C1
Single
VDC
3.3 /
5
4.7 µF
5V
12
2.2µF
12 V
15
2.2µF
15 V
24
1µF
24 V
Vin+
Single
Vo+
C2
10µF
2.2µF
1µF
1 µF
Dual
VDC
±3.3 /
±5V
±12 V
±15 V
±24 V
C2/C3
4.7 µF
1 µF
0.47 µF
0.47 µF
Vin-
Vo-
C2
C1
1) Ensure output load of Min 10%, or specifications may not be met
2) Under normal operation, there is no protection for overload
condition
3) Converter may exhibit start up delay if capacitive load exceeds
recommended
4) Ceramic or electrolytic type capacitors are recommended,
tantalum type may damage converter
5) Parallel connections, or hot swapping is not recommended
Dual
Vin+
C2
Com
C1
C3
Vin-
Vo-
Vo+
www.aimtec.com
F 051e R12.B
Tel: +1 514 620 2722
4 of 5
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM2DS-NZ
2 Watt | DC-DC Converter

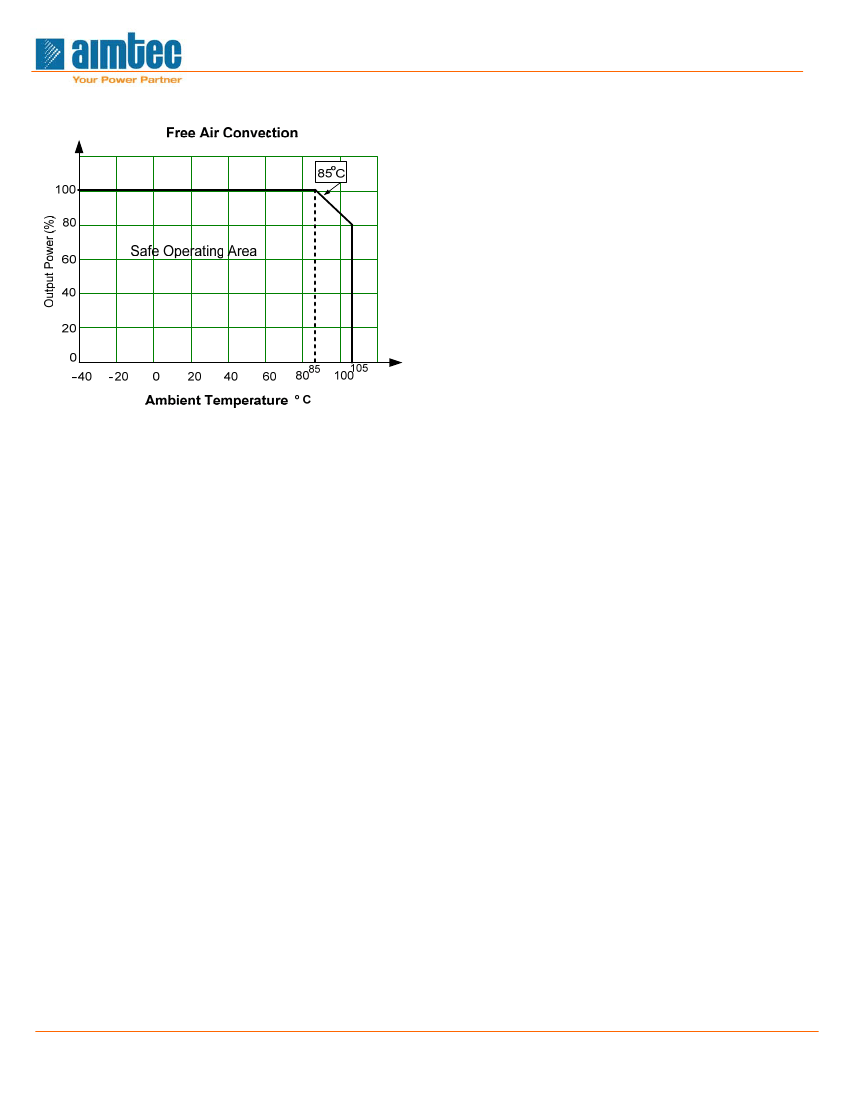

Derating
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
