FP7203 Overview

RF AMPLIFIER MODEL

FP7203 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	30 dB
Maximum input power (CW)	13 dBm
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	250 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	FL4(UNSPEC)
power supply	15 V
RF/Microwave Device Types	WIDE BAND LOW POWER
surface mount	YES
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

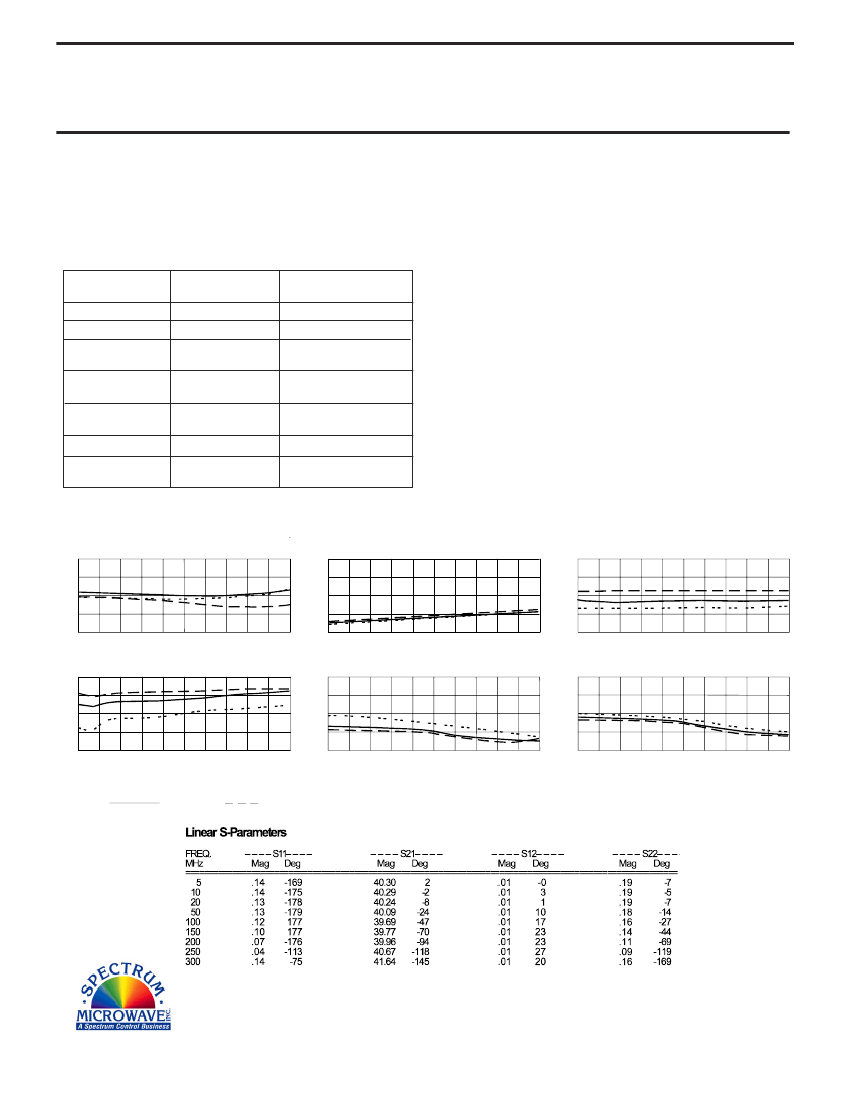

RF AMPLIFIER

MODEL

TM7203

Features

Low Noise Figure: 3 dB Typical

High Gain: 32 dB Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM7203, 4 Pin TO-8 (T4)

TN7203, 4 Pin Surface Mount (SM3)

FP7203, 4 Pin Flatpack (FP4)

BX7203,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point....... +36 dBm (Typ.)

Second Order Two Tone Intercept Point........ +30 dBm (Typ.)

Third Order Two Tone Intercept Point............ +18 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

5-250 MHz

-40

<1.75:1

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5-250 MHz

30.0 Min.

+6.5 Min.

-37 Max.

2.0:1 Max.

4.0 Max.

+15 Min.

38 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

- 10

- 20

- 30

- 40

- 50

Reverse Isolation (dB)

Start 5 MHz

Stop 250 MHz

Noise Figure (dB)

Start 5 MHz

Stop 250 MHz

Start 5 MHz

Stop 250 MHz

+10

+ 9

+ 8

+ 7

+ 6

Start 5 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Stop 250 MHz

Start 5 MHz

Stop 250 MHz

Start 5 MHz

Stop 250 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

6/29/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP7203 Related Products

	FP7203	BX7203	TM7203	TN7203
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	30 dB	30 dB	30 dB	30 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	250 MHz	250 MHz	250 MHz	250 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
package instruction	FP-4	-	CAN4,.3	QFL4,.4SQ
Number of terminals	4	-	4	4
Package body material	PLASTIC/EPOXY	-	METAL	PLASTIC/EPOXY
Encapsulate equivalent code	FL4(UNSPEC)	-	CAN4,.3	QFL4,.4SQ
power supply	15 V	-	15 V	15 V
Base Number Matches	-	1	1	1
