FP7211PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP7211PM

FP7211PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size61KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP7211PM Overview

RF AMPLIFIER MODEL

FP7211PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	7.5 dB
Maximum input power (CW)	15 dBm
Maximum operating frequency	200 MHz
Minimum operating frequency	30 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

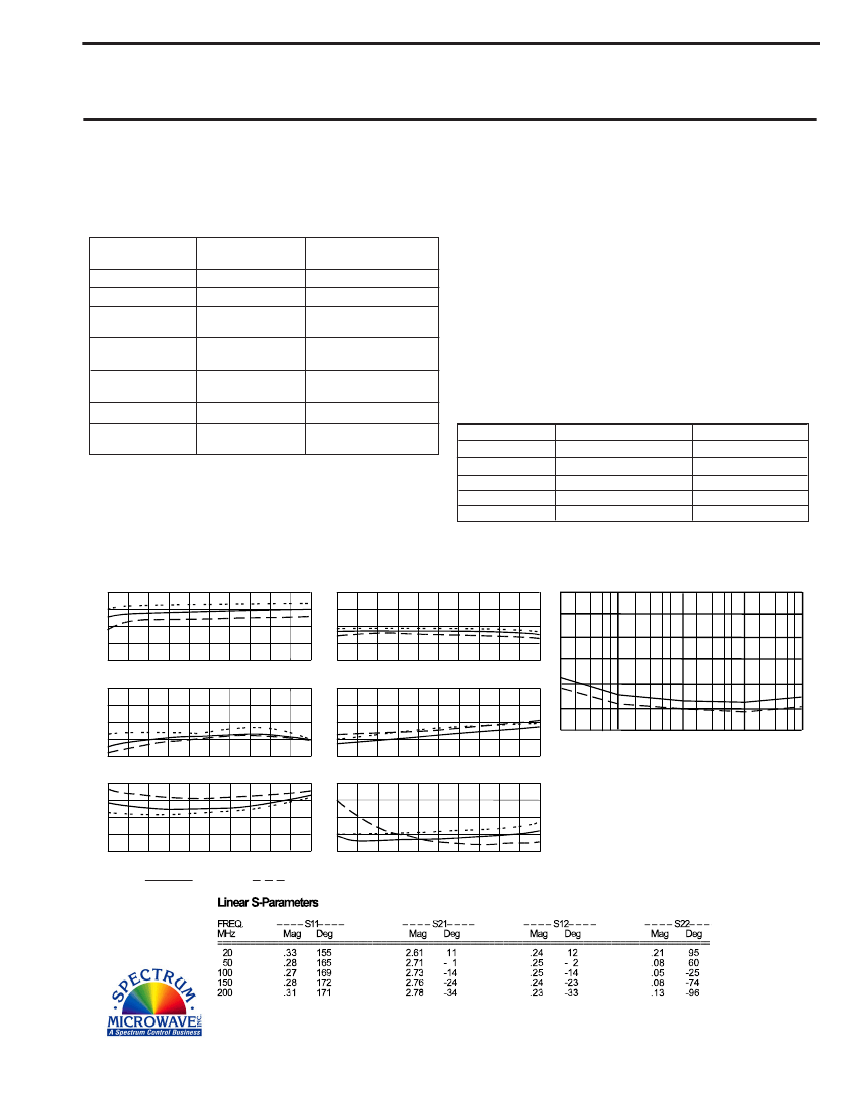

RF AMPLIFIER

MODEL

TM7211PM

Features



Superior Phase Noise Performance

Low Noise Figure: 1.8 dB Typical

High Output Power: +20 dBm Typical

Operating Temp. -55 ºC to +85 ºC

TYPICAL

Ta= 25 ºC

10 - 200 MHz

8.5

+20

-12

<1.75:1

<1.35:1

1.8

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

30 - 200 MHz

7.5 Min.

+19 Min.

-11 Max.

2.0:1 Max.

3.0 Max.

+15

33 Max.

Available as:

TM7211PM, 4 Pin TO-8 (T4)

TN7211PM, 4 Pin Surface Mount (SM3)

FP7211PM, 4 Pin Flatpack (FP4)

BX7211PM, Connectorized Housing (H1)

Maximum Ratings

Ambient Operating Temperature.................-55ºC to +100 ºC

Storage Temperature.................................-62ºC to +125 ºC

Case Temperature..................................................+125 ºC

DC Voltage..........................................................+18 Volts

Continuous RF Input Power...................................+15 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

μsec

Max.)

Thermal Resistance (Theta J C) ....................... 81 ºC/Watt

Junction Temperature Rise Above the Case Temp........+24ºC

Maximum Operating Junction Temperature...............+109ºC

Maximum Junction Temperature of Die.....................+205ºC

Revision 9/24/2012

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

MTBF Calculation for Ground Benign Environment

25 ºC

.................................................23,314,857 hrs

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-172

-178

-180

-181

-179

Guarantee (Min.)

-168

-174

-176

-177

-175

Note: Care should always be taken to effectively ground the case of each unit.

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +61 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +55 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +40 dBm (Typ.)

Gain (dB)

Start 30 MHz

Stop 200 MHz

Typical Performance Data

-5

-10

-15

-20

Start 30 MHz

Stop 200 MHz

-160

Reverse Isolation (dB)

-130

-140

-150

Phase Noise (dBc/Hz)

1 dB Comp. (dBm)

+23

+22

+21

+20

+19

Start 30 MHz

Noise Figure (dB)

-170

-180

-190

100

10K

100K

_________Guarantee __ __ __ __Typical

Start 30 MHz

Stop 200 MHz

2.0

1.5

1.0

Start 30 MHz

Input VSWR

Stop 200 MHz

2.0

1.5

1.0

Stop 200 MHz

Start 30 MHz

Output VSWR

Phase Noise Test Conditions:

Carrier Frequency: 100 MHz

Power Output: +20 dBm

Temperature: 25 ºC

Agilent ES5500 System

Stop 200 MHz

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP7211PM Related Products

	FP7211PM	BX7211PM	TM7211PM	TN7211PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compliant	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	7.5 dB	7.5 dB	7.5 dB	7.5 dB
Maximum input power (CW)	15 dBm	15 dBm	15 dBm	15 dBm
Maximum operating frequency	200 MHz	200 MHz	200 MHz	200 MHz
Minimum operating frequency	30 MHz	30 MHz	30 MHz	30 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	API Technologies	API Technologies	API Technologies	-
