LF2242JC15 datasheet, PDF - EEWORLD Datasheet

LF2242JC15: DescriptionDigital Filter, 12-Bit, CMOS, PQCC44, 0.690 X 0.690 INCH, PLASTIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size266KB，8 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric View All

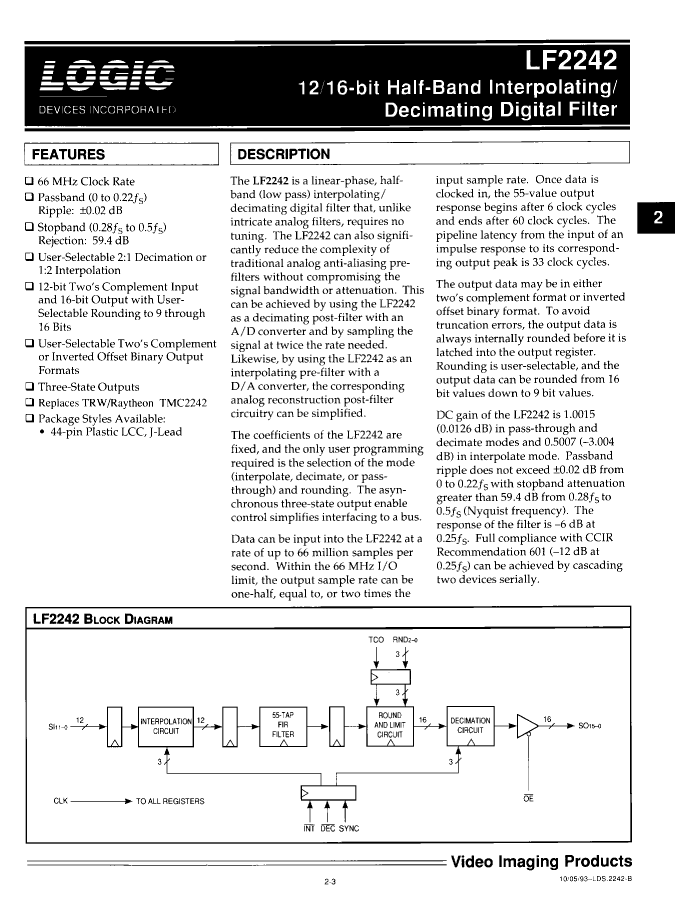

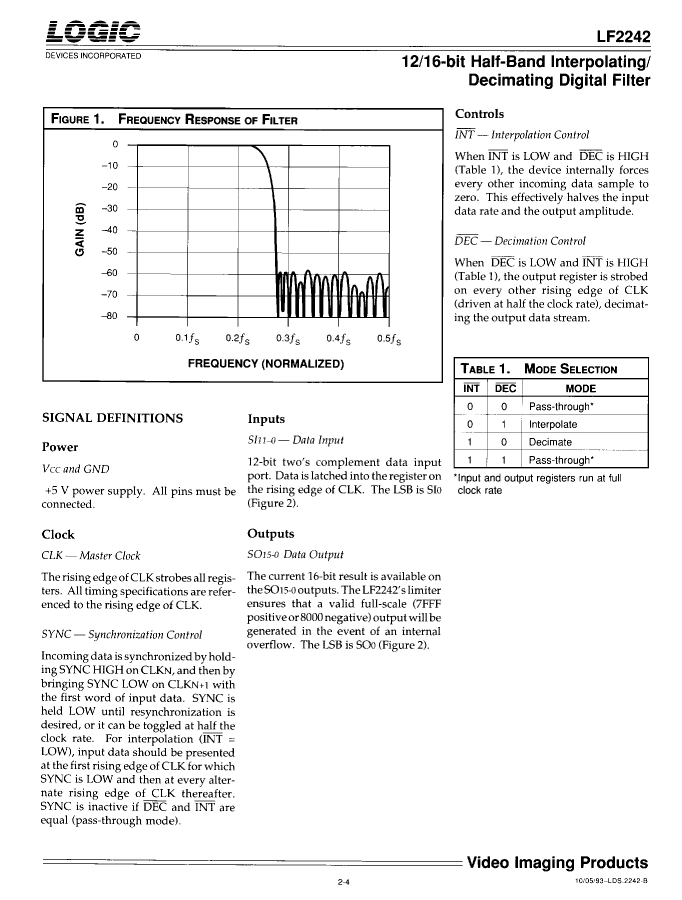

LF2242JC15 Overview

Digital Filter, 12-Bit, CMOS, PQCC44, 0.690 X 0.690 INCH, PLASTIC, LCC-44

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LOGIC Devices
Parts packaging code	LCC
package instruction	QCCJ, LDCC44,.7SQ
Contacts	44
Reach Compliance Code	unknown
ECCN code	3A001.A.3

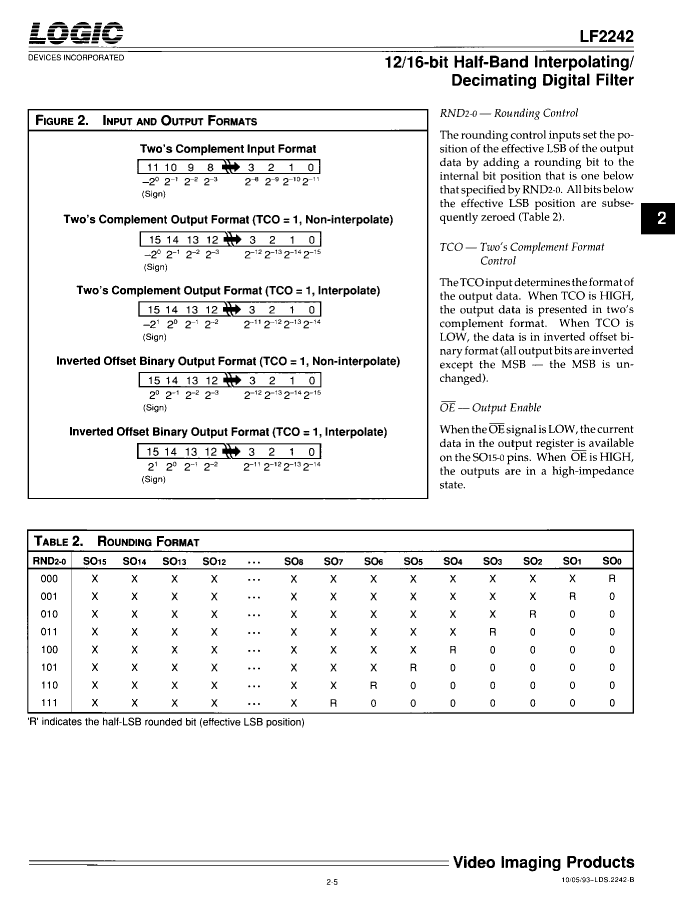

Other features	2\'S COMPLEMENT/INVERTED OFFSET BINARY OUTPUT; ICC SPECIFIED @ 20MHZ
boundary scan	NO

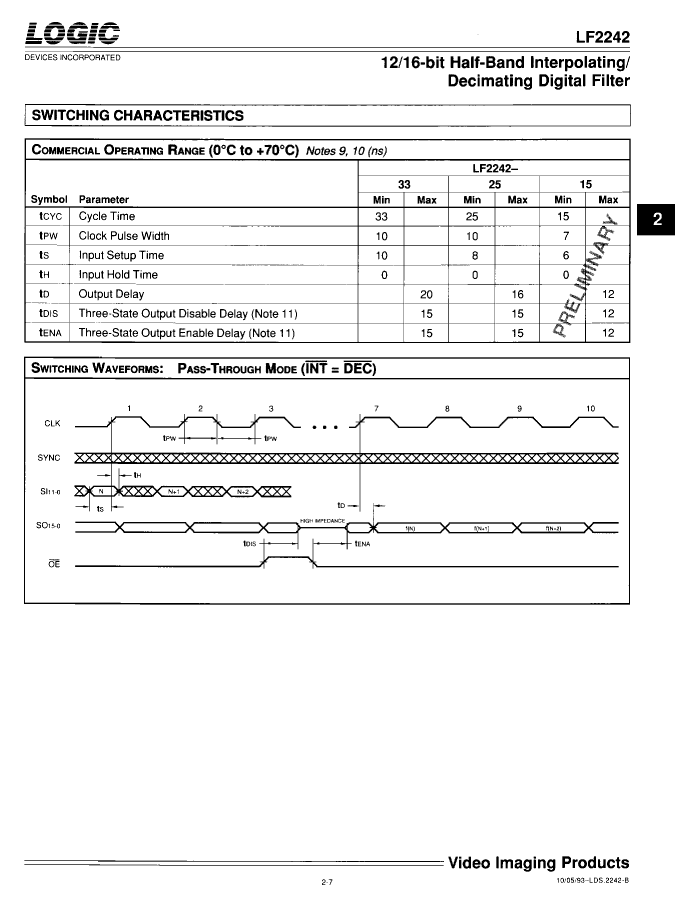

maximum clock frequency	66.67 MHz
External data bus width	12
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
length	16.383 mm
low power mode	NO
Humidity sensitivity level	3
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
Output data bus width	16
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225

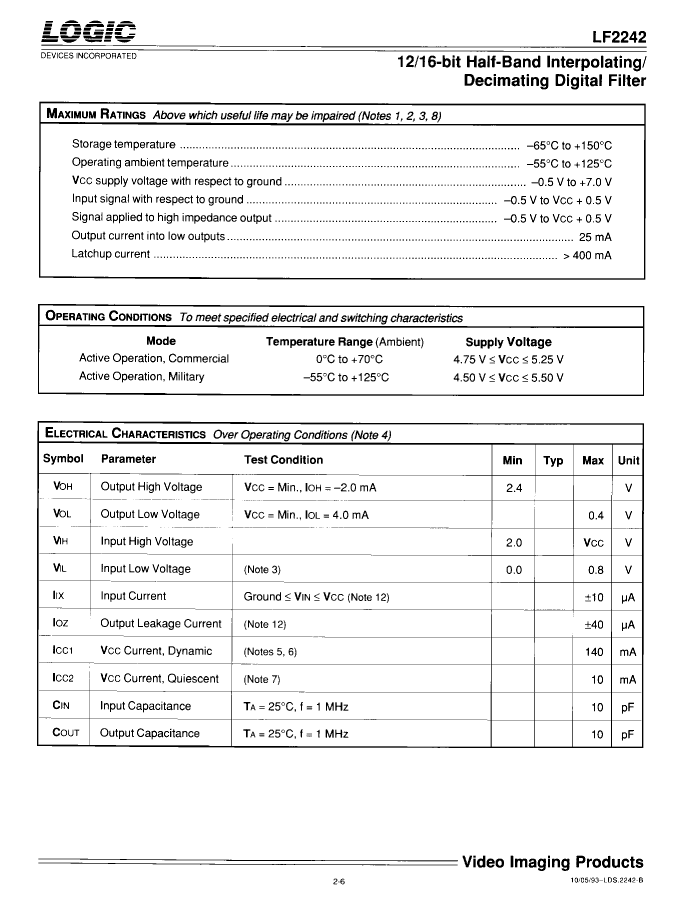

power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.3942 mm
Maximum slew rate	140 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	16.383 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, DIGITAL FILTER
