935262080112 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> 935262080112

Preview

935262080112: DescriptionIC ALVT SERIES, 7 1-BIT DRIVER, TRUE OUTPUT, PDSO56, PLASTIC, TSSOP-56, Bus Driver/Transceiver; Categorylogic logic; File Size735KB，14 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

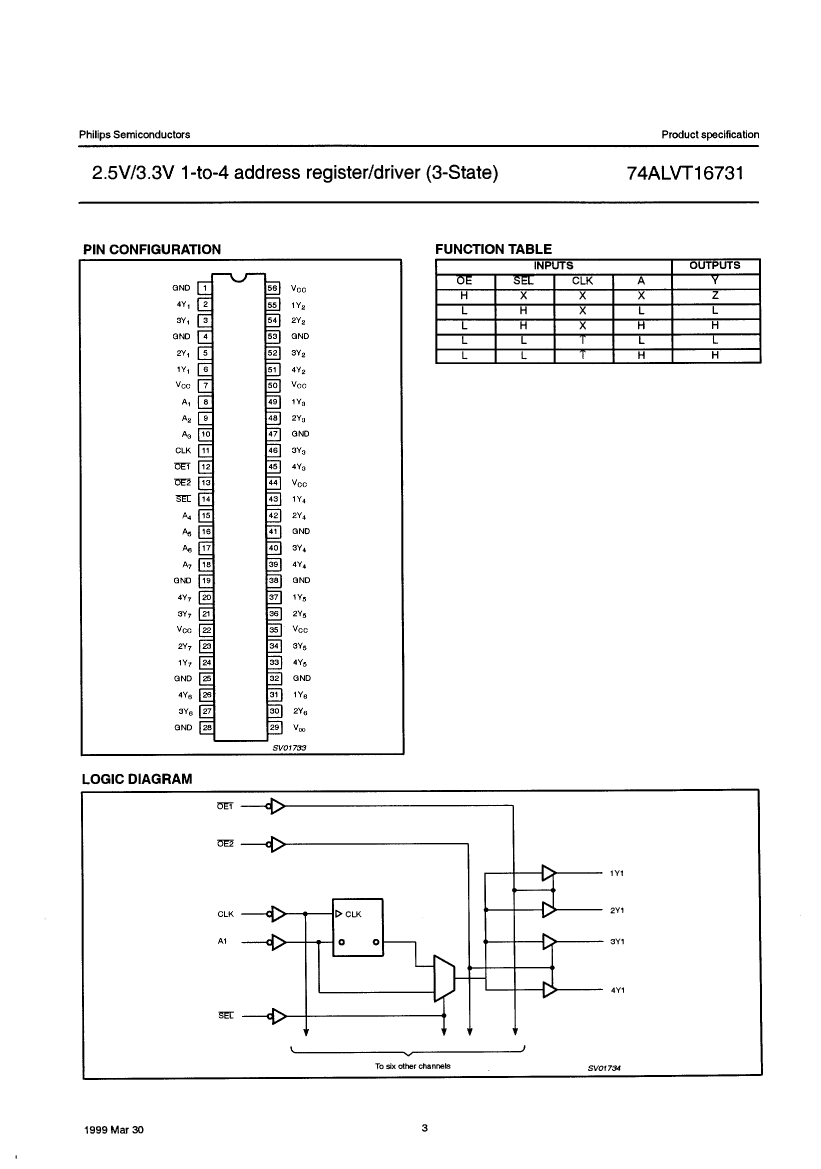

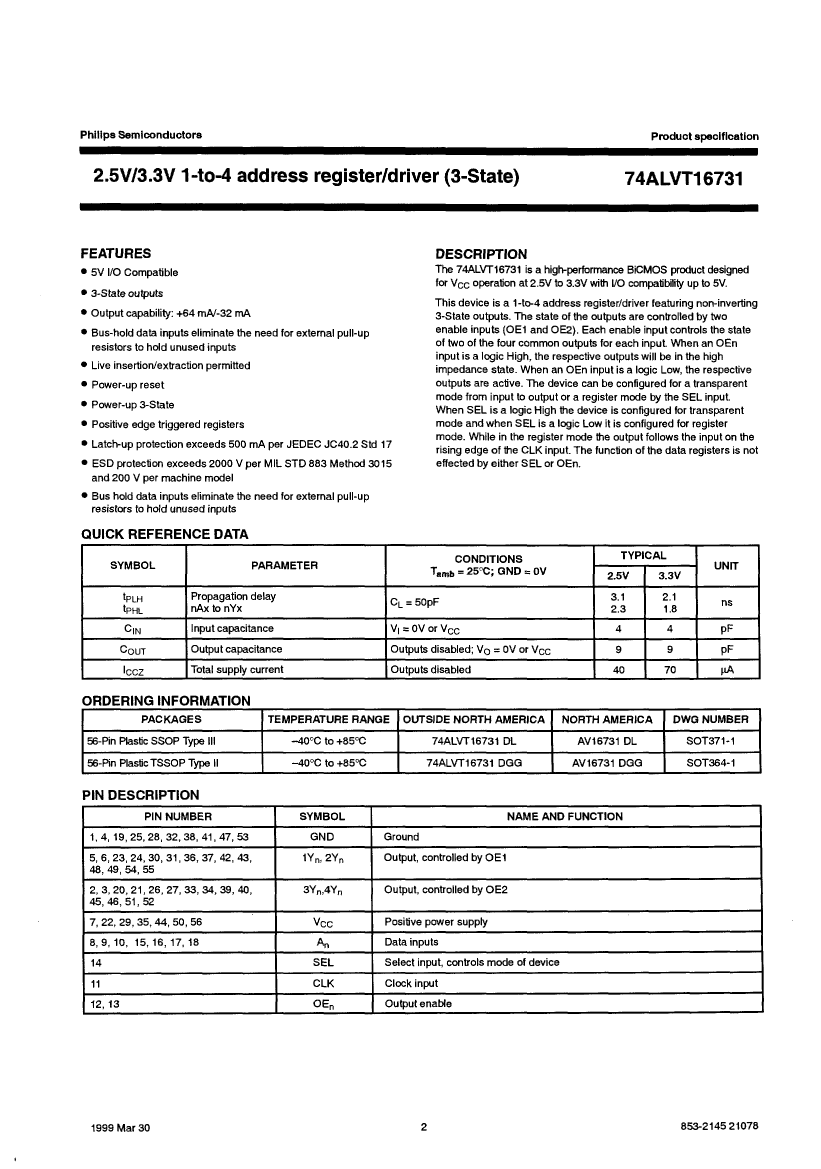

935262080112 Overview

IC ALVT SERIES, 7 1-BIT DRIVER, TRUE OUTPUT, PDSO56, PLASTIC, TSSOP-56, Bus Driver/Transceiver

935262080112 Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	56
Reach Compliance Code	unknown
Other features	CAN ALSO OPERATE IN 3.3V SUPPLY
series	ALVT
JESD-30 code	R-PDSO-G56
length	14 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	1
Number of functions	7
Number of ports	2
Number of terminals	56

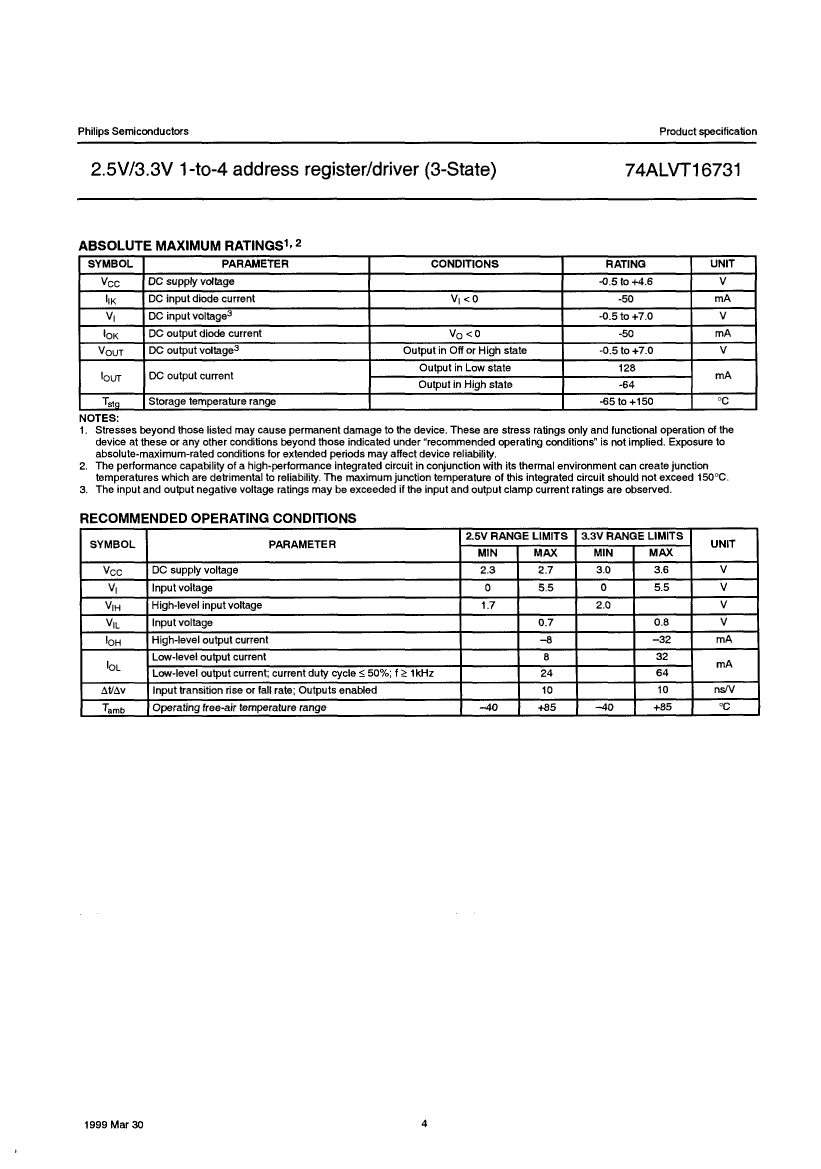

Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	6.6 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm

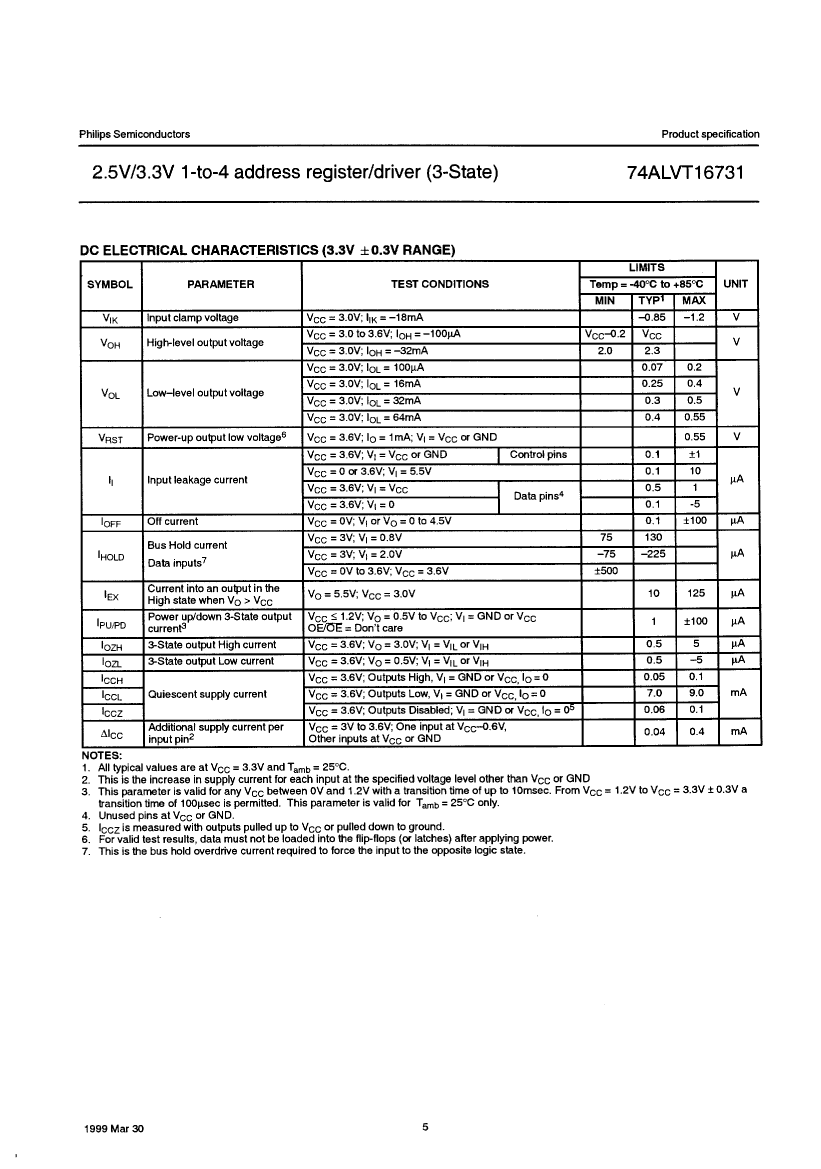

Maximum supply voltage (Vsup)	2.7 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
width	6.1 mm

Preview

Download Datasheet

View All

935262080112 Related Products

	935262080112	74ALVT16731DG	74ALVT16731DG-T	935262080118	935262079118	935262079112
Description	IC ALVT SERIES, 7 1-BIT DRIVER, TRUE OUTPUT, PDSO56, PLASTIC, TSSOP-56, Bus Driver/Transceiver	IC ALVT SERIES, 7-BIT DRIVER, TRUE OUTPUT, PDSO56, PLASTIC, TSSOP-56, Bus Driver/Transceiver	IC ALVT SERIES, 7-BIT DRIVER, TRUE OUTPUT, PDSO56, PLASTIC, TSSOP-56, Bus Driver/Transceiver	IC ALVT SERIES, 7 1-BIT DRIVER, TRUE OUTPUT, PDSO56, PLASTIC, TSSOP-56, Bus Driver/Transceiver	IC ALVT SERIES, 7 1-BIT DRIVER, TRUE OUTPUT, PDSO56, PLASTIC, SSOP-56, Bus Driver/Transceiver	IC ALVT SERIES, 7-BIT DRIVER, TRUE OUTPUT, PDSO56, PLASTIC, SSOP-56, Bus Driver/Transceiver
Parts packaging code	TSSOP	TSSOP	TSSOP	TSSOP	SSOP	SSOP
package instruction	TSSOP,	TSSOP,	TSSOP,	TSSOP,	SSOP,	SSOP,
Contacts	56	56	56	56	56	56
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	CAN ALSO OPERATE IN 3.3V SUPPLY	CAN ALSO OPERATE IN 3.3V SUPPLY	CAN ALSO OPERATE IN 3.3V SUPPLY	CAN ALSO OPERATE IN 3.3V SUPPLY	CAN ALSO OPERATE IN 3.3V SUPPLY	CAN ALSO OPERATE IN 3.3V SUPPLY
series	ALVT	ALVT	ALVT	ALVT	ALVT	ALVT
JESD-30 code	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56
length	14 mm	14 mm	14 mm	14 mm	18.425 mm	18.425 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	1	7	7	1	1	7
Number of functions	7	1	1	7	7	1
Number of ports	2	2	2	2	2	2
Number of terminals	56	56	56	56	56	56
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP	TSSOP	TSSOP	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	6.6 ns	6.6 ns	6.6 ns	6.6 ns	6.6 ns	6.6 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm	2.8 mm	2.8 mm
Maximum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Minimum supply voltage (Vsup)	2.3 V	2.3 V	2.3 V	2.3 V	2.3 V	2.3 V
Nominal supply voltage (Vsup)	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	6.1 mm	6.1 mm	6.1 mm	6.1 mm	7.5 mm	7.5 mm
Maker	NXP	-	-	NXP	NXP	NXP
