ECET2EP222EX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> ECET2EP222EX

ECET2EP222EX: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 2200uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size216KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

ECET2EP222EX Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 2200uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT

ECET2EP222EX Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	2200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	35 mm
dielectric materials	ALUMINUM (WET)
ESR	90 mΩ
leakage current	2.22486 mA
length	63 mm
Manufacturer's serial number	T-UP
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Snap-in
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	250 V
ripple current	4700 mA
series	ECE-TP
surface mount	NO
Delta tangent	0.15
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

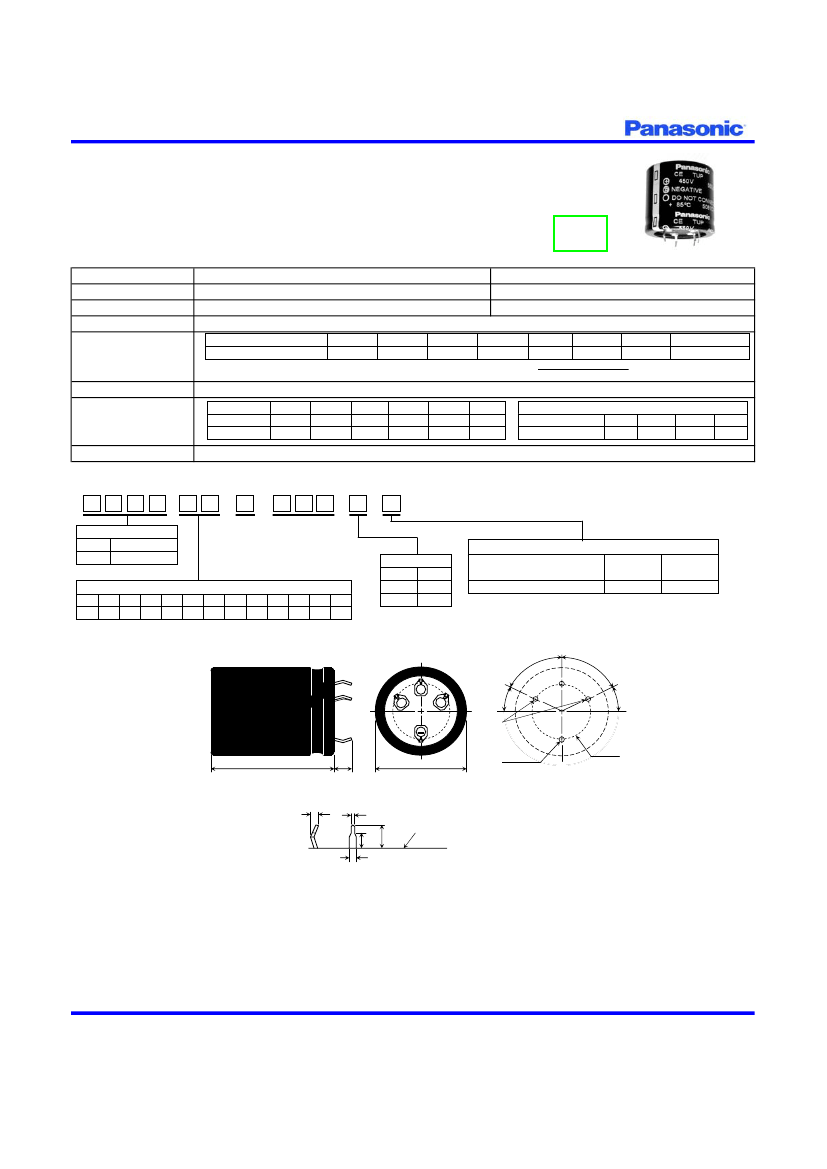

Aluminum Electrolytic Capacitors

T-UP Series

85°C, 3000 hours

4 terminal mounting provides stability and keyed polarity

Extended CV ratings

Can vent construction

Rated Working Voltage:

Operating Temperature:

Nominal Capacitance:

Capacitance Tolerance:

Dissipation Factor:

(120 Hz, +20°C)

Leakage Current:

Ripple Current Multipliers:

16 ~ 250 VDC

-40 ~ +85°C

1200~180000µF

± 20%

Working Voltage [V]:

Max. D.F. (%):

100

160 ~ 450

RoHS

Compliant

350 ~ 450 VDC

-25 ~ +85°C

330~2200µF

For capacitance values > 33000µF, add the value of:

(rated cap. [µF] - 33000 )

1000

3√CV (µA) max. after 5 minutes;

C = Capacitance in µF, V = WV

Frequency(Hz):

16~100WV:

160~450WV:

0.93

0.75

0.95

0.8

100~120

1.0

500

1.05

1.2

1.08

1.25

10k

1.15

1.4

Ripple Current Ambient Temperature Factors**

Temperature (°C): 85°C

70°C

60°C

Multiplier: 1.0

1.3

1.4

≤45°C

1.5

Endurance:

3000 hours at +85°C with maximum specified ripple current (see page 4)

**Use of temperature ripple current multipliers may limit life to the hours specified for the maximum operating temperature.

Part Number System

Series

Code

Capacitance

Code

Diameter Code

Dia.

Code

RoHS compliant PVC sleeve and top

plate is standard.

Terminals

Prefix

No. of Pins

ECET

Terminal Suffix Code

Terminal Type

6.3mm Snap-in (Standard):

Standard

Ratings

Extended

Ratings

Voltage Code

1K 2A 2C 2D 2E 2V 2G 2W

80 100 160 200 250 350 400 450

Dimensions in millimeters

4 Pin Mounting Style

60°

(+)

30°

Isolate

P.C. Pads

(-)

Circuit Board Mounting

Holes

Ø22.5±0.1

ØD

4 x Ø2.0±0.1

Pin Dimensions

2.0 max.

0.8

+0.2

-0.1

4.0

1.5±0.2

Top of Capacitor Body

6.3±1.0

T = 6.3mm Length Snap-in Terminal

Standard on 4 Pin Products

ECET2EP222EX Related Products

	ECET2EP222EX	ECET2EP272FX	ECET2EP122EX	ECET2GP102EA	ECET2GP102FA	ECET2EP272EA	ECET2DP182EX	ECET2GP681FA	ECET2EP392EA
Description	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 2200uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 2700uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 1000uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 1000uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 2700uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 680uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 3900uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	2200 µF	2700 µF	1200 µF	1000 µF	1000 µF	2700 µF	1800 µF	680 µF	3900 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	35 mm	40 mm	35 mm	35 mm	40 mm	35 mm	35 mm	40 mm	35 mm
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
ESR	90 mΩ	74 mΩ	83 mΩ	199 mΩ	199 mΩ	74 mΩ	60 mΩ	268 mΩ	51 mΩ
length	63 mm	63 mm	40 mm	80 mm	63 mm	80 mm	40 mm	50 mm	105 mm
Manufacturer's serial number	T-UP	T-UP	T-UP	T-UP	T-UP	T-UP	T-UP	T-UP	T-UP
negative tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-25 °C	-25 °C	-40 °C	-40 °C	-25 °C	-40 °C
Package form	Snap-in	Snap-in	Snap-in	Snap-in	Snap-in	Snap-in	Snap-i	Snap-i	Snap-in
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	250 V	250 V	250 V	400 V	400 V	250 V	200 V	400 V	250 V
ripple current	4700 mA	5810 mA	4650 mA	3420 mA	4160 mA	5630 mA	6050 mA	3380 mA	7470 mA
series	ECE-TP	ECE-TP	ECE-TP	ECE-TP	ECE-TP	ECE-TP	ECE-TP	ECE-TP	ECE-TP
Is it lead-free?	Lead free	Lead free	-	Lead free	Lead free	Lead free	-	Lead free	-
Maker	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	-
leakage current	2.22486 mA	2.46475 mA	-	1.89737 mA	1.89737 mA	2.46475 mA	-	1.56461 mA	2.96226 mA
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	-	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	-	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
surface mount	NO	NO	-	NO	NO	NO	-	NO	NO
Delta tangent	0.15	0.15	-	0.15	0.15	0.15	-	0.15	0.15
Terminal shape	SNAP-IN	SNAP-IN	-	SNAP-IN	SNAP-IN	SNAP-IN	-	SNAP-IN	SNAP-IN
