TS(X)88915TCWD/T70 datasheet, PDF

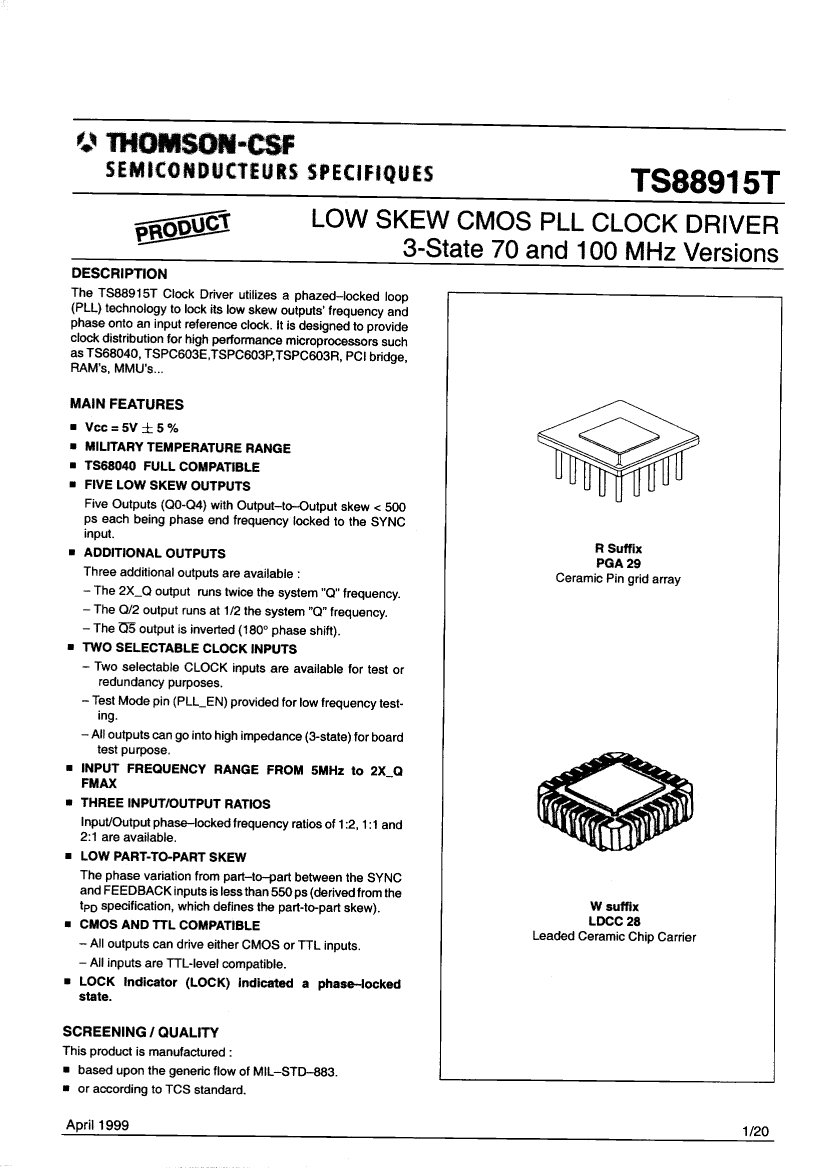

TS(X)88915TCWD/T70: DescriptionIC PLL BASED CLOCK DRIVER, 7 TRUE OUTPUT(S), 1 INVERTED OUTPUT(S), CQCC28, Clock Driver; Categorylogic logic; File Size886KB，20 Pages; ManufacturerThales Group

Download Datasheet Parametric View All

TS(X)88915TCWD/T70 Overview

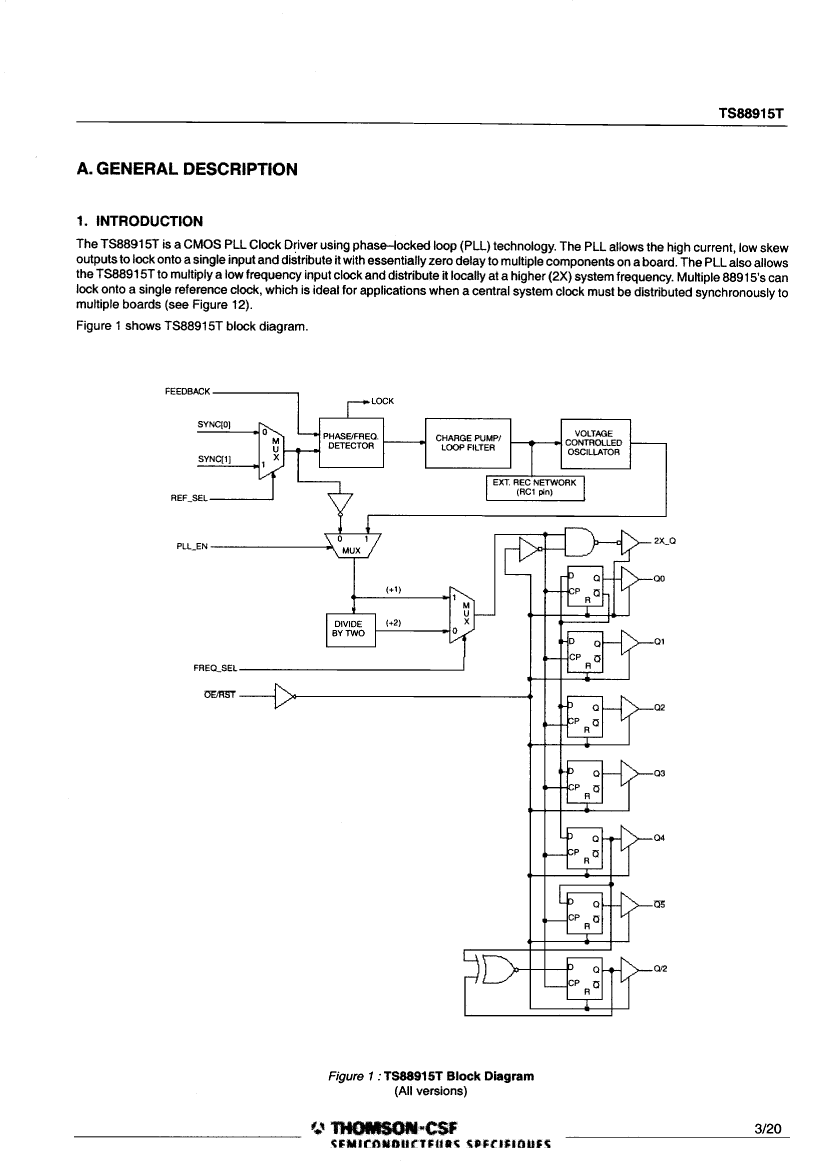

IC PLL BASED CLOCK DRIVER, 7 TRUE OUTPUT(S), 1 INVERTED OUTPUT(S), CQCC28, Clock Driver

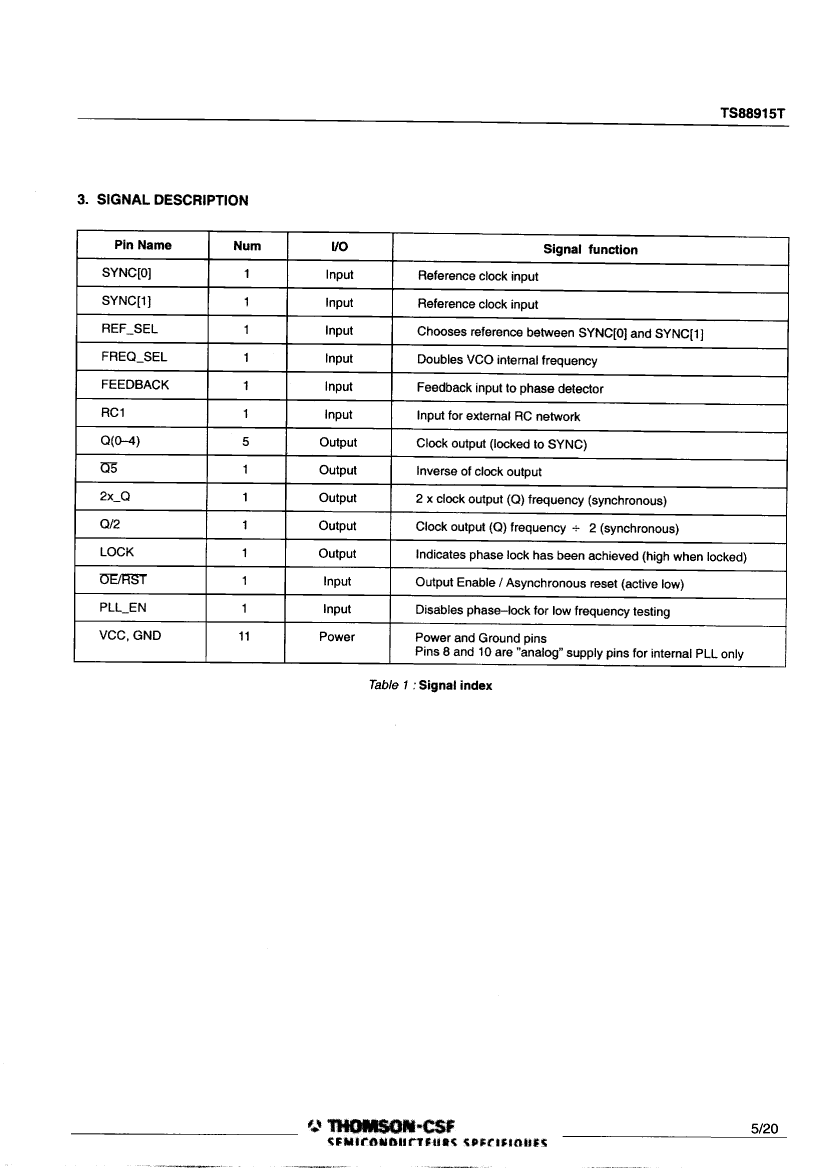

Parameter Name	Attribute value
Maker	Thales Group
package instruction	,
Reach Compliance Code	unknown
Input adjustment	MUX
JESD-30 code	S-CQCC-J28
Logic integrated circuit type	PLL BASED CLOCK DRIVER
Number of functions	1
Number of inverted outputs	1

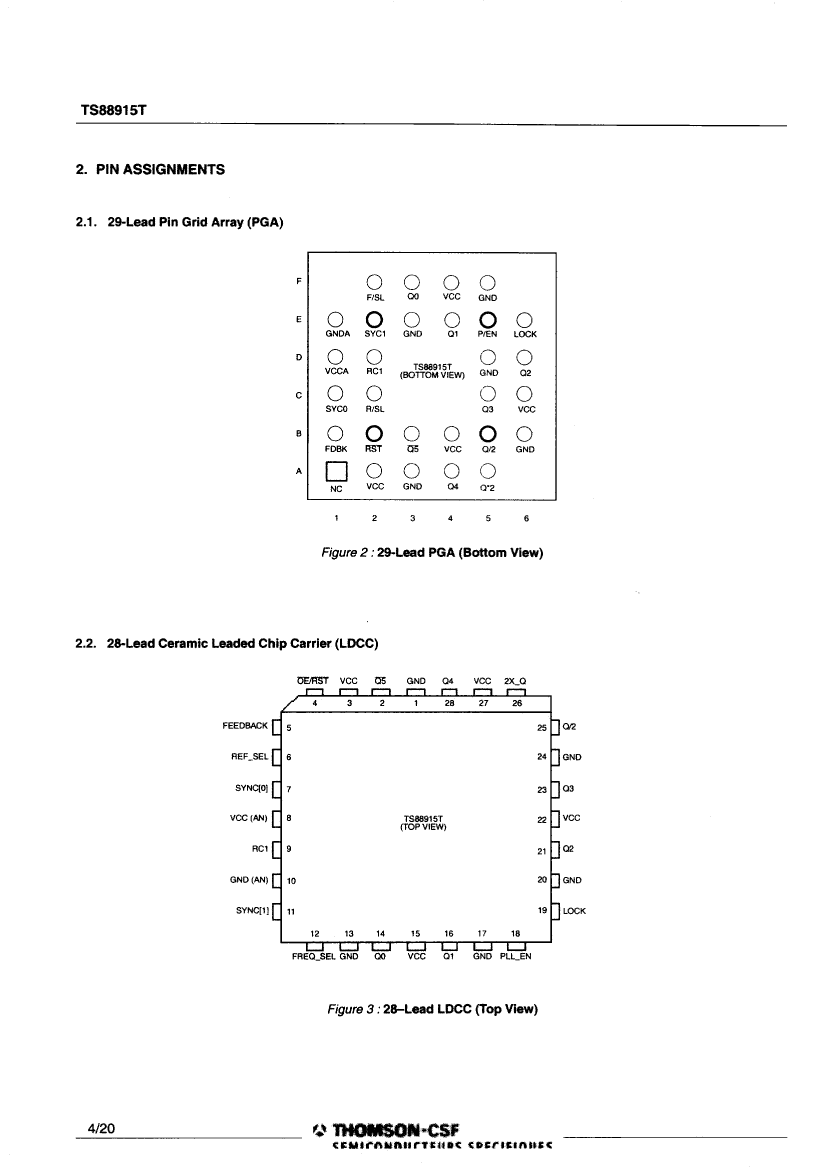

Number of terminals	28
Actual output times	7
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.75 ns
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal location	QUAD
minfmax	70 MHz
