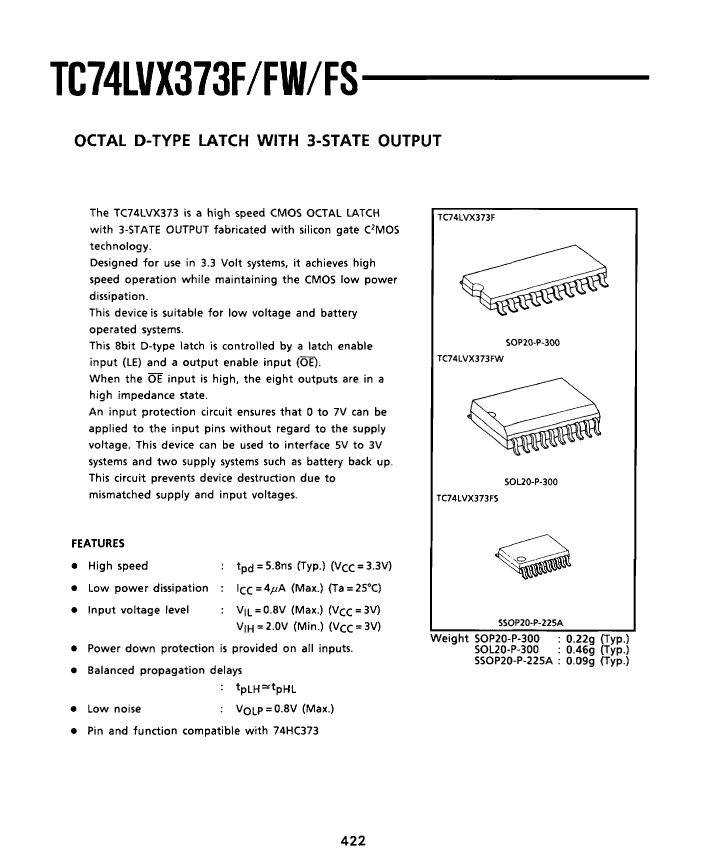

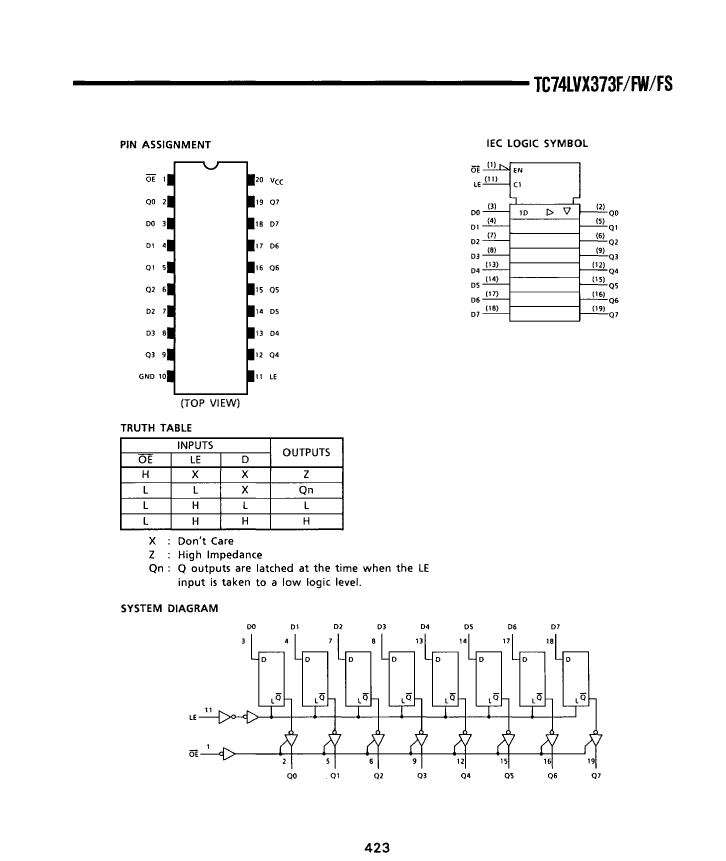

IC LV/LV-A/LVX/H SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, 0.300 INCH, EIAJ TYPE2, PLASTIC, SOP-20, Bus Driver/Transceiver

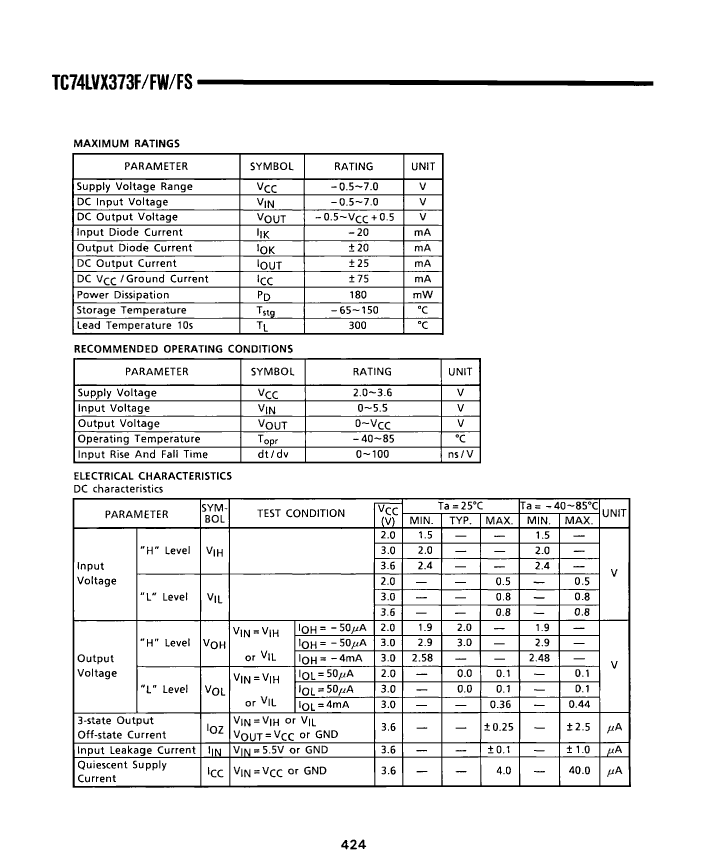

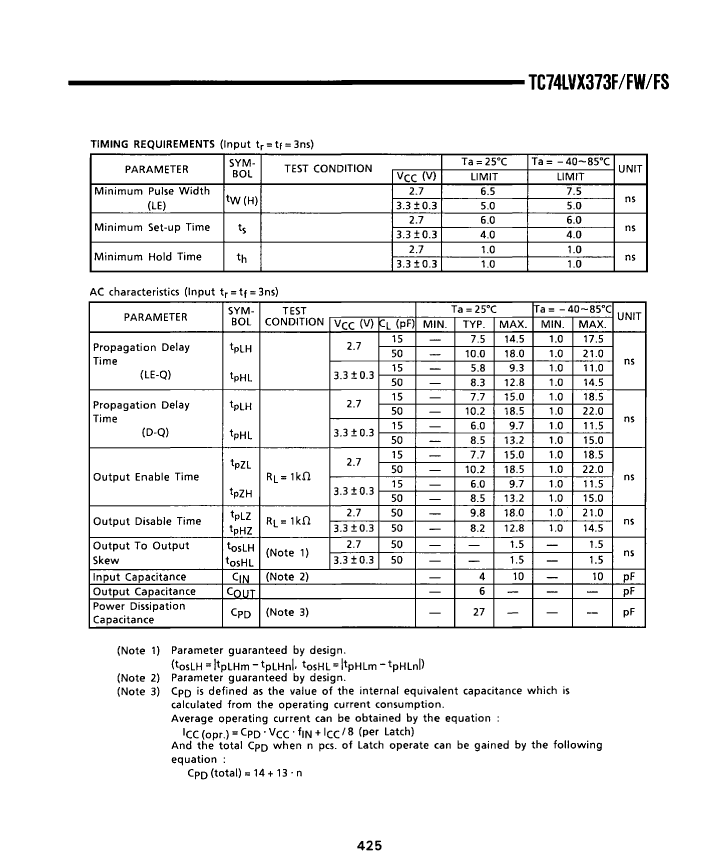

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Toshiba Semiconductor |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| series | LV/LV-A/LVX/H |
| JESD-30 code | R-PDSO-G20 |
| JESD-609 code | e0 |
| length | 12.8 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 240 |
| propagation delay (tpd) | 14.5 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.8 mm |
| Maximum supply voltage (Vsup) | 3.6 V |
| Minimum supply voltage (Vsup) | 2 V |
| Nominal supply voltage (Vsup) | 3.3 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | TIN LEAD |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 5.3 mm |
| TC74LVX373FEL | TC74LVX373FWEL | TC74LVX373FWELP | TC74LVX373FELP | |
|---|---|---|---|---|
| Description | IC LV/LV-A/LVX/H SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, 0.300 INCH, EIAJ TYPE2, PLASTIC, SOP-20, Bus Driver/Transceiver | IC LV/LV-A/LVX/H SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, 0.300 INCH, PLASTIC, SOP-20, Bus Driver/Transceiver | IC LV/LV-A/LVX/H SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, 0.300 INCH, PLASTIC, SOP-20, Bus Driver/Transceiver | IC LV/LV-A/LVX/H SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, 0.300 INCH, EIAJ TYPE2, PLASTIC, SOP-20, Bus Driver/Transceiver |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Maker | Toshiba Semiconductor | Toshiba Semiconductor | Toshiba Semiconductor | Toshiba Semiconductor |
| Parts packaging code | SOIC | SOIC | SOIC | SOIC |
| package instruction | SOP, | 0.300 INCH, PLASTIC, SOP-20 | 0.300 INCH, PLASTIC, SOP-20 | 0.300 INCH, EIAJ TYPE2, PLASTIC, SOP-20 |
| Contacts | 20 | 20 | 20 | 20 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| series | LV/LV-A/LVX/H | LV/LV-A/LVX/H | LV/LV-A/LVX/H | LV/LV-A/LVX/H |
| JESD-30 code | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 |
| length | 12.8 mm | 12.8 mm | 12.8 mm | 12.8 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 240 | NOT SPECIFIED | NOT SPECIFIED | 240 |
| propagation delay (tpd) | 14.5 ns | 14.5 ns | 14.5 ns | 14.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.8 mm | 2.7 mm | 2.7 mm | 1.8 mm |
| Maximum supply voltage (Vsup) | 3.6 V | 3.6 V | 3.6 V | 3.6 V |
| Minimum supply voltage (Vsup) | 2 V | 2 V | 2 V | 2 V |
| Nominal supply voltage (Vsup) | 3.3 V | 3.3 V | 3.3 V | 3.3 V |
| surface mount | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 5.3 mm | 7.5 mm | 7.5 mm | 5.3 mm |
