FP7279PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP7279PM

FP7279PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size76KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP7279PM Overview

RF AMPLIFIER MODEL

FP7279PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	12.5 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	300 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

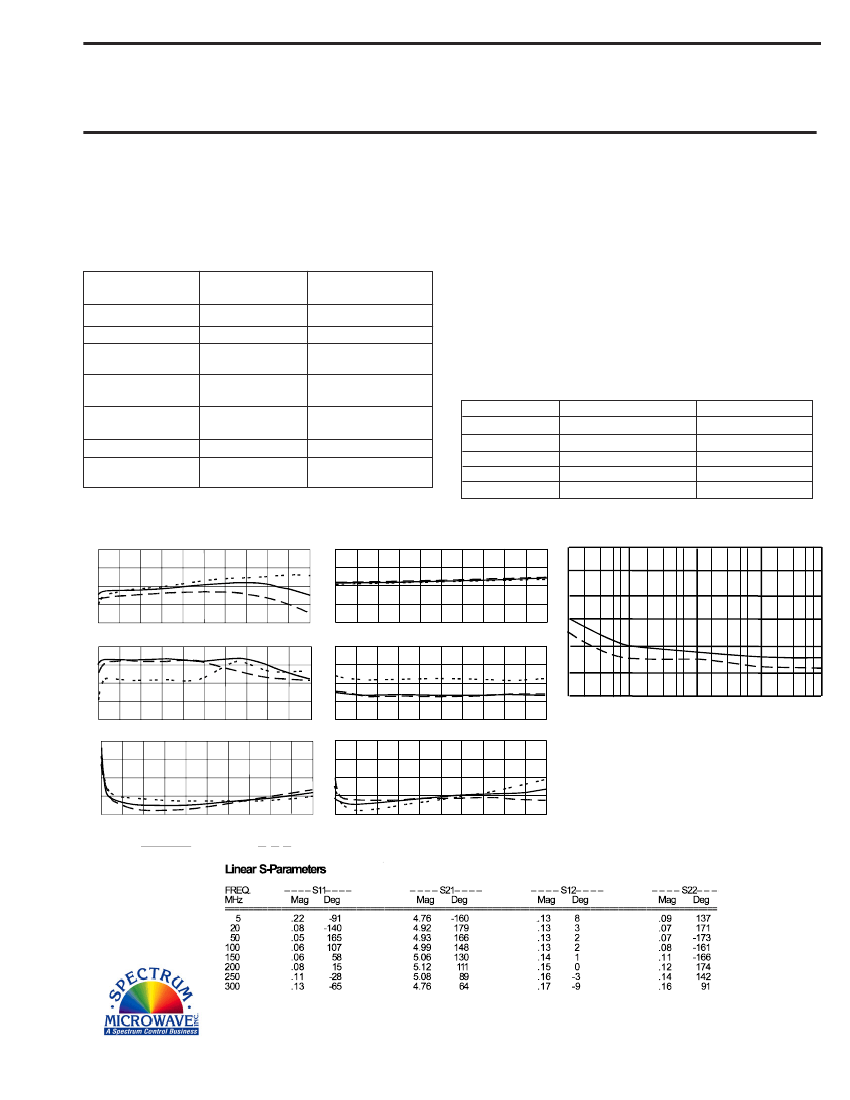

RF AMPLIFIER

MODEL

TM7279PM

Features

Superior Phase Noise Performance

High Output Power: +23 dBm Typical

High Third Order Intercept: +36 dBm Typical

Operating Temp. -55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM7279PM, 4 Pin TO-8 (T4)

TN7279PM, 4 Pin Surface Mount (SM3)

FP7279PM, 4 Pin Flatpack (FP4)

BX7279PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ...... +52 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +46 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +36 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +18 dBm

Short Term RF Input Power ............. 50 mW (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Specifications

CHARACTERISTIC

Frequency (MHz)

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

5 -300 MHz

14.0

+23.0

-15.5

<1.5:1

<4.5

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5 -300 MHz

12.5 Min.

+21.0 Min.

-14.5 Max.

2.0:1 Max.

6.0 Max.

+15

95 Max.

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-165

-175

-178

Guarantee (min.)

-160

-170

-172

-174

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

+25

+24

+23

+22

+21

Start

2.0

1.5

1.0

Start

5 MHz

Stop 300 MHz

Start 5 MHz

Stop 300 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Start

2.0

1.5

Reverse Isolation (dB)

-130

-140

-150

-160

Phase Noise (dBc/Hz)

5 MHz

Stop 300 MHz

1 dB Comp. (dBm)

Noise Figure (dB)

-170

-180

-190

100

10K

100K

Start 5 MHz

Stop 300 MHz

_________Guarantee __ __ __ __Typical

Input VSWR

Output VSWR

5 MHz

Stop 300 MHz

1.0

Start 5 MHz

Stop 300 MHz

Agilent ES5500 System

Residual Phase Noise Test Conditions:

Carrier Frequency: 100 MHz

Power Output +23 dBm

Temperature: 25

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

3/31/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP7279PM Related Products

	FP7279PM	BX7279PM	TM7279PM	TN7279PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	12.5 dB	12.5 dB	12.5 dB	12.5 dB
Maximum input power (CW)	18 dBm	18 dBm	18 dBm	18 dBm
Maximum operating frequency	300 MHz	300 MHz	300 MHz	300 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	2	2
Base Number Matches	1	1	1	1
