FP7282 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP7282

FP7282: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size72KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP7282 Overview

RF AMPLIFIER MODEL

FP7282 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	MODULE,4LEAD(UNSPEC)
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	21 dB
Maximum input power (CW)	10 dBm
Number of functions	1
Number of terminals	4
Maximum operating frequency	250 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	MODULE,4LEAD(UNSPEC)
power supply	15 V
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum slew rate	50 mA
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

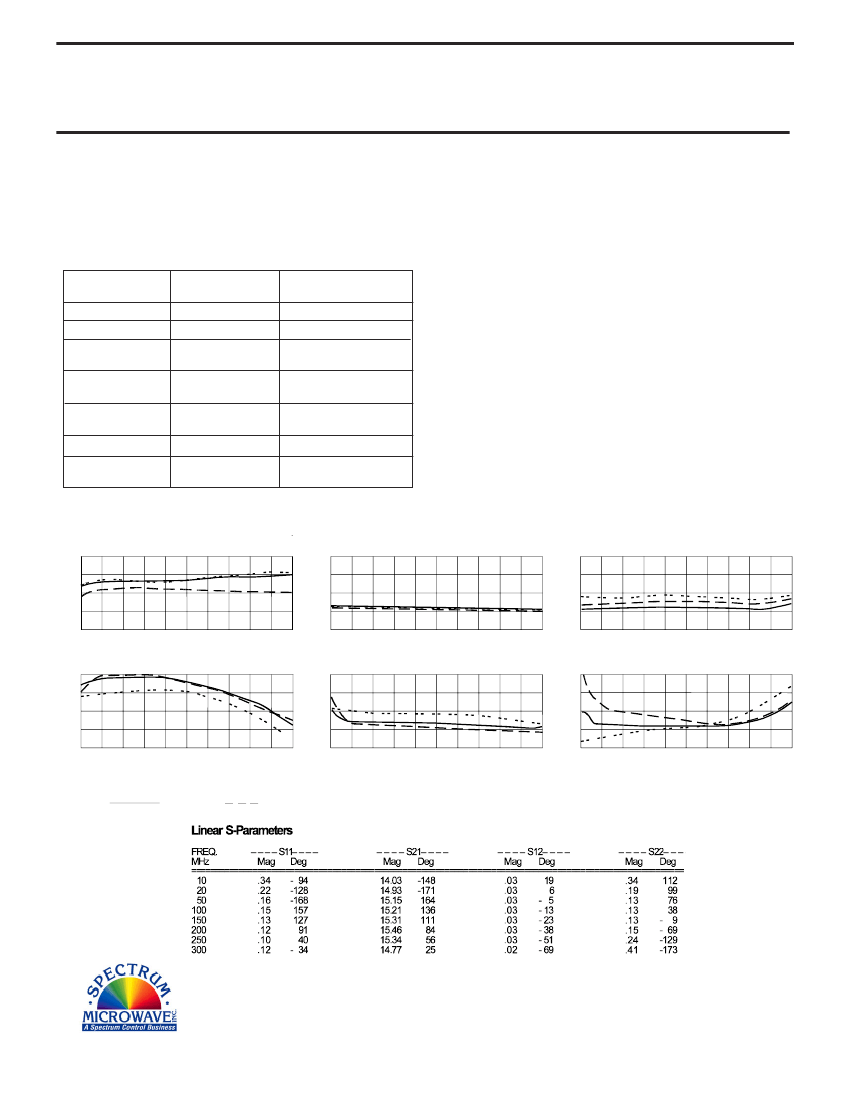

RF AMPLIFIER

MODEL

TM7282

Features

High Output Power: +21 dBm Typical

High Gain: 23.5 dB Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM7282, 4 Pin TO-8 (T4)

TN7282, 4 Pin Surface Mount (SM3)

FP7282, 4 Pin Flatpack (FP4)

BX7282, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point....... +43 dBm (Typ.)

Second Order Two Tone Intercept Point........ +38 dBm (Typ.)

Third Order Two Tone Intercept Point............ +34 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

20-250 MHz

23.5

+21

-28

<1.5:1

4.0

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

20-250 MHz

21.0 Min.

+18.0 Min.

-27 Max.

2.0:1 Max.

2.3:1 Max.

5.0 Max.

+15 Min.

50 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 20 MHz

Stop 250 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Noise Figure (dB)

Start 20 MHz

Stop 250 MHz

Start 20 MHz

Stop 250 MHz

+22

+21

+20

+19

+18

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 20 MHz

Stop 250 MHz

Start 20 MHz

Stop 250 MHz

Start 20 MHz

Stop 250 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

10/25/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP7282 Related Products

	FP7282	BX7282	TM7282	TN7282
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	21 dB	21 dB	21 dB	21 dB
Maximum input power (CW)	10 dBm	10 dBm	10 dBm	10 dBm
Maximum operating frequency	250 MHz	250 MHz	250 MHz	250 MHz
Minimum operating frequency	20 MHz	20 MHz	20 MHz	20 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
package instruction	MODULE,4LEAD(UNSPEC)	-	T4, TO-8, 4 PIN	MODULE,4LEAD,.45SQ
Number of functions	1	-	1	1
Number of terminals	4	-	4	4
Package body material	METAL	-	METAL	METAL
Encapsulate equivalent code	MODULE,4LEAD(UNSPEC)	-	CAN4,.3	MODULE,4LEAD,.45SQ
power supply	15 V	-	15 V	15 V
Maximum slew rate	50 mA	-	50 mA	50 mA
