FP7347PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP7347PM

FP7347PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size71KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP7347PM Overview

RF AMPLIFIER MODEL

FP7347PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT
Gain	12.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	300 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM7347PM

Features

Supeior Phase Noise Performance

Low Noise Figure: 2 dB Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

TYPICAL

Ta= 25 ºC

5-300 MHz

13.5

-22

<1.5:1

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5-300 MHz

12.5 Min.

Min.

Available as:

TM7347PM, 4 Pin TO-8 (T4)

TN7347PM, 4 Pin Surface Mount (SM3)

FP7347PM, 4 Pin Flatpack (FP4)

BX7347PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +50 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +44 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +32 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power .... 100 Milliwatts (1 Minute Max.)

Maximum Peak Power ..................... 0.2 Watt (3

µsec

Max)

Note: Care should always be taken to effectively ground the case of each unit.

-21 Max.

1.7:1 Max.

1.5:1 Max.

Max.

+15

50 Max.

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-160

-173

-175

-130

-140

-150

-160

Guarantee

-156

-170

-172

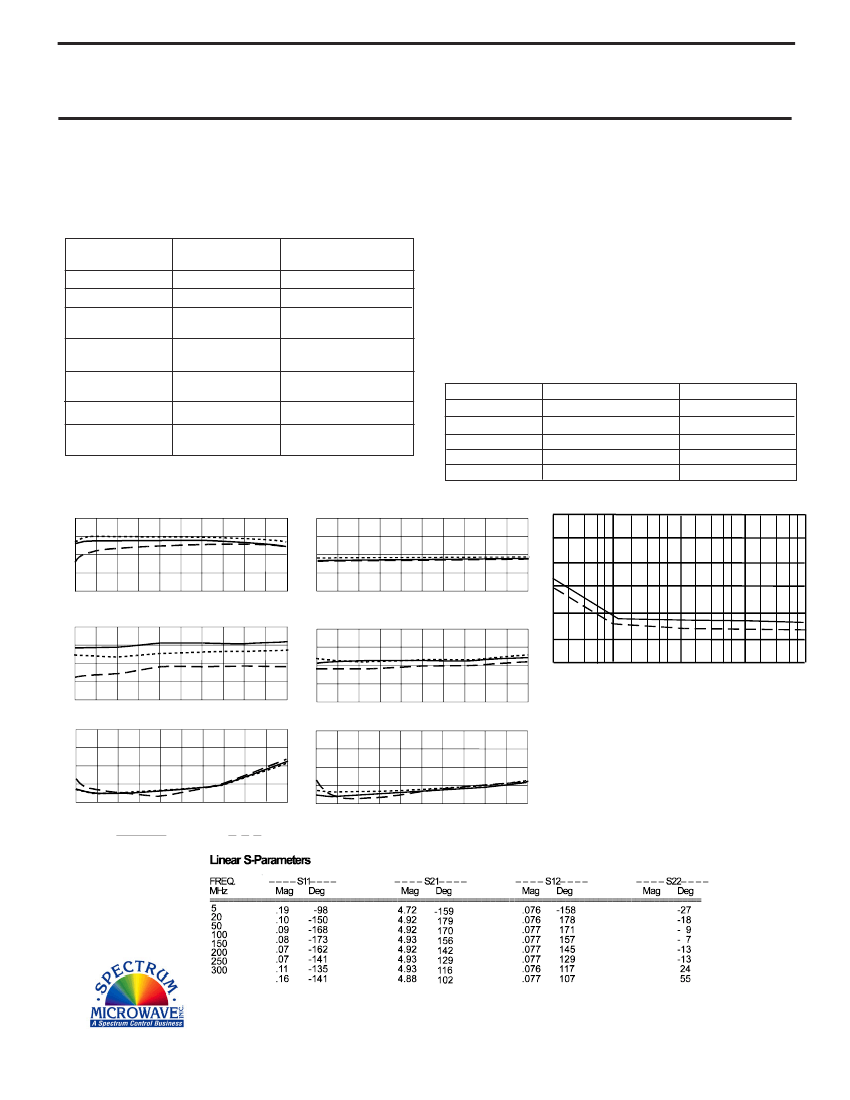

Typical Performance Data

+18

+17

+16

+15

+14

2.0

1.5

1.0

Start 5 MHz

Stop 300 MHz

Start 5 MHz

Stop 300 MHz

Gain (dB)

- 10

-20

- 30

-40

Start 5 MHz

Reverse Isolation (dB)

Phase Noise (dBc/Hz)

Stop 300 MHz

1 dB Comression (dBm)

Start 5 MHz

Noise Figure (dB)

-170

-180

-190

100

10k

100k

_________Guarantee __ __ __ __Typical

Stop 300 MHz

Input VSWR

2.0

1.5

1.0

Start 5 MHz

Stop 300 MHz

Start 5 MHz

Output VSWR

Stop 300 MHz

Residual Phase Noise Test Conditions

Carrier Frequency: 200 MHz

Power Output: +15 dBm

Temperature: 25 C

Agilent ES5500 System

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

3/31/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP7347PM Related Products

	FP7347PM	BX7347PM	TM7347PM	TN7347PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compliant	compli	compli
Other features	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	12.5 dB	12.5 dB	12.5 dB	12.5 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	300 MHz	300 MHz	300 MHz	300 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	1.5	1.5	1.5	1.5
Maker	API Technologies	API Technologies	-	API Technologies
