FP7379PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP7379PM

FP7379PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size117KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP7379PM Overview

RF AMPLIFIER MODEL

FP7379PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	12.5 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	200 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM7379PM

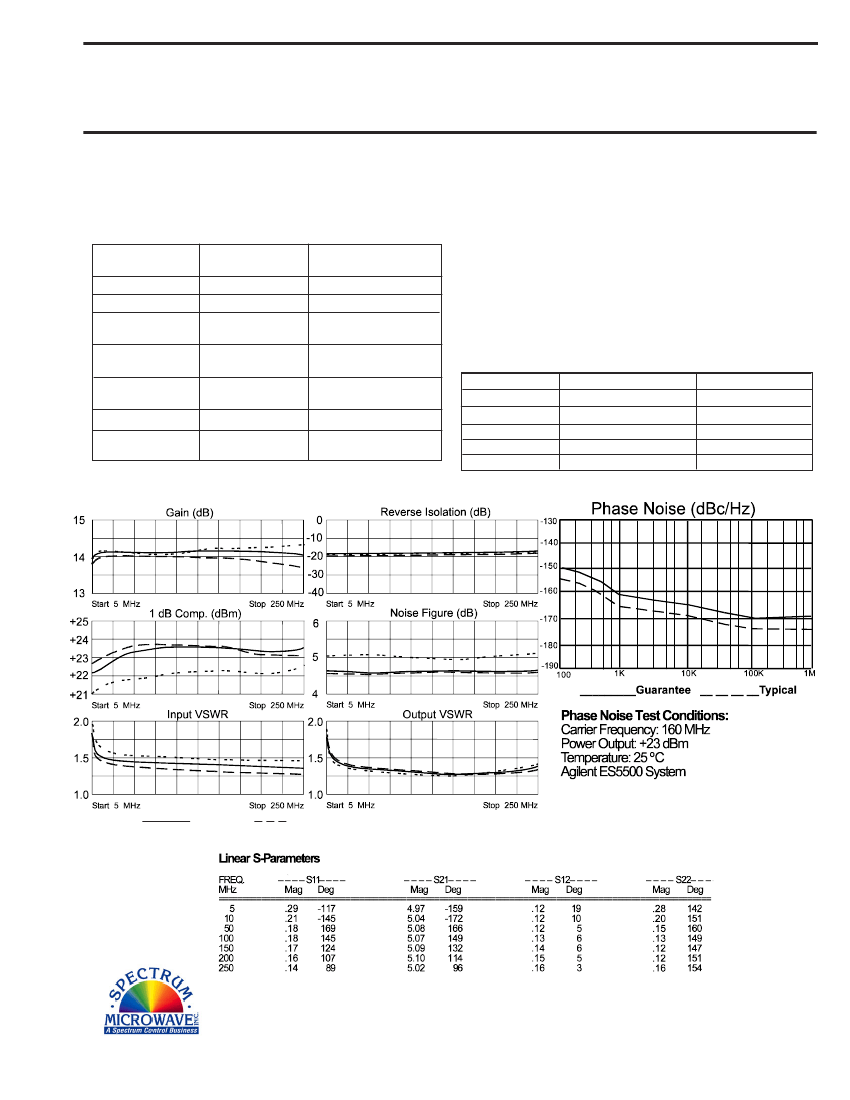

Features

Superior Phase Noise Performance

High Output Power: +23 dBm Typical

Operating Temp. -55 ºC

to +85

ºC

Available as:

TM7379PM, 4 Pin TO-8 (T4)

TN7379PM, 4 Pin Surface Mount (SM3)

FP7379PM, 4 Pin Flatpack (FP4)

BX7379PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +53 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +47 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +38 dBm (Typ.)

Maximum Ratings

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise Figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

5 - 250 MHz

+23

-16

<1.5:1

4.5

+12

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 200 MHz

12.5 Min.

+21.0 Min.

-15 Max.

2.0:1 Max.

6.0 Max.

+12

100 Max.

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +15 Volts

Continuous RF Input Power .................................. +18 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-155

-165

-169

-174

Guarantee (Min.)

-151

-161

-165

-170

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

3/31/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsyvlania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP7379PM Related Products

	FP7379PM	BX7379PM	TM7379PM	TN7379PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compli	compliant	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	12.5 dB	12.5 dB	12.5 dB	12.5 dB
Maximum input power (CW)	18 dBm	18 dBm	18 dBm	18 dBm
Maximum operating frequency	200 MHz	200 MHz	200 MHz	200 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	2	2
Base Number Matches	1	1	1	1
