FP9054 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP9054

FP9054: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size105KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP9054 Overview

RF AMPLIFIER MODEL

FP9054 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP4, FLATPACK-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	23 dB
Maximum input power (CW)	6 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM9054

Features

High Gain: 24 dB Typical

Operating Temp. - 55 ºC to + 85 ºC

Low +5 Volt Supply

Environmental Screening Available

Available as:

TM9054, 4 Pin TO-8 (T4)

TN9054, 4 Pin Surface Mount (SM3)

FP9054, 4 Pin Flatpack (FP4)

BX9054,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point....... +44 dBm (Typ.)

Second Order Two Tone Intercept Point.........+38 dBm (Typ.)

Third Order Two Tone Intercept Point.............+24 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Gain Flatness (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25

ºC

5 - 1000 MHz

+/- 0.3

+11

-33

1.5:1

3.5

MIN/MAX

Ta = -55

ºC

to +85

ºC

10 - 1000 MHz

23 Min.

+/- 0.7 Max.

+9 Min.

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage ........................................................... + 8 Volts

Continuous RF Input Power .................................... +6 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

-28 Max.

2.0:1 Max.

4.5 Max.

46 Max.

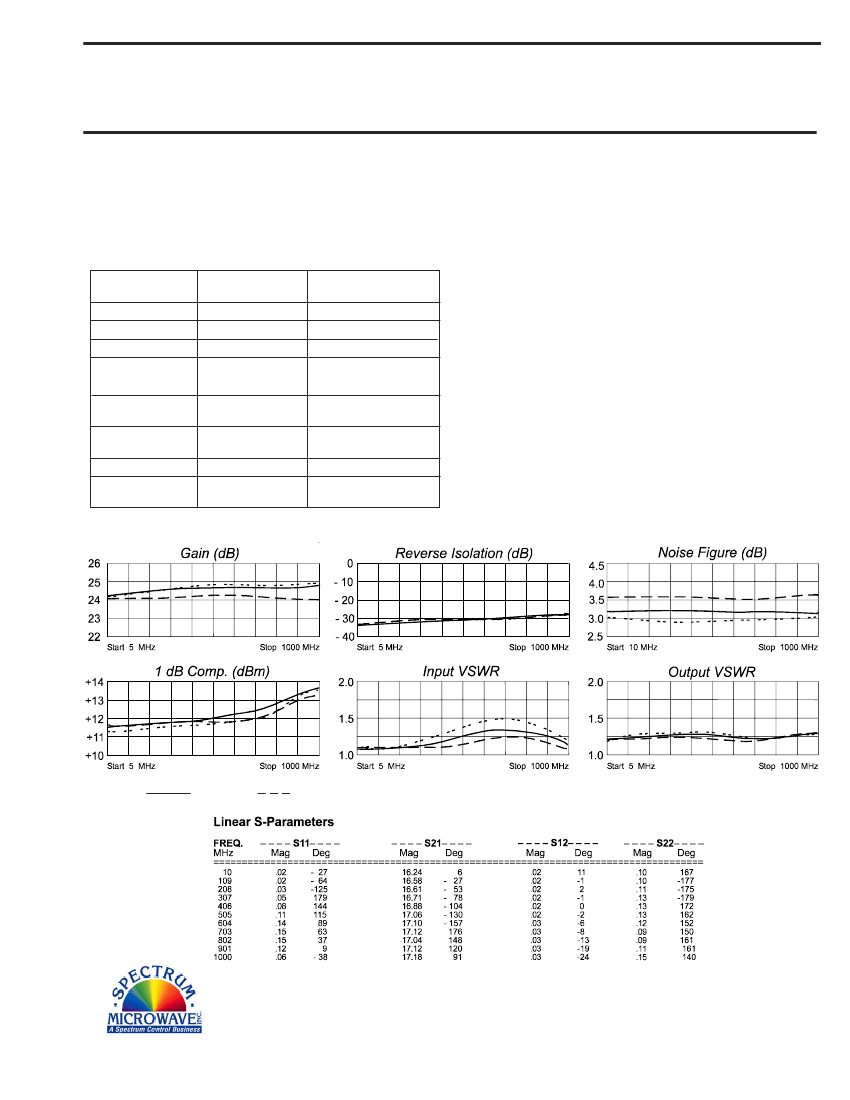

Typical Performance Data

Legend

+25º C

+85º C - - - - - -55º C

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

10/2/07

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9054 Related Products

	FP9054	BX9054	TM9054	TN9054
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	-
Reach Compliance Code	compli	compli	compli	-
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-
structure	COMPONENT	COAXIAL	COMPONENT	-
Gain	23 dB	23 dB	23 dB	-
Maximum input power (CW)	6 dBm	6 dBm	6 dBm	-
Maximum operating frequency	1000 MHz	1000 MHz	1000 MHz	-
Minimum operating frequency	10 MHz	10 MHz	10 MHz	-
Maximum operating temperature	85 °C	85 °C	85 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-
Maximum voltage standing wave ratio	2	2	2	-
