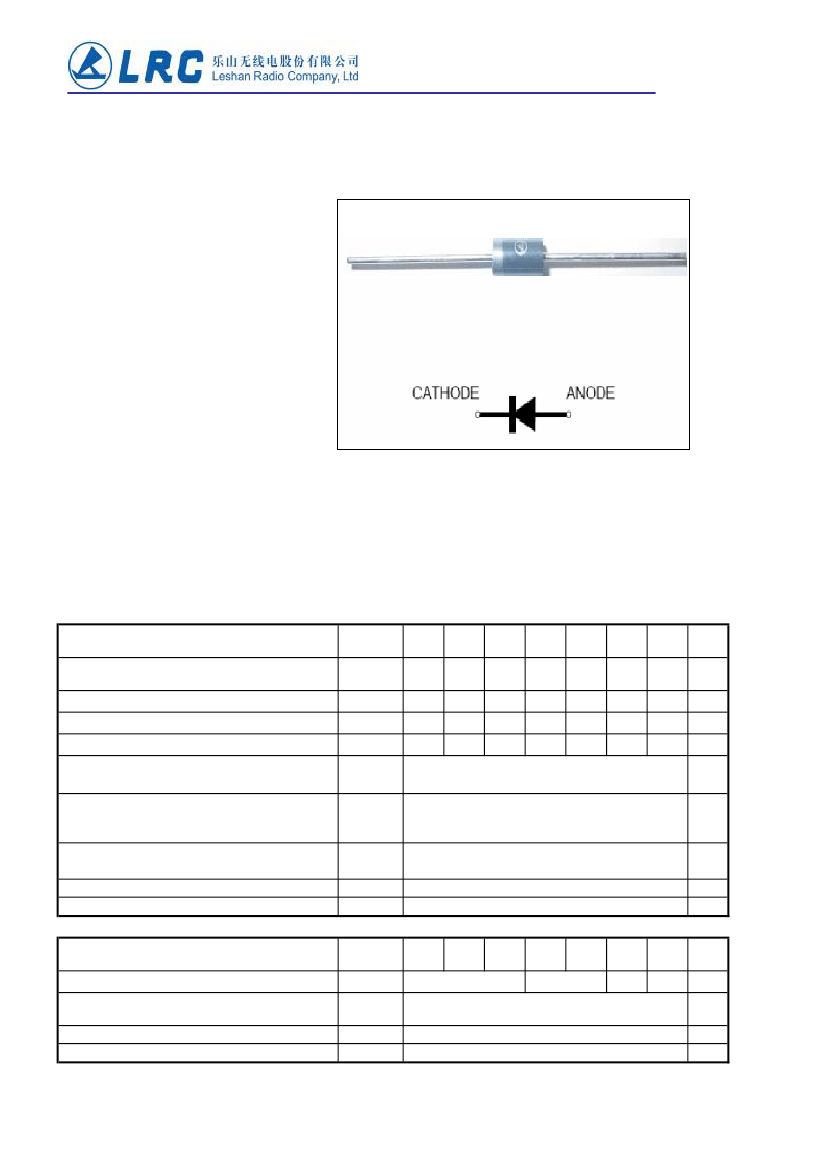

UGP10A thru UGP10K
Glass Passivated Junction Uitra Fast Rectifiers
Reverse Voltage 50 to 800V Forward Current 1.0A
FEATURES
* Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
* High temperature metallurgically
bonded construction
* Glass passivated chip
* Capable of meeting environmental standards
of MIL-S-19500
* 1.0 A operation at TA=55°C with no thermal runaway
* For use in high frequency rectifier circuits
* Ultrafast recovery time for high efficiency
* Typical IR less than 0.1µA
* High temperature soldering guaranteed:
350°C/10 seconds
* 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension

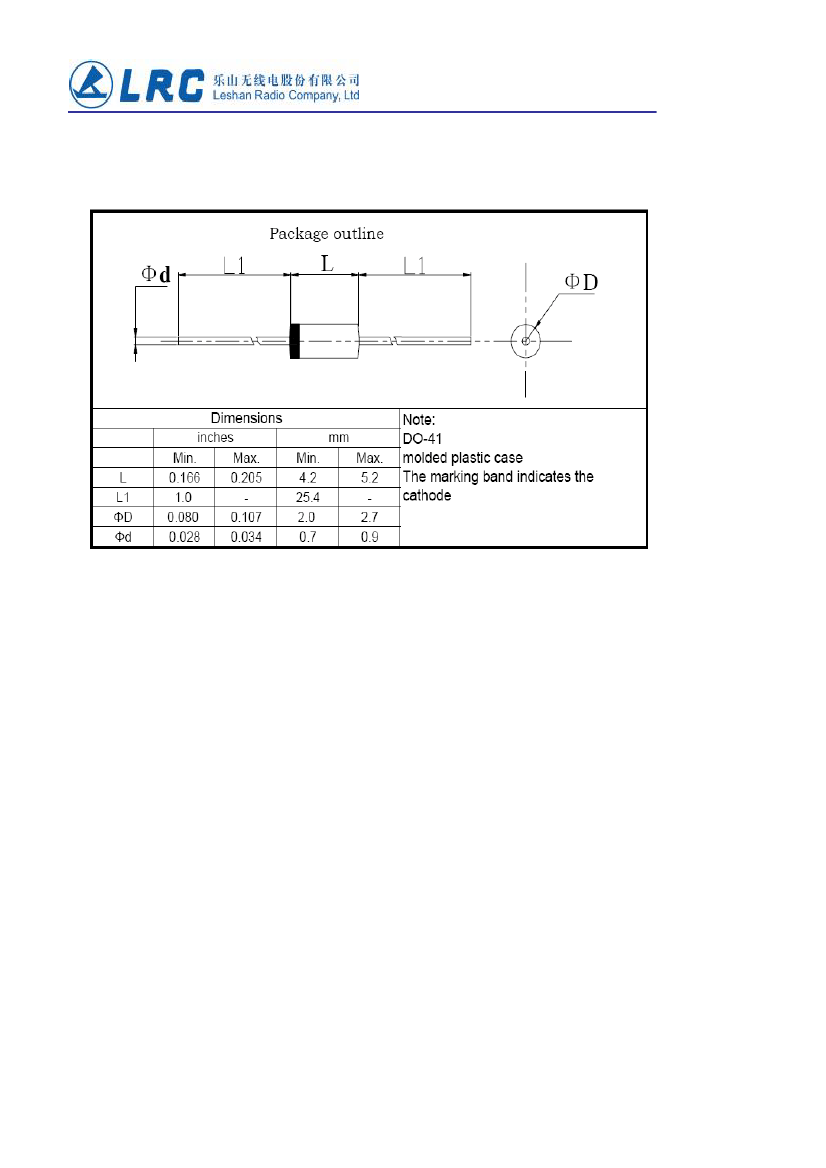

Mechanical Data
Case:
JEDEC DO-41, molded plastic over glass Die
Terminals:
Plated axial leads, solderable per
MIL-STD-750, Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:
0.011 oz., 0.284 g
Handling precautin:None
We declare that the material of product compliance
with ROHS requirements
1.Maximum & Thermal Characteristics Ratings
at 25°C ambient temperature unless otherwise specified.
Parameter Symbol
Making
Maximum repetitive peak reverse voltage
Maximum RSM voltage
Maximum DC blocking voltage
Maximum average forward rectified current
0.375" (9.5mm) lead length at T
A
= 55°C
Peak forward surge current 8.3ms single half sine-
wave superimposed on rated load (JEDEC
Method)
Maximum full load reverse current, full cycle
average,0.375"(9.5mm) lead lengths at T
A
= 55°C
Typical thermal resistance (Note 2)
V
RRM
V
RSM
V
DC
IF(AV)
symbol
UGP
10A
UGP
10A
50
35
50
UGP
10B
UGP
10B
100
70
100
UGP
10D
UGP
10D
200
140
200
UGP
10F
UGP
10F
300
210
300
1.0
UGP
10G
UGP
10G
400
280
400
UGP
10J
UGP
10J
600
420
600
UGP
10K
UGP
10K
800
560
800
Unit
V
V
V
A
I
FSM
IR(AV)
RθJA
30
A
µA
°C/W
°C
UGP
10J
1.7
UGP
10K
2.2
100
55
–50
to +150
UGP
10A
UGP
10B
0.95
UGP
10D
UGP
10F
5.0
100
35
15
UGP
10G
Operating junction and storage temperature range TJ, TSTG
Electrical Characteristics Ratings
at 25°C ambient temperature unless otherwise specified.
Parameter Symbol
Maximum instantaneous forward voltage at 1.0A
Maximum DC reverse current TA = 25°C
at rated DC blocking voltage TA = 125°C
Typical reverse recovery time (Note 1)
Typical junction capacitance at 4.0V, 1MHz
symbol
V
F
IR
trr
CJ
Unit
V
µA
ns
PF
1.25
NOTES:
1. IF = 0.5A, IR = 1.0A, IRR = 0.25A
2. Thermal resistance from junction to ambient at 0.375” (9.5mm) lead length, P.C.B. mounted
UGP10A thru UGP10K

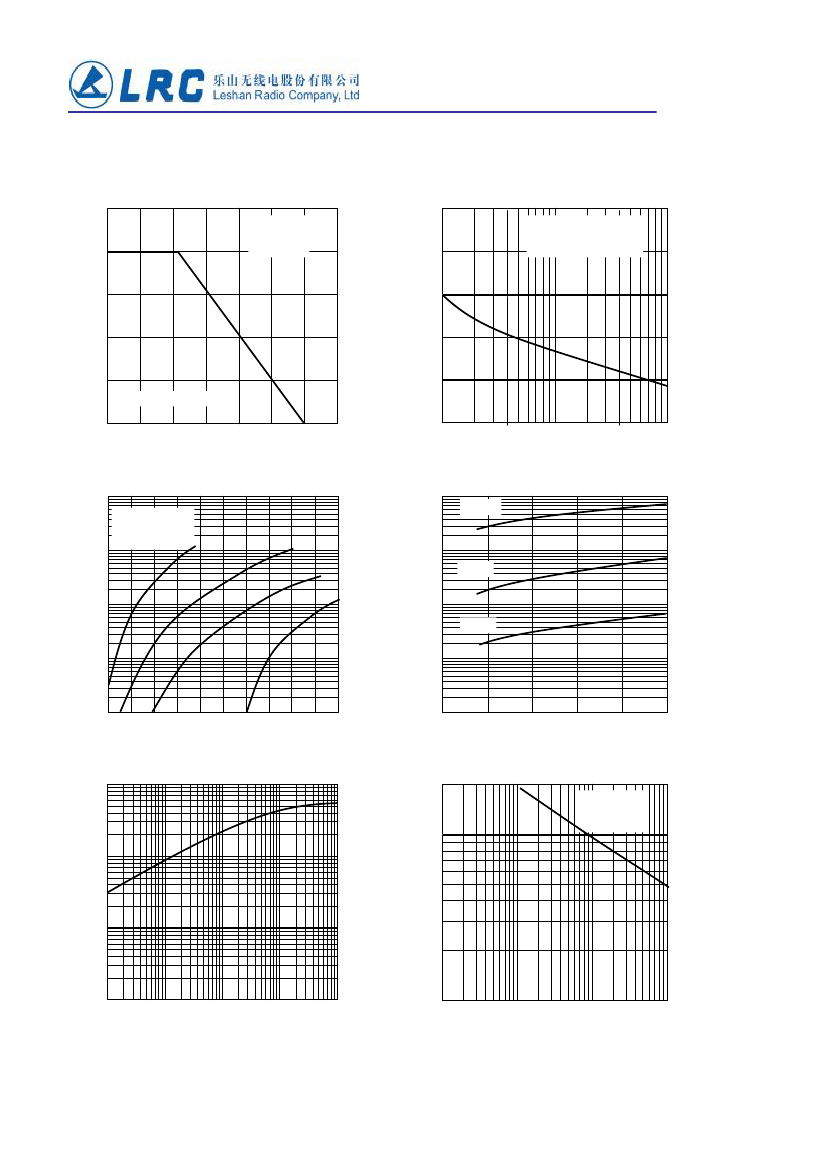

2.Ratings and Characteristic Curves
( TA = 25°C unless otherwise noted )
Fig. 1
–
Forward Current Derating Curve
Average Forward Rectified Current (A)
60 Hz
Resistive or
Inductive Load
Average Forward Rectified Current (A)
50
40
30
20
Fig. 2
–
Maximum Non-repetitive Peak
Forward Surge Current
TJ = TJ max
8.3ms Single Half Sine-wave
(JEDEC Method)
1.0
0.5
10
0
1
10
Number of Cycles at 60Hz
100
0.375" (9.5mm) Lead Length
0
0
25
50 75 100 125 150 175
Ambient Temperature,
°C
100
Instantaneous Forward Current (A)
Fig 3.
–
Typical Instantaneous Forward
Characteristics
TJ = 25°C
Pulse width = 300µs
1% Duty Cycle
Fig 4.
–
Typical Reverse Characteristics
10
Instantaneous Reverse Current (µA)
Tj=125℃
10
1.0
Tj=75℃
1.0
0.1
Tj=25℃
0.1
0.01
0.01
0.8
1.0
1.2
1.4
1.6
1.8
Instantaneous Forward Voltage (V)
0.001
0
20
40
60
80
100
Percent of Rated Peak Reverse Voltage (%)
Fig 6.
–
Typical Junction Capacitance
Transient thermal impedance(°C/W)
Junction Capacitance (pF)
100
Fig 5.
–typical
transient thermal
impedance
20
10
TJ = 25°C
f = 1.0 MHz
Vsig = 50mVp-p
10
1.0
0.1
0.01
0.1
1.0
10
t,Pulse duration,sec
100
1.0
0.1
1
10
Reverse Voltage (V)
