FP9115 Overview

RF AMPLIFIER MODEL

FP9115 Parametric

Parameter NameAttribute value
Reach Compliance Codecompli
Other featuresI/P POWER-MAX (PEAK)=27DBM
Characteristic impedance50 Ω
structureCOMPONENT
Gain13 dB
Maximum input power (CW)13 dBm
Maximum operating frequency1000 MHz
Minimum operating frequency5 MHz
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesWIDE BAND LOW POWER
Maximum voltage standing wave ratio2
Base Number Matches1

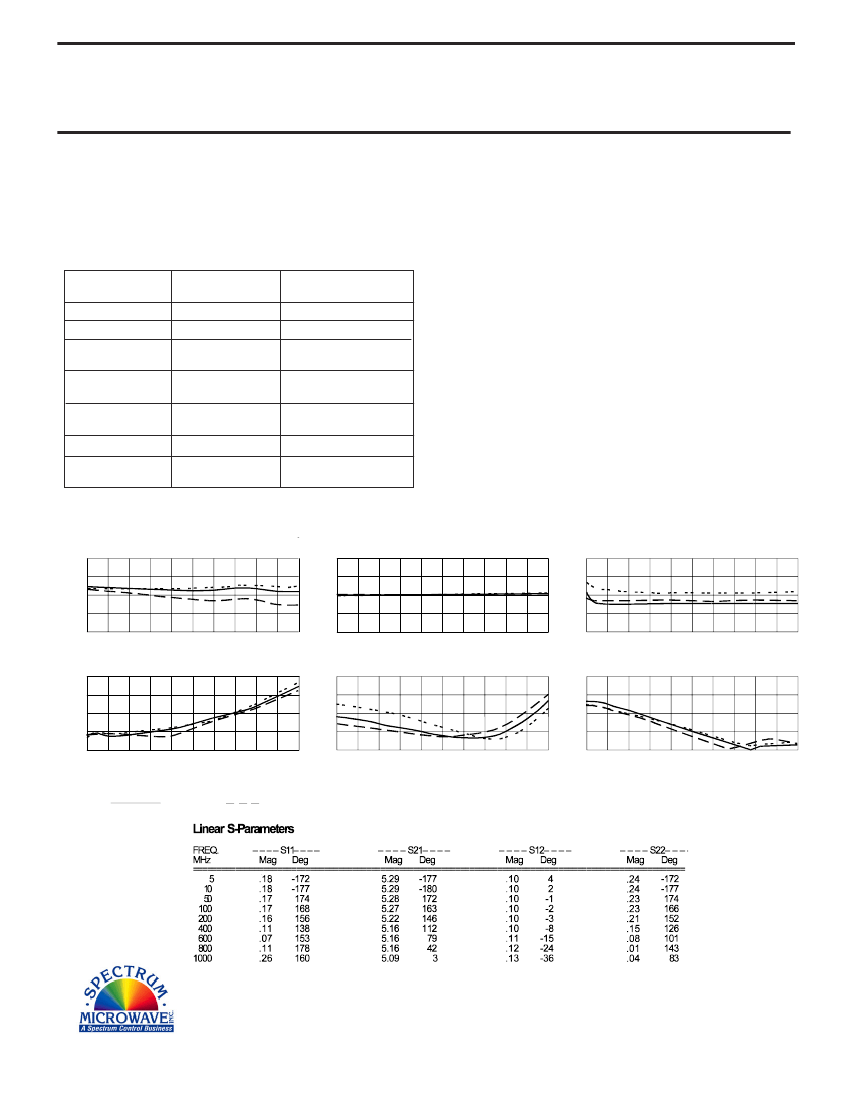

RF AMPLIFIER
MODEL
TM9115
Features
!
!
!
!
Medium Gain: 14.5 dB Typical
Medium Output Power: +9.5 dBm Typical
Operating Temp. - 55 ºC to +85 ºC
Environmental Screening Available
Available as:
TM9115, 4 Pin TO-8 (T4)
TN9115, 4 Pin Surface Mount (SM3)
FP9115, 4 Pin Flatpack (FP4)
BX9115,Connectorized Housing (H1)
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point........+38 dBm (Typ.)
Second Order Two Tone Intercept Point.........+32 dBm (Typ.)
Third Order Two Tone Intercept Point.............+23 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
TYPICAL
Ta= 25 ºC
5 - 1000 MHz
14.5
+9.5
-18
<1.5:1
<1.5:1
<4.0
+15
24
MIN/MAX
Ta = -55 ºC to +85 ºC
5 - 1000 MHz
13.0 Min.
+8.0 Min.
-17 Max.
2.0:1 Max.
2.0:1 Max.
5.5 Max.
+15
27 Max.
Maximum Ratings
Ambient Operating Temperature .............. -55ºC to + 100 ºC
Storage Temperature ............................... -62ºC to + 125 ºC
Case Temperature ................................................. + 125 ºC
DC Voltage ......................................................... + 18 Volts
Continuous RF Input Power ................................. + 13 dBm
Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)
Maximum Peak Power.................... 0.5 Watt (3
µsec
Max.)
Noise Figure (dB)
Power
Vdc
mA
Note: Care should always be taken to effectively ground the case of each unit.
Typical Performance Data
Gain (dB)
16
15
14
13
12
Start 5 MHz
Stop 1000 MHz
0
- 10
- 20
- 30
- 40
Reverse Isolation (dB)
6
5
4
3
2
Start 5 MHz
Stop 1000 MHz
Noise Figure (dB)
Start 5 MHz
Stop 1000 MHz
1 dB Comp. (dBm)
+16
+14
+12
+10
+ 8
Start 5 MHz
Stop 1000 MHz
Input VSWR
2.0
1.5
1.0
Start 5 MHz
Stop 1000 MHz
2.0
1.5
1.0
Start 5 MHz
Output VSWR
Stop 1000 MHz
Legend
+ 25 ºC
+ 85 ºC - - - - - - -55 ºC
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
07/09/04
www.spectrummicrowave.com
Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
