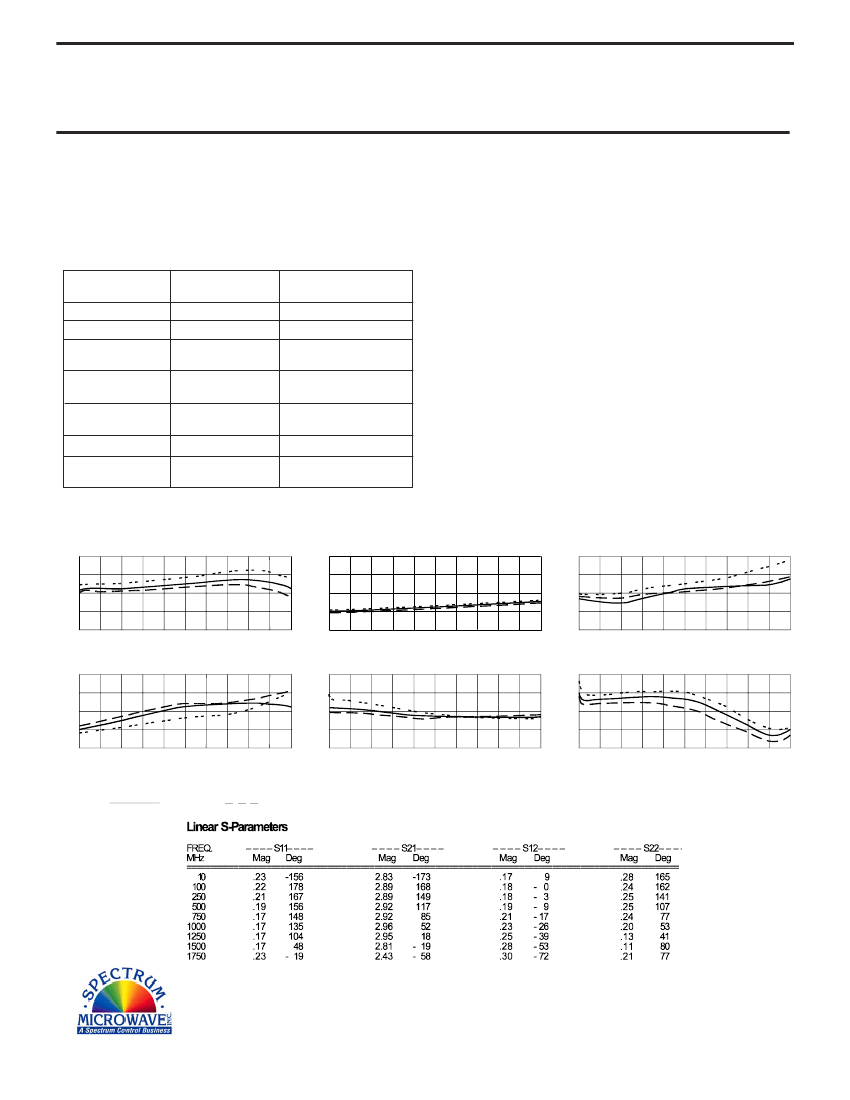

FP9127 Overview

RF AMPLIFIER MODEL

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM9127

Features

Medium Gain: 9 dB Typical

Medium Output Power: +16 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM9127, 4 Pin TO-8 (T4)

TN9127, 4 Pin Surface Mount (SM3)

FP9127, 4 Pin Flatpack (FP4)

BX9127,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+48 dBm (Typ.)

Second Order Two Tone Intercept Point.........+42 dBm (Typ.)

Third Order Two Tone Intercept Point.............+32 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

10 - 1500 MHz

+16

-11

<1.5:1

<1.75:1

<6.0

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 1500 MHz

8 Min.

+14 Min.

-10 Max.

2.0:1 Max.

8.0 Max.

+15

57 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Start 10 MHz

Stop 1500 MHz

Reverse Isolation (dB)

- 5

- 10

- 15

- 20

Start 10 MHz

Stop 1500 MHz

Noise Figure (dB)

Start 10 MHz

Stop 1500 MHz

1 dB Comp. (dBm)

+22

+20

+18

+16

+14

Start 10 MHz

Stop 1500 MHz

Input VSWR

2.0

1.5

1.0

Start 10 MHz

Stop 1500 MHz

Output VSWR

2.0

1.5

1.0

Start 10 MHz

Stop 1500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

07/13/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9127 Related Products

	FP9127	BX9127	TM9127	TN9127
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	-	compli	compli	compli
Other features	-	SMA-F, I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	-	COAXIAL	COMPONENT	COMPONENT
Gain	-	8 dB	8 dB	8 dB
Maximum input power (CW)	-	13 dBm	13 dBm	13 dBm
Maximum operating frequency	-	1500 MHz	1500 MHz	1500 MHz
Minimum operating frequency	-	10 MHz	10 MHz	10 MHz
Maximum operating temperature	-	85 °C	85 °C	85 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	-	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	-	2	2	2
