RF AMPLIFIER
MODEL
TM9183
Features
!
!
!
!
High Gain: 30 dB Typical
Low Noise Figure: 3 dB Typical
Operating Temp. -55 ºC to +85 ºC
Environmental Screening Available
Available as:
TM9183, 4 Pin TO-8LP
TN9183, 4 Pin Surface Mount (SM3)
FP9183, 4 Pin Flatpack (FP4)
BX9183, Connectorized Housing (H1)
Preliminary
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point ....... +56 dBm (Typ.)
Second Order Two Tone Intercept Point ........ +50 dBm (Typ.)
Third Order Two Tone Intercept Point ............ +30 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Gain Flatness (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
Noise Figure (dB)
Power
Vdc
mA
TYPICAL
Ta= 25 ºC
10 - 900 MHz
30*
+0.5
+16
-12
<1.4:1
<1.4:1
3
+5
73
MIN/MAX
Ta = -55 ºC to +85 ºC
10 - 800 MHz
28 Min.*
+0.9 Max.
+14.5 Min.
-11 Max.
1.9:1 Max.
1.9:1 Max.
4 Max.
+5
83 Max.
Maximum Ratings
Ambient Operating Temperature ................ -55ºC to +100 ºC
Storage Temperature .................................-62ºC to +125 ºC
Case Temperature .................................................. +125 ºC
DC Voltage ........................................................... +7 Volts
Continuous RF Input Power .................................... +8 dBm
Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)
Maximum Peak Power .................... 0.5 Watt (3
µsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.
* 0.5 dB lower above 600 MHz.

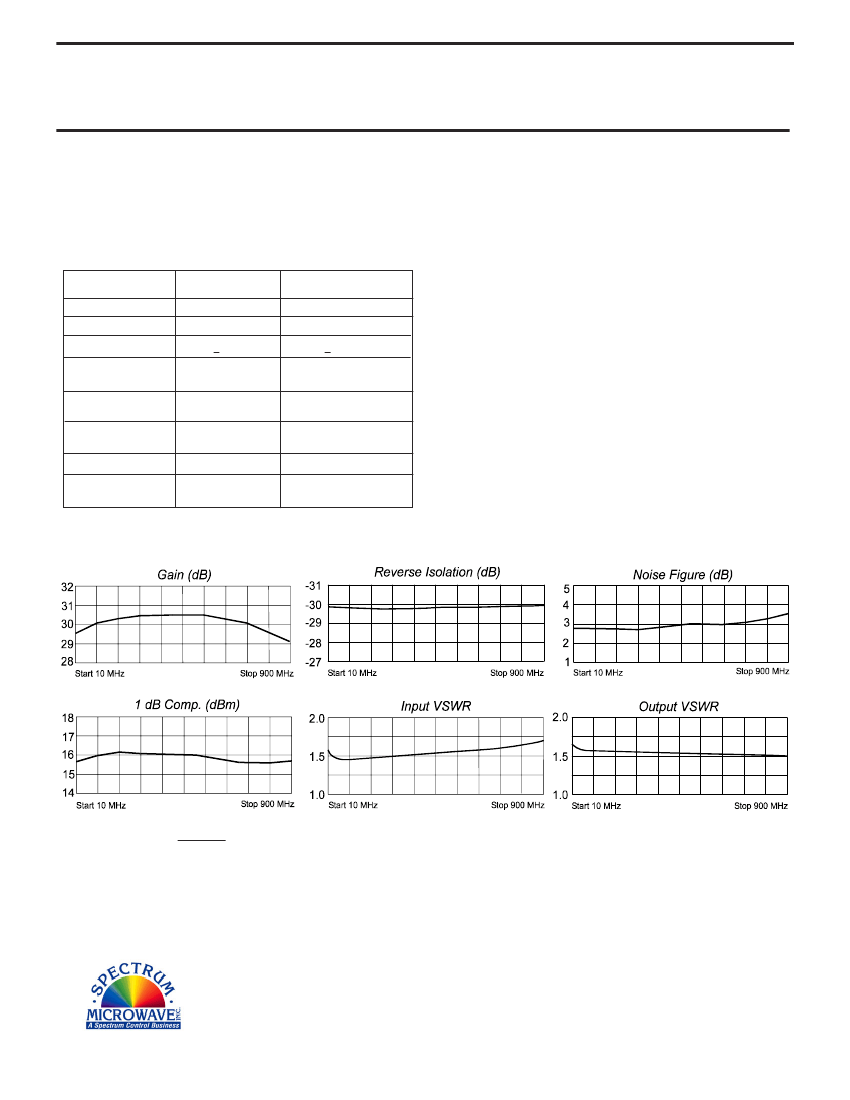

Typical Performance Data
Legend
+ 25 ºC
