HB1837C-L-000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HB1837C-L-000

HB1837C-L-000: DescriptionMASK ROM, 4KX8, 1375ns, CMOS, CQCC24; Categorystorage storage; File Size282KB，4 Pages; ManufacturerHughes Aircraft

Download Datasheet Parametric Compare View All

HB1837C-L-000 Overview

MASK ROM, 4KX8, 1375ns, CMOS, CQCC24

HB1837C-L-000 Parametric

Parameter Name	Attribute value
Maker	Hughes Aircraft
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	1375 ns
JESD-30 code	S-CQCC-N24
memory density	32768 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	24
word count	4096 words
character code	4000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	4KX8
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	6.5 V
Minimum supply voltage (Vsup)	4 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD

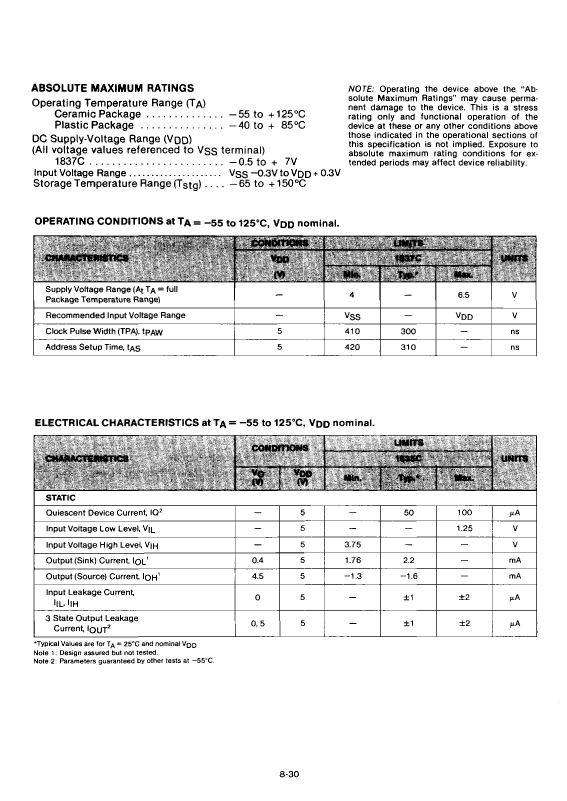

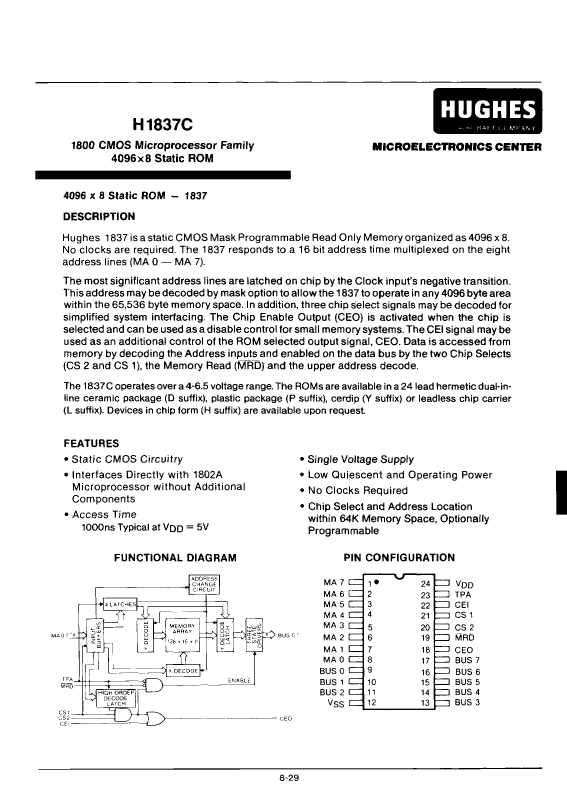

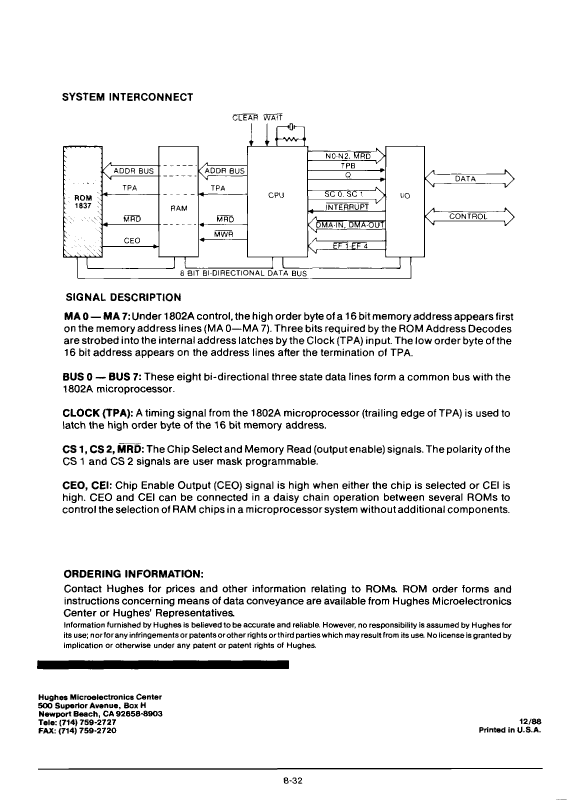

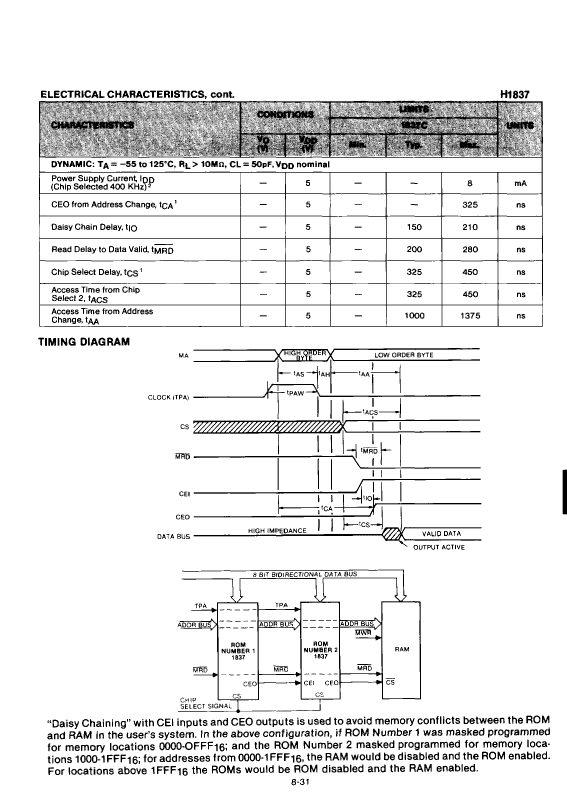

Preview

Download Datasheet

View All

HB1837C-L-000 Related Products

	HB1837C-L-000	HB1837C-Y-000	HI1837C-L-000	HB1837C-D-000	HI1837C-D-000	HI1837C-H-000	HI1837C-P-000	HI1837C-Y-000	HB1837C-H-000
Description	MASK ROM, 4KX8, 1375ns, CMOS, CQCC24	MASK ROM, 4KX8, 1375ns, CMOS, CDIP24	MASK ROM, 4KX8, 1375ns, CMOS, CQCC24	MASK ROM, 4KX8, 1375ns, CMOS, CDIP24	MASK ROM, 4KX8, 1375ns, CMOS, CDIP24	MASK ROM, 4KX8, 1375ns, CMOS	MASK ROM, 4KX8, 1375ns, CMOS, PDIP24	MASK ROM, 4KX8, 1375ns, CMOS, CDIP24	MASK ROM, 4KX8, 1375ns, CMOS
Maker	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	1375 ns	1375 ns	1375 ns	1375 ns	1375 ns	1375 ns	1375 ns	1375 ns	1375 ns
JESD-30 code	S-CQCC-N24	R-GDIP-T24	S-CQCC-N24	R-CDIP-T24	R-CDIP-T24	X-XUUC-N24	R-PDIP-T24	R-GDIP-T24	X-XUUC-N24
memory density	32768 bit	32768 bit	32768 bit	32768 bit	32768 bit	32768 bit	32768 bit	32768 bit	32768 bi
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24	24	24
word count	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words
character code	4000	4000	4000	4000	4000	4000	4000	4000	4000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	85 °C	125 °C	85 °C	85 °C	85 °C	85 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C	-55 °C
organize	4KX8	4KX8	4KX8	4KX8	4KX8	4KX8	4KX8	4KX8	4KX8
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	UNSPECIFIED
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	UNSPECIFIED	RECTANGULAR	RECTANGULAR	UNSPECIFIED
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	UNCASED CHIP	IN-LINE	IN-LINE	UNCASED CHIP
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V
Minimum supply voltage (Vsup)	4 V	4 V	4 V	4 V	4 V	4 V	4 V	4 V	4 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	NO	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD
Terminal location	QUAD	DUAL	QUAD	DUAL	DUAL	UPPER	DUAL	DUAL	UPPER
