TN9134 Overview

RF AMPLIFIER MODEL

TN9134 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	14 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	2000 MHz
Minimum operating frequency	100 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

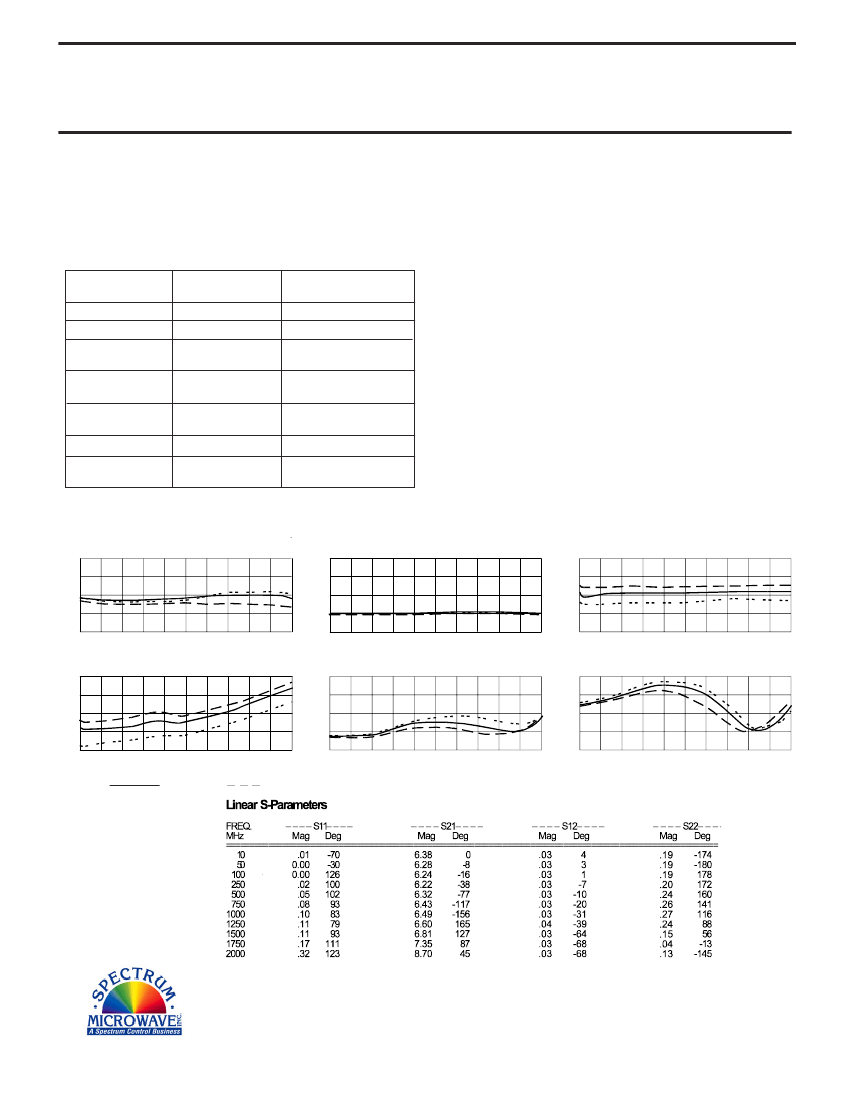

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM9134

Features

High Gain: 16.5 dB Gain Typical

Medium Output Power: +6 dBm Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM9134, 4 Pin TO-8 (T4)

TN9134, 4 Pin Surface Mount (SM3)

FP9134, 4 Pin Flatpack (FP4)

BX9134,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point....... +39 dBm (Typ.)

Second Order Two Tone Intercept Point....... + 33 dBm (Typ.)

Third Order Two Tone Intercept Point............ +16 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise Figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

10-2000 MHz

16.5

-28

<1.5:1

<1.75:1

<4.5

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

10-2000 MHz

14.0 Min.

+3.0 Min.

-27 Max.

<2.0:1 Max.

6.0 Max.

+15

40 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 10 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 10 MHz

Stop 2000 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Start 10 MHz

Stop 2000 MHz

Noise Figure (dB)

Start 10 MHz

Stop 2000 MHz

+11

+ 9

+ 7

+ 5

+ 3

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 10 MHz

Stop 2000 MHz

Start 10 MHz

Stop 2000 MHz

Start 10 MHz

Stop 2000 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

7/28/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
