FP9318PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP9318PM

FP9318PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size219KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP9318PM Overview

RF AMPLIFIER MODEL

FP9318PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	13.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

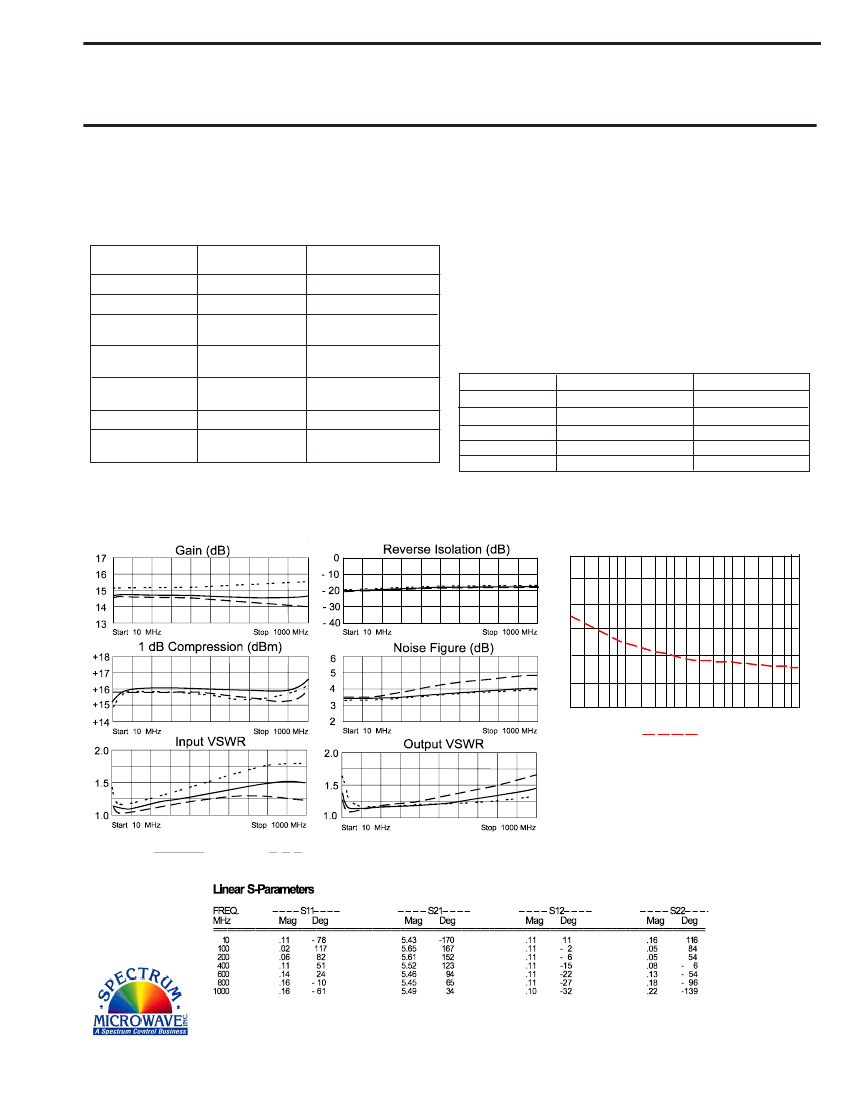

RF AMPLIFIER

MODEL

TM9318PM

Features

Superior Phase Noise Performance

Wide Bandwidth 10 - 1000 MHz

Environmental Screening Available

Available as:

TM9318PM, 4 Pin TO-8 (T4)

TN9318PM, 4 Pin Surface Mount (SM3)

FP9318PM, 4 Pin Flatpack (FP4)

BX9318PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +48 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +42 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +30 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise Figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

10 - 1000 MHz

14.7

-18.5

1.5:1

3.75

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 1000 MHz

13.5 Min.

14.5 Min.

-17 Max.

2.0:1 Max.

5.5 Max.

+15

50 Max.

Absolute Maximum (No Damage) Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Guaranteed @ 25 ºC (600 MHz) Phase Noise Performance

(dBc/Hz)*

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-155

-165

-171

-173

Guarantee

-152

-162

-168

-169

Note: Care should always be taken to effectively ground the case of each unit.

*Note: Phase Noise Performance typically tested at midband.

Bandedge performance may vary.

Typical Performance Data

Phase Noise (dBc/Hz)

-130

-140

-150

-160

-170

-180

-190

100

10K

100K

T ical

Test

Carrier Frequency: 600

Residual Phase Noise

MHz

Conditions

Power Output: +14.5 dBm

T perature: 25 C

Agilent ES5500 System

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

10/12/10

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9318PM Related Products

	FP9318PM	BX9318PM	TM9318PM	TN9318PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compliant	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	13.5 dB	13.5 dB	13.5 dB	13.5 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	1000 MHz	1000 MHz	1000 MHz	1000 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	API Technologies	API Technologies	-	API Technologies
