ABSM3A-16.0000MHZ-16-R040-Z-F-T: DescriptionParallel - Fundamental Quartz Crystal, 16MHz Nom, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size967KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ABSM3A-16.0000MHZ-16-R040-Z-F-T Overview

Parallel - Fundamental Quartz Crystal, 16MHz Nom, ROHS COMPLIANT, SMD, 4 PIN

ABSM3A-16.0000MHZ-16-R040-Z-F-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	50 ppm
load capacitance	16 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	16 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L12.5XB4.95XH5.1 (mm)/L0.492XB0.195XH0.201 (inch)
Series resistance	40 Ω
surface mount	YES

Preview

Download Datasheet

View All

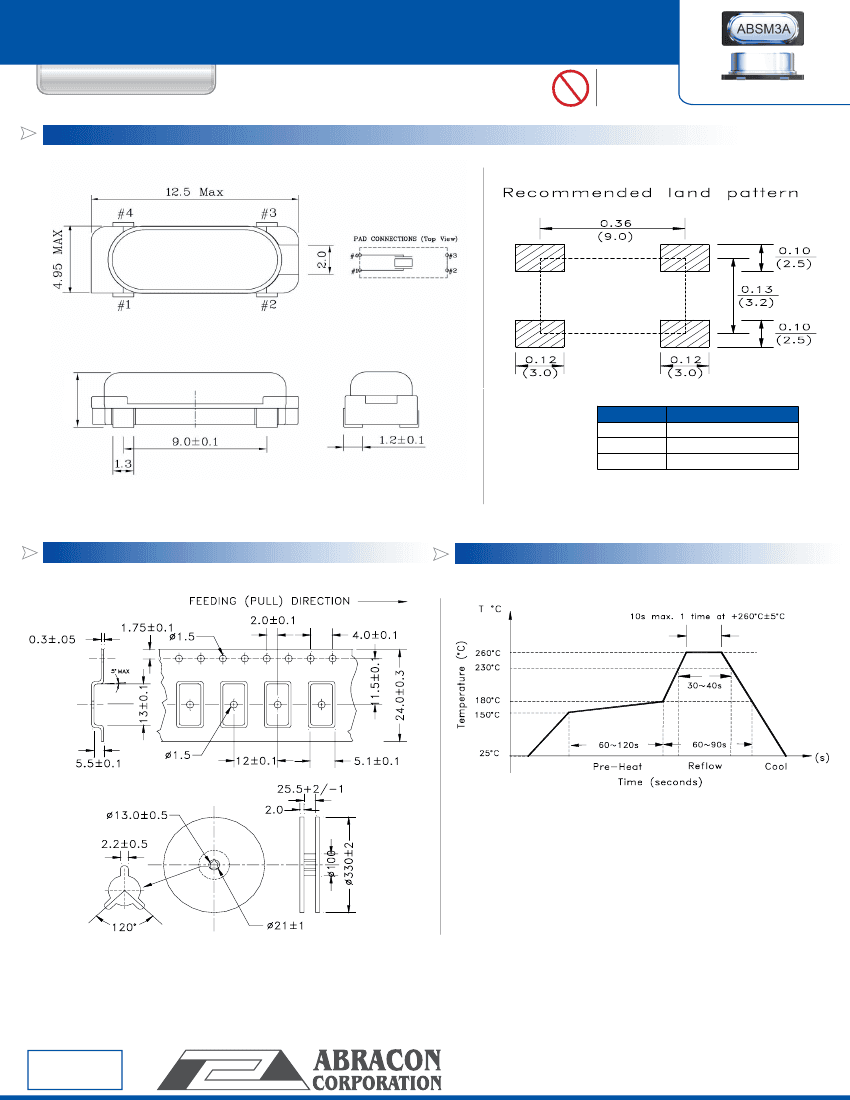

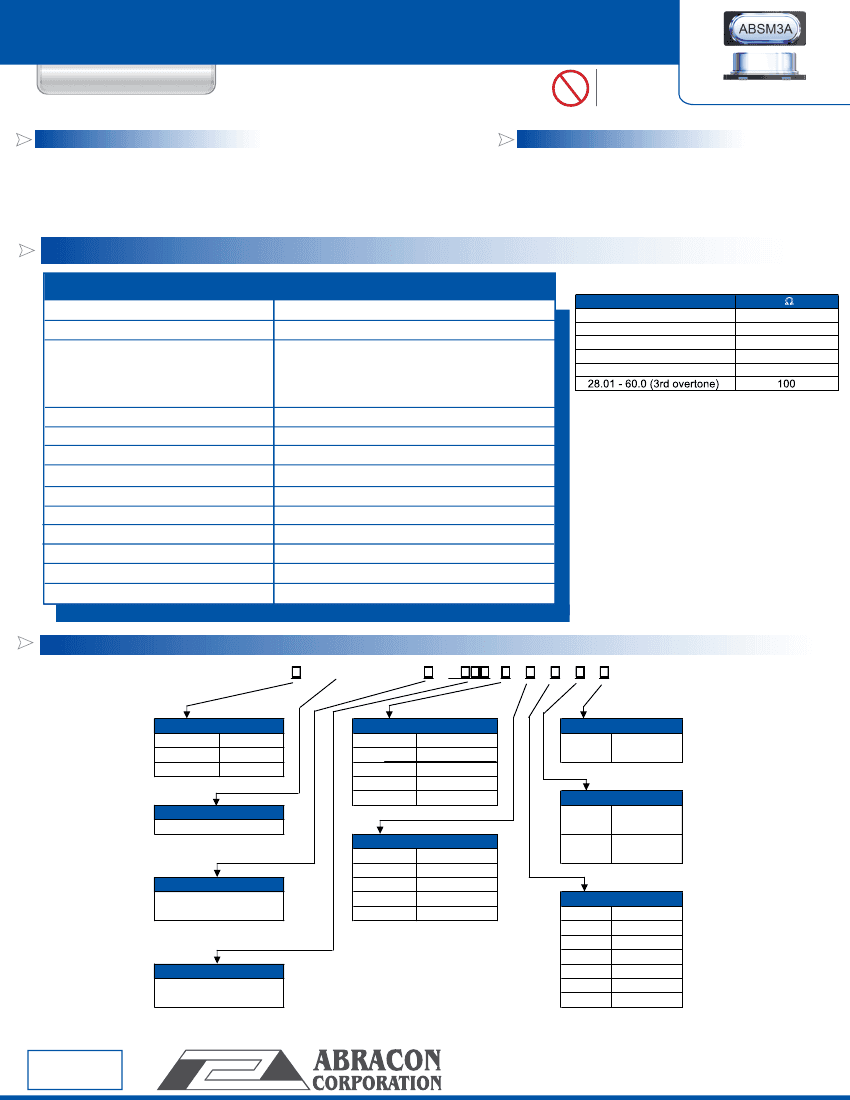

MICROPROCESSOR AT49 4 PADS SMD CRYSTAL

ABSM3A

FEATURES:

• Excellent all-purpose surface-mount crystal.

• Four pad land pattern compatible with common

plastic molded designs.

RoHS

Compliant

12.5 x 4.95 x H

| | | | | | | | | | | | | | |

APPLICATIONS:

• Home electronics

• Computers, modems, and communications

• Clock applications

• Microprocessors

STANDARD SPECIFICATIONS:

ABRACON P/N:

Frequency:

Operation mode:

ABSM3A Series

3.579545 MHz to 54 MHz

AT-strip ( see options)

3.579545 MHz - 30.00 MHz

(Fundamental AT)

40.00 MHz - 54.00 MHz

(3rd OT AT)

30 MHz - 48.00 MHz

(Fundamendal BT)

Operating temperature:

- 10°C to + 60°C (see options)

Storage temperature:

- 40°C to + 85° C

Frequency tolerance:

± 50 ppm max. (see options)

Frequency stability over:

± 100 ppm max. (see options)

Equivalent series resistance (max.): See Table 1

Shunt capacitance C0:

7.0pF max.

Load capacitance CL:

18.0pF (see option)

Drive level:

100mW max., 100µW correlation

Aging (per year) @ 25° C:

± 5 ppm max.

Insulation resistance:

500 MΩmin. at 100 Vdc ± 15 Vdc

PARAMETERS

Table 1 Standard ESR

Frequency (MHz)

3.579545 - 3.999

4.000 - 4.999

5.000 - 6.999

7.000 - 14.999

15.000 - 50.0 (fund)

ESR(Ω) max.

180

150

100

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ABSM3 B - Frequency -

Height max.

Blank

0.20 (5.1)

0.18 (4.5)

0.15 (3.8)

Frequency

XX.XXX MHz

-R

Packaging

Tape and

Reel

Mode

Fundamental AT for

F>30MHz

Operating Temp.

0°C to + 70°C

-20°C to +70°C

-30°C to +70°C

-30°C to +85°C

-40°C to +85°C

Freq. Tolerance

± 10 ppm

± 15 ppm

± 20 ppm

± 25 ppm

± 30 ppm

Fundamental BT

for F>30MHz

Load Capacitance

Please specify CL in pF or S

for Series (minimun 10pF)

RXXX (Value in Ω

)

Custom ESR

If it is custom

* -10°C to 60°C only

** Temp option E, B, C, and N only

Note: Fundamental BT frequency stability

±100ppm max. at -10°C to +60°C only

Freq. Stability

± 10 ppm

G**

± 15 ppm

± 20 ppm

± 25 ppm

± 30 ppm

± 35 ppm

± 50 ppm

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 02.10.09

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale

ABSM3A-16.0000MHZ-16-R040-Z-F-T Related Products

	ABSM3A-16.0000MHZ-16-R040-Z-F-T	ABSM3A-24.000MHZ-16-R040-Z-F-T	ABSM3A-10.0000MHZ-16-R050-Z-F-T	ABSM3A-32.0000MHZ-16-R040-Z-F-T	ABSM3A-33.3333MHZ-16-R040-Z-F-T	ABSM3A-8.0000MHZ-16-R050-Z-F-T	ABSM3A-24.5760MHZ-16-R040-Z-F-T	ABSM3A-3.6864MHZ-16-R180-Z-F-T	ABSM3A-14.7456MHZ-16-R050-Z-F-T
Description	Parallel - Fundamental Quartz Crystal, 16MHz Nom, ROHS COMPLIANT, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 24MHz Nom, ROHS COMPLIANT, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 10MHz Nom, ROHS COMPLIANT, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 32MHz Nom, ROHS COMPLIANT, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 33.3333MHz Nom, ROHS COMPLIANT, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 8MHz Nom, ROHS COMPLIANT, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 24.576MHz Nom, ROHS COMPLIANT, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 3.6864MHz Nom, ROHS COMPLIANT, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 14.7456MHz Nom, ROHS COMPLIANT, SMD, 4 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Abracon	Abracon	Abracon	Abracon	Abracon	Abracon	Abracon	Abracon	Abracon
package instruction	ROHS COMPLIANT, SMD, 4 PIN	ROHS COMPLIANT, SMD, 4 PIN	ROHS COMPLIANT, SMD, 4 PIN	ROHS COMPLIANT, SMD, 4 PIN	ROHS COMPLIANT, SMD, 4 PIN	ROHS COMPLIANT, SMD, 4 PIN	ROHS COMPLIANT, SMD, 4 PIN	ROHS COMPLIANT, SMD, 4 PIN	ROHS COMPLIANT, SMD, 4 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
Ageing	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	100 µW	100 µW	100 µW	100 µW	100 µW	100 µW	100 µW	100 µW	100 µW
frequency stability	0.005%	0.005%	0.005%	0.005%	0.005%	0.005%	0.005%	0.005%	0.005%
frequency tolerance	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm
load capacitance	16 pF	16 pF	16 pF	16 pF	16 pF	16 pF	16 pF	16 pF	16 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	16 MHz	24 MHz	10 MHz	32 MHz	33.3333 MHz	8 MHz	24.576 MHz	3.6864 MHz	14.7456 MHz
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
physical size	L12.5XB4.95XH5.1 (mm)/L0.492XB0.195XH0.201 (inch)	L12.5XB4.95XH5.1 (mm)/L0.492XB0.195XH0.201 (inch)	L12.5XB4.95XH5.1 (mm)/L0.492XB0.195XH0.201 (inch)	L12.5XB4.95XH5.1 (mm)/L0.492XB0.195XH0.201 (inch)	L12.5XB4.95XH5.1 (mm)/L0.492XB0.195XH0.201 (inch)	L12.5XB4.95XH5.1 (mm)/L0.492XB0.195XH0.201 (inch)	L12.5XB4.95XH5.1 (mm)/L0.492XB0.195XH0.201 (inch)	L12.5XB4.95XH5.1 (mm)/L0.492XB0.195XH0.201 (inch)	L12.5XB4.95XH5.1 (mm)/L0.492XB0.195XH0.201 (inch)
Series resistance	40 Ω	40 Ω	50 Ω	40 Ω	40 Ω	50 Ω	40 Ω	180 Ω	50 Ω
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
