FP3098PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size77KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP3098PM Overview

RF AMPLIFIER MODEL

FP3098PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP4, 4 PIN
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT
Gain	13 dB
Maximum input power (CW)	15 dBm
Maximum operating frequency	250 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

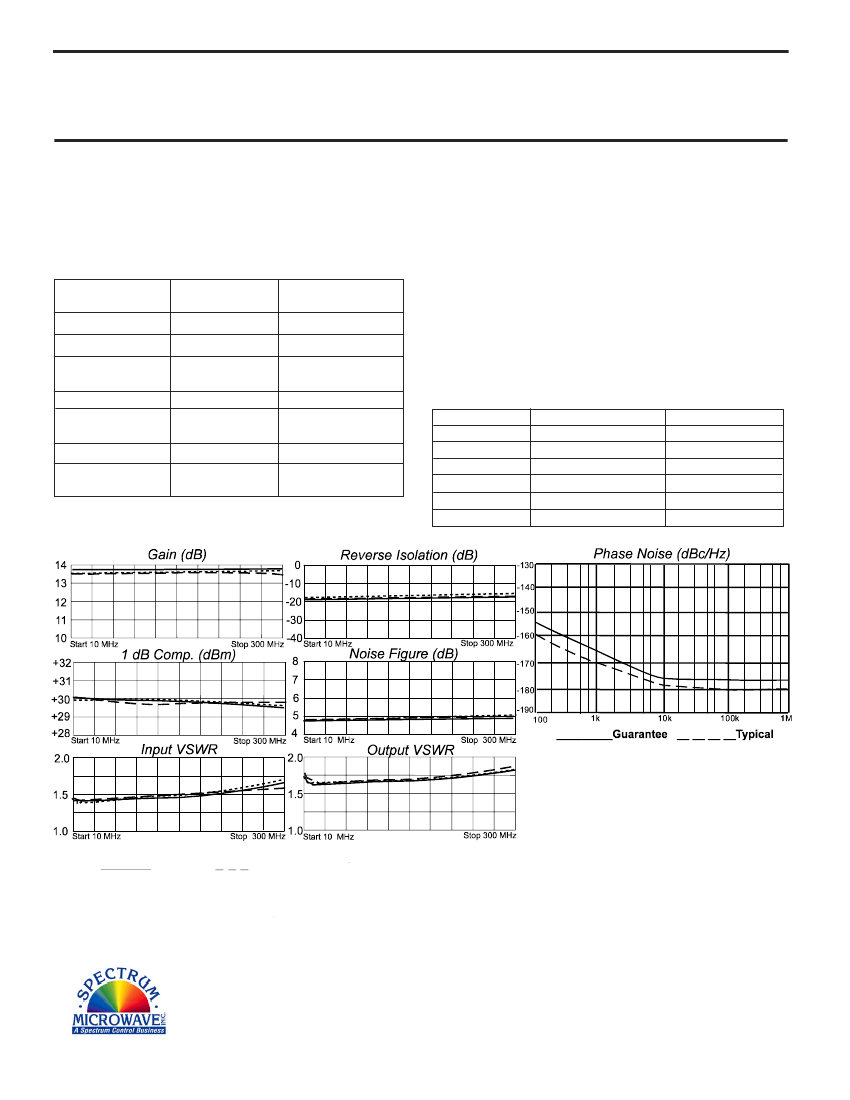

RF AMPLIFIER

MODEL

TM3098PM

Features

Superior Phase Noise Performance

High Output Power: +30 dBm Typical

Operating Temp. -55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM3098PM, 4 Pin TO-8 (T4)

TN3098PM, 4 Pin Surface Mount (SM3)

FP3098PM, 4 Pin Flatpack (FP4)

BX3098PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ...... +66 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +63 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +45 dBm (Typ.)

Maximum Ratings

Specifications

CHARACTERISTIC

Frequency (MHz)

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

10 - 300 MHz

13.5

+30

-17

1.5:1

1.75:1

5.0

+15

240

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 250 MHz

13 Min.

+29 Min.

-16 Max.

2.0:1 Max.

6.0 Max.

+15

250 Max.

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +17 Volts

Continuous RF Input Power .................................. +15 dBm

Short Term RF Input Power ........... 100 mW (1 Minute Max.)

Maximum Peak Power .................... 0.2 Watt (3

µsec

Max.)

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

10 Hz

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-150

-160

-170

-178

-180

Guarantee

-145

-155

-165

-175

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Agilent ES5500 System

Residual Phase Noise Test Conditions:

Carrier Frequency: 160 MHz

Power Output +29.0 dBm

Temperature: 25

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

1/22/07

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001
