FP3100: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size38KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP3100 Overview

RF AMPLIFIER MODEL

FP3100 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	LOW NOISE, I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	29 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	1300 MHz
Minimum operating frequency	500 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	NARROW BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

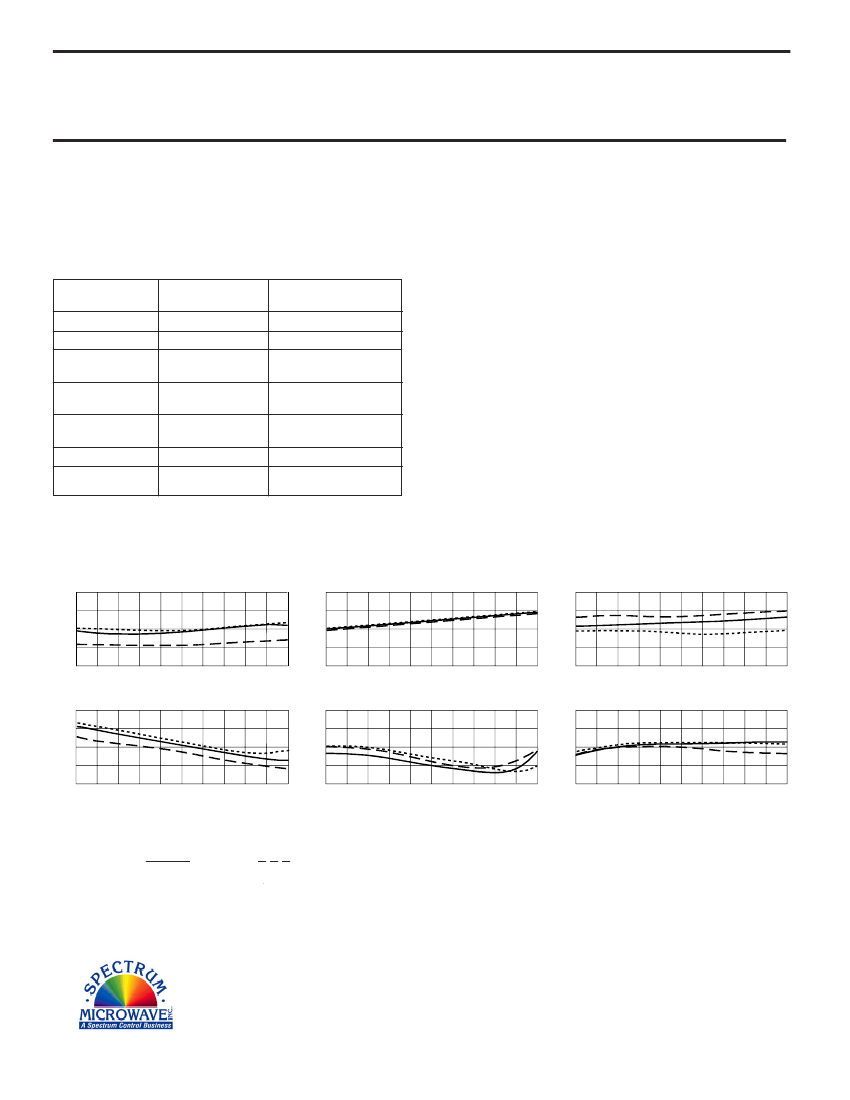

RF AMPLIFIER

MODEL

TM3100

Features

High Gain: +30 dB Typical

Low Noise Figure: 3.5 dB Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM3100, 4 Pin TO-8 (T4)

TN3100, 4 Pin Surface Mount (SM3)

FP3100, Pin Flatpack (FP4)

BX3100, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +43 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +38 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +28 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

500 - 1300 MHz

+16

-40

1.8:1

3.5

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

500 - 1300 MHz

29 Min.

+14 Min.

-35 Max.

2.0:1 Max.

4.5 Max.

+15

90 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 10 dBm

Short Term RF Input Power ..... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 500 MHz

Stop 1300 MHz

Gain (dB)

- 35

- 40

- 45

- 50

- 55

Reverse Isolation (dB)

Start 500 MHz

Stop 1300 MHz

Start 500 MHz

Noise Figure (dB)

Stop 1300 MHz

+22

+20

+18

+16

+14

Start 500 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Stop 1300 MHz

Start 500 MHz

Stop 1300 MHz

Start 500 MHz

Stop 1300 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

01/03/07

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
