RF AMPLIFIER
MODEL
TM3104
Features
!
!
!
!
High IP3: +33 dBm Typical
High Gain: 27.5 dB Typical
Operating Temp. -55 ºC to +85 ºC
Environmental Screening Available
Available as:
TM3104, 4 Pin TO-8 (T4)
TN3104, 4Pin Surface Mount (SM3)
FP3104, 4 Pin Flatpack (FP4)
BX3104, Connectorized Housing (H1)
Typical Intermodulation Performance at 25 ºC
Second Order Harmonic Intercept Point ..... +55 dBm (Typ.)
Second Order Two Tone Intercept Point ....... +50 dBm (Typ.)
Third Order Two Tone Intercept Point ........... +33 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
P
SAT
(dBm)
Reverse
Isolation (dB)
VSWR
In
Out
Noise Figure (dB)
Power
Vdc
mA
TYPICAL
Ta= 25 ºC
2 - 30 MHz
27.5
+18
20.5
-45
1.25:1
1.25:1
5.2
+15
115
MIN/MAX
Ta = -55 ºC to +85 ºC
2 - 30 MHz
26.0 Min.
+17 Min.
21.0 Max.
-40 Max.
2.0:1 Max.
2.0:1 Max.
6.0 Max.
+15
120 Max.
Absolute Maximum (No Damage) Ratings
Ambient Operating Temperature ................ -55ºC to +100 ºC
Storage Temperature ................................. -62ºC to +125 ºC
Case Temperature .................................................. +125 ºC
DC Voltage .......................................................... +18 Volts
Continuous RF Input Power .................................. +13 dBm
Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)
Maximum Peak Power .................. 0.5 Watt ( 3
µsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.

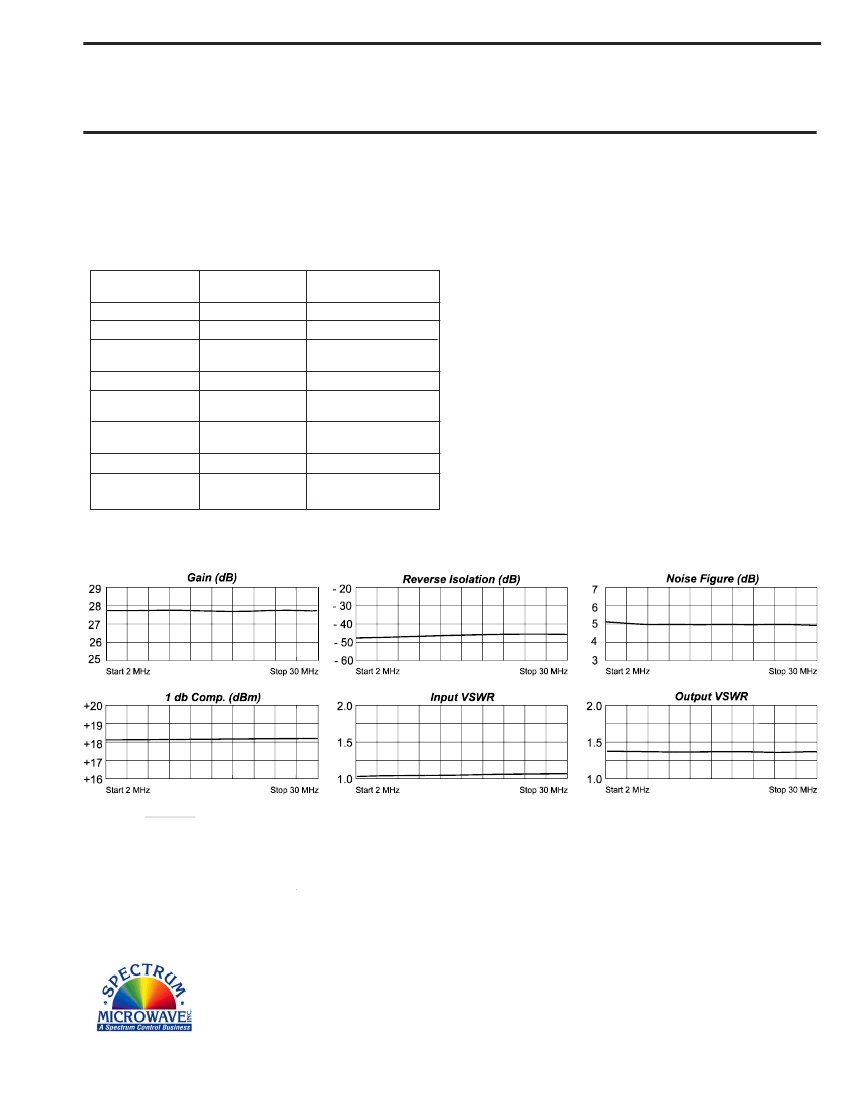

Typical Performance Data
Legend
+25 ºC
