FP5126: DescriptionRF AMPLIFIER MODEL; File Size78KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Compare View All

FP5126 Overview

RF AMPLIFIER MODEL

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM5126

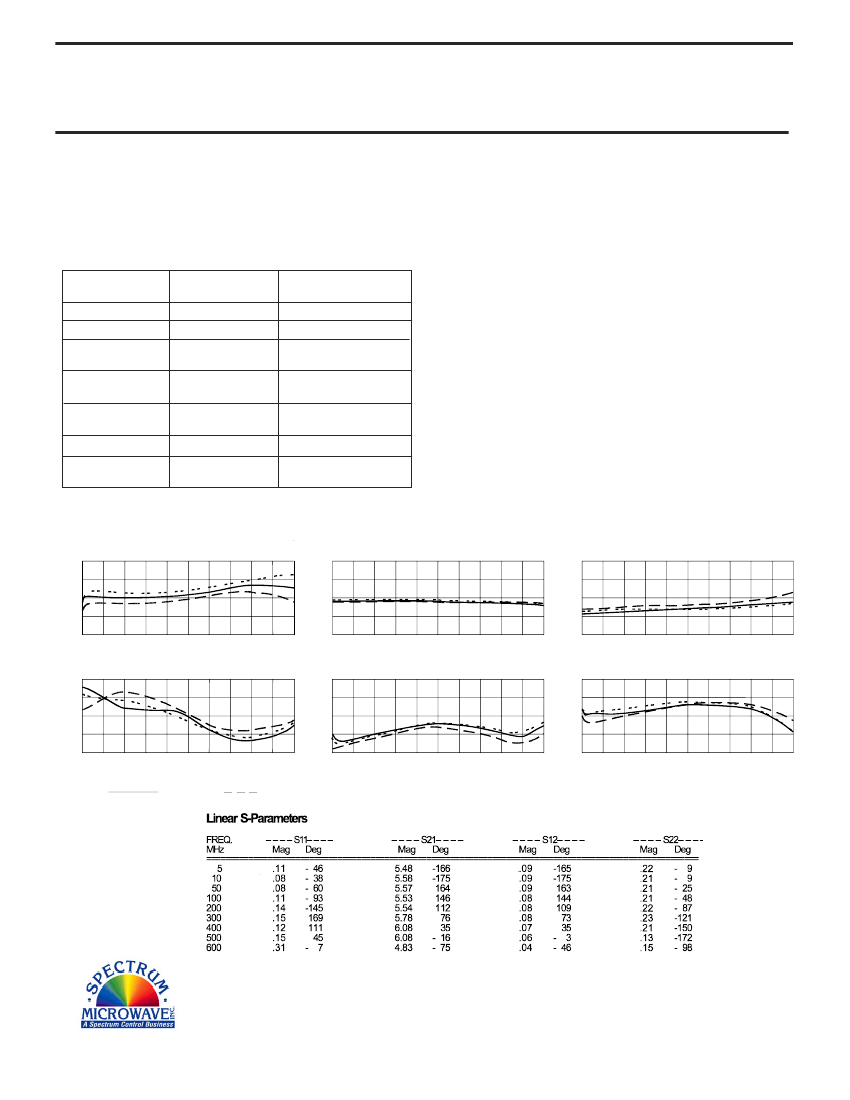

Features

Gain: 15.0 dB Typical

Output Power: +17 dBm Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM5126, 4 Pin TO-8 (T4)

TN5126, 4 Pin Surface Mount (SM3)

FP5126, 4 Pin Flatpack (FP4)

BX5126, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point.......+48 dBm (Typ.)

Second Order Two Tone Intercept Point...... +42 dBm (Typ.)

Third Order Two Tone Intercept Point.......... +32 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

5-500 MHz

+17

-21

<1.5:1

<1.75:1

<3.0

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5-500 MHz

14.0 Min.

+16.0 Min.

-20 Max.

2.0:1 Max.

3.5 Max.

+15

55 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage .......................................................... + 18Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power..................... 0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Start 5 MHz

Stop 500 MHz

Reverse Isolation (dB)

- 10

- 20

- 30

- 40

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Noise Figure (dB)

Stop 500 MHz

1 dB Comp. (dBm)

+20

+19

+18

+17

+16

Start 5 MHz

Stop 500 MHz

Input VSWR

2.0

1.5

1.0

Start 5 MHz

Stop 500 MHz

Output VSWR

2.0

1.5

1.0

Start 5 MHz

Stop 500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

6/16/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP5126 Related Products

	FP5126	BX5126	TM5126	TN5126
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	-	API Technologies	API Technologies	API Technologies
Reach Compliance Code	-	compli	compli	compli
Other features	-	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	-	COAXIAL	COMPONENT	COMPONENT
Gain	-	14 dB	14 dB	14 dB
Maximum input power (CW)	-	13 dBm	13 dBm	13 dBm
Maximum operating frequency	-	500 MHz	500 MHz	500 MHz
Minimum operating frequency	-	5 MHz	5 MHz	5 MHz
Maximum operating temperature	-	85 °C	85 °C	85 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	-	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	-	2	2	2
