FP5126PM Overview

RF AMPLIFIER MODEL

FP5126PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	14 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

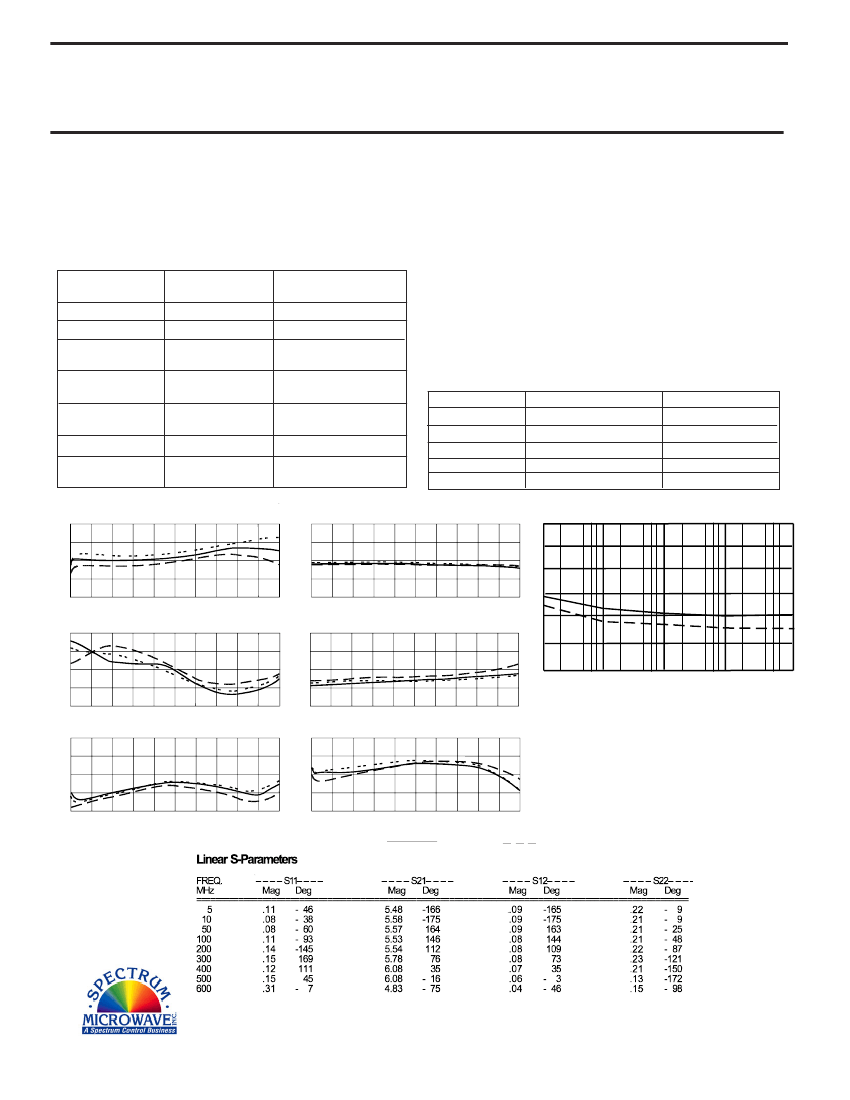

RF AMPLIFIER

MODEL

TM5126PM

Features

!

Superior Phase Noise Performance

Low Noise Figure: Less than 3.0 dB

Operating Temp. -55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM5126PM, 4 Pin TO-8 (T4)

TN5126PM, 4 Pin Surface Mount (SM3)

FP5126PM, 4 Pin Flatpack (FP4)

BX5126PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +48 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +42 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +32 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

In

Out

Noise Figure (dB)

Power

Vdc

mA

VSWR

TYPICAL

Ta= 25 ºC

5-500 MHz

15

17

-21

<1.5:1

<3.0

+15

50

MIN/MAX

Ta = -55 ºC to +85 ºC

5-500 MHz

14 Min.

16 Min

-20 Max.

2.0:1 Max.

3.5 Max.

+15

55 Max.

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-165

-172

-173

-174

Guarantee

-161

-168

-169

-170

Typical Performance Data

17

16

15

14

13

Start 5 MHz

Stop 500 MHz

Gain (dB)

0

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

-130

-140

-150

-160

Start 5 MHz

Stop 500 MHz

+20

+19

+18

+17

+16

1 dB Comp. (dBm)

5

4

3

2

1

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Noise Figure (dB)

-170

-180

-190

100

1k

10k

100k

1M

_______Guarantee __ __ __ Typical

Stop 500 MHz

Input VSWR

2.0

1.5

1.0

Start 5 MHz

Stop 500 MHz

2.0

1.5

1.0

Start 5 MHz

Output VSWR

Test

*

Residual Phase Noise

MHz

Conditions:

Carrier Frequency: 200

Power Output: +17.0 dBm

!

Temperature: 25 ºC

!

Agilent ES5500 System

Stop 500 MHz

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

06/18/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001
