M5M411860TP-6T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> M5M411860TP-6T

M5M411860TP-6T: DescriptionFast Page DRAM, 64KX18, 60ns, CMOS, PDSO42, 0.300 INCH, PLASTIC, TSOP2-42; Categorystorage storage; File Size1MB，29 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

M5M411860TP-6T Overview

Fast Page DRAM, 64KX18, 60ns, CMOS, PDSO42, 0.300 INCH, PLASTIC, TSOP2-42

M5M411860TP-6T Parametric

Parameter Name	Attribute value
Maker	Mitsubishi
Parts packaging code	TSOP2
package instruction	TSOP2,
Contacts	42
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-G42
length	14.6 mm
memory density	1179648 bit
Memory IC Type	FAST PAGE DRAM
memory width	18
Number of functions	1
Number of ports	1
Number of terminals	42
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX18
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified
refresh cycle	256
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	7.62 mm

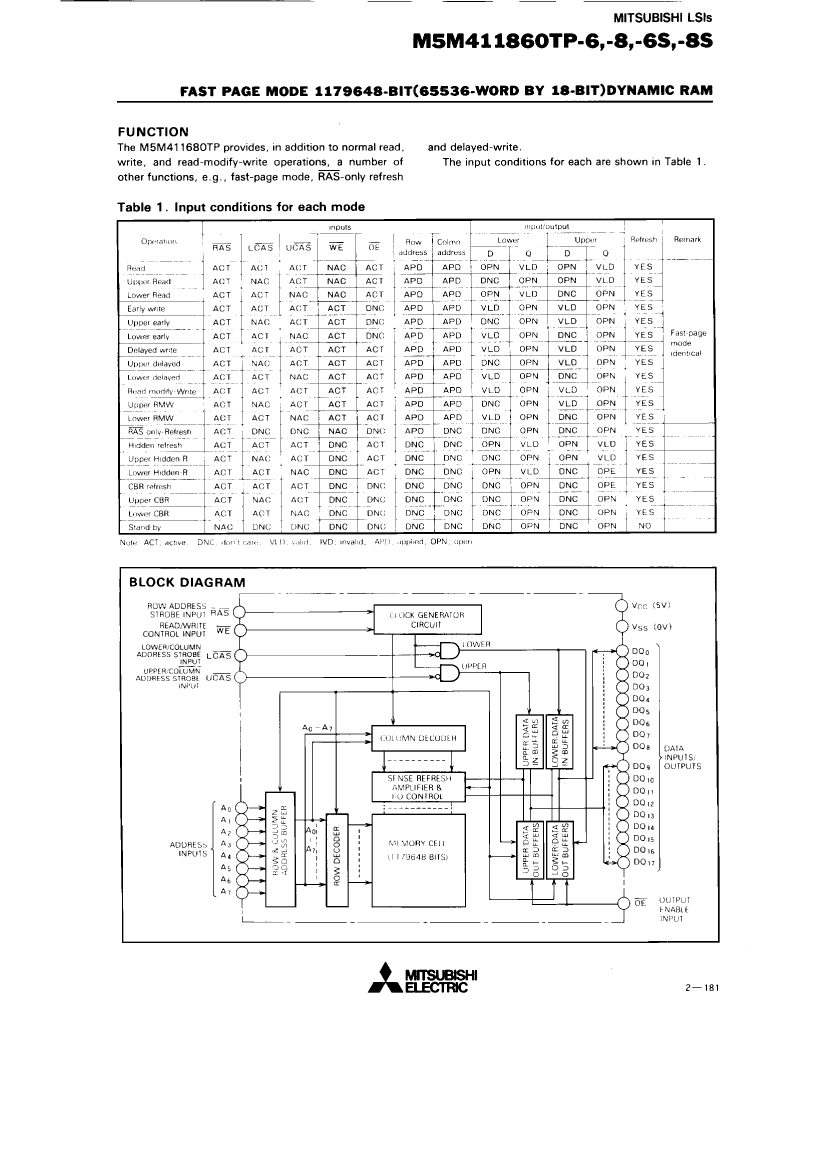

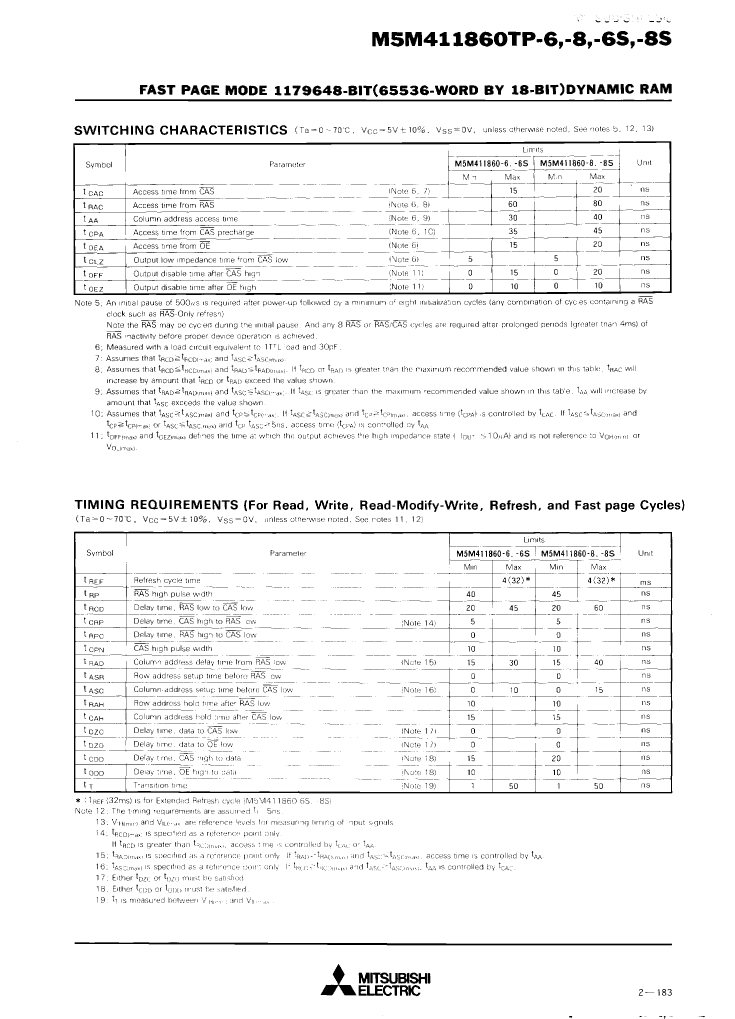

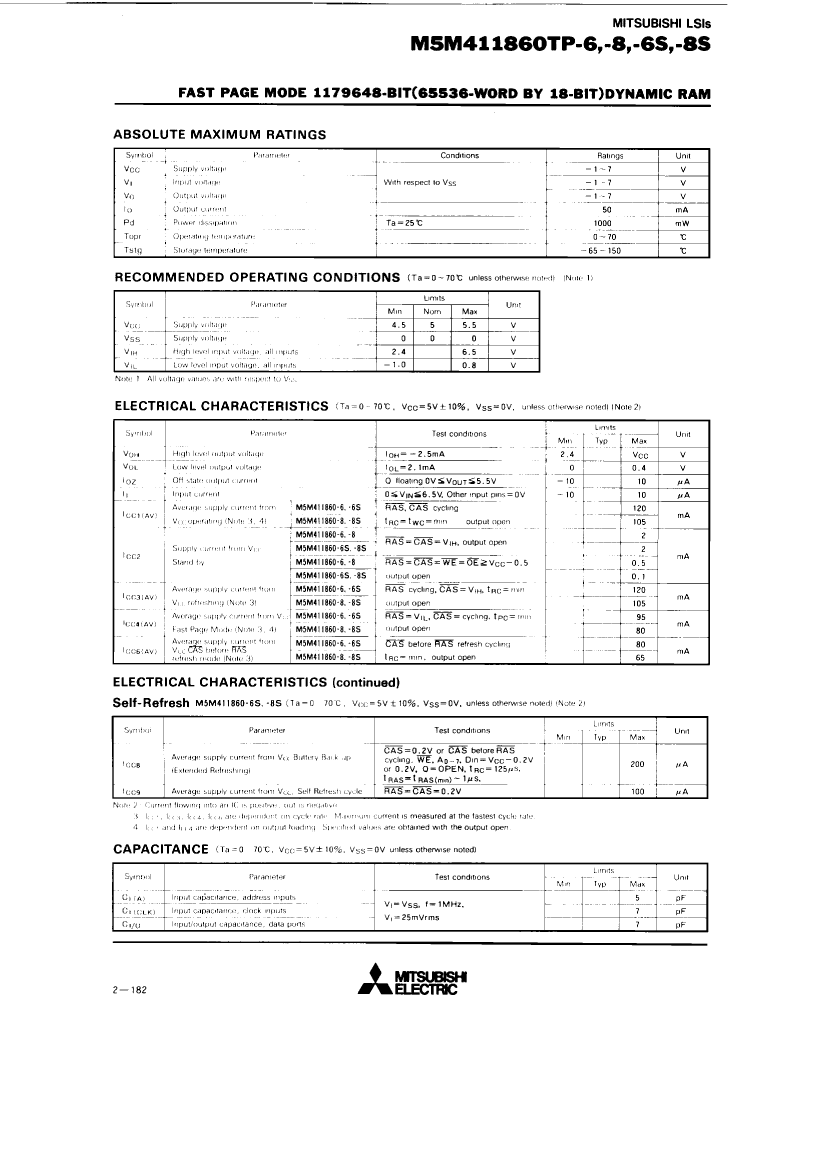

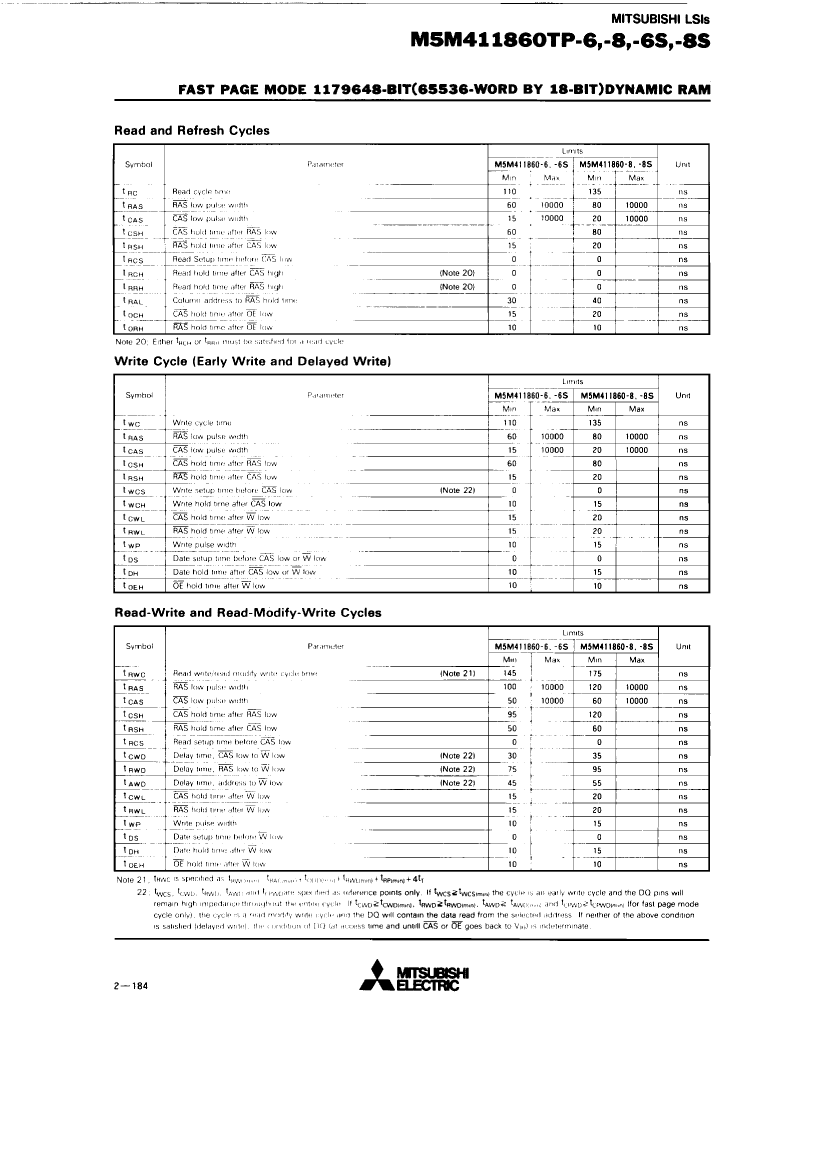

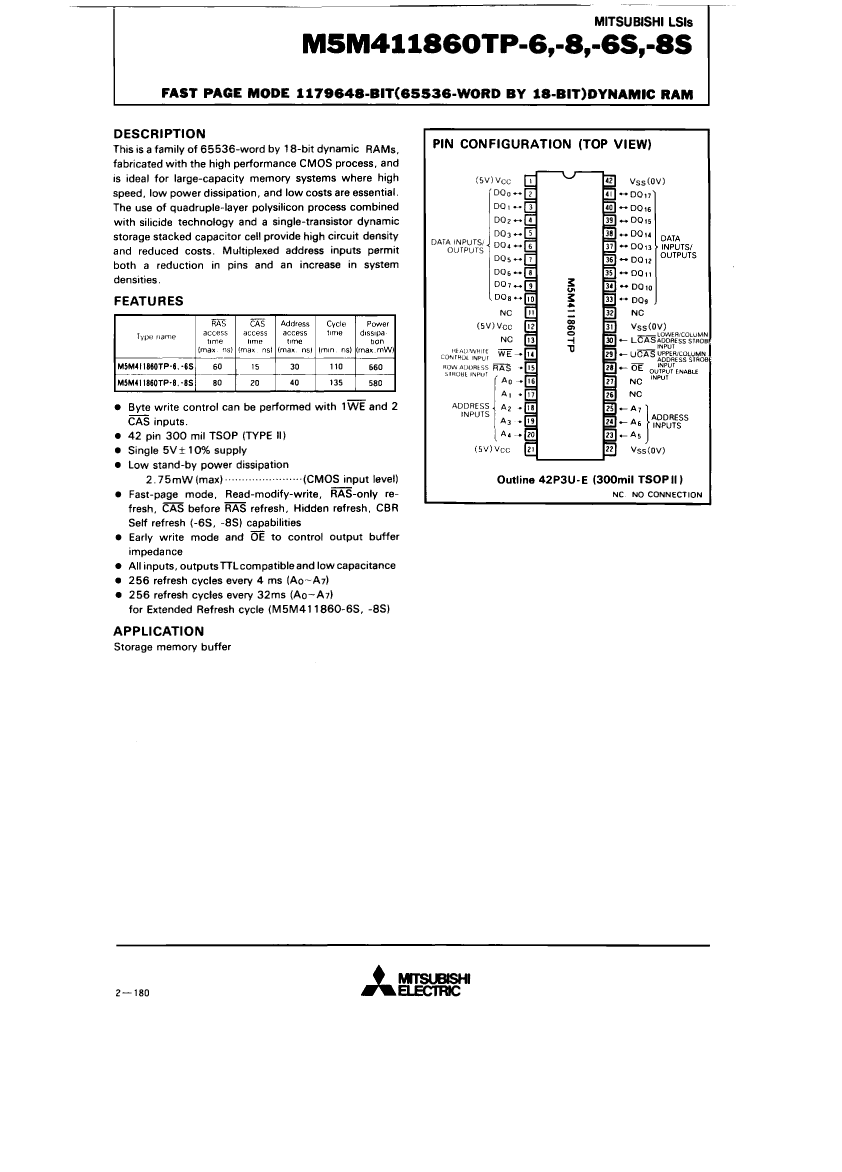

Preview

Download Datasheet

View All

M5M411860TP-6T Related Products

	M5M411860TP-6T	M5M411860TP-8ST	M5M411860TP-6S	M5M411860TP-6ST	M5M411860TP-8S	M5M411860TP-8T	M5M411860TP-6	M5M411860TP-8
Description	Fast Page DRAM, 64KX18, 60ns, CMOS, PDSO42, 0.300 INCH, PLASTIC, TSOP2-42	Fast Page DRAM, 64KX18, 80ns, CMOS, PDSO42, 0.300 INCH, PLASTIC, TSOP2-42	Fast Page DRAM, 64KX18, 60ns, CMOS, PDSO42, 0.300 INCH, PLASTIC, TSOP2-42	Fast Page DRAM, 64KX18, 60ns, CMOS, PDSO42, 0.300 INCH, PLASTIC, TSOP2-42	Fast Page DRAM, 64KX18, 80ns, CMOS, PDSO42, 0.300 INCH, PLASTIC, TSOP2-42	Fast Page DRAM, 64KX18, 80ns, CMOS, PDSO42, 0.300 INCH, PLASTIC, TSOP2-42	Fast Page DRAM, 64KX18, 60ns, CMOS, PDSO42, 0.300 INCH, PLASTIC, TSOP2-42	Fast Page DRAM, 64KX18, 80ns, CMOS, PDSO42, 0.300 INCH, PLASTIC, TSOP2-42
Parts packaging code	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2
package instruction	TSOP2,	TSOP2,	TSOP2, TSSOP42,.36	TSOP2,	TSOP2, TSSOP42,.36	TSOP2,	TSOP2, TSSOP42,.36	TSOP2, TSSOP42,.36
Contacts	42	42	42	42	42	42	42	42
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	60 ns	80 ns	60 ns	60 ns	80 ns	80 ns	60 ns	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-G42	R-PDSO-G42	R-PDSO-G42	R-PDSO-G42	R-PDSO-G42	R-PDSO-G42	R-PDSO-G42	R-PDSO-G42
length	14.6 mm	14.6 mm	14.6 mm	14.6 mm	14.6 mm	14.6 mm	14.6 mm	14.6 mm
memory density	1179648 bit	1179648 bit	1179648 bit	1179648 bit	1179648 bit	1179648 bit	1179648 bit	1179648 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	18	18	18	18	18	18	18	18
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	42	42	42	42	42	42	42	42
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	64KX18	64KX18	64KX18	64KX18	64KX18	64KX18	64KX18	64KX18
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	256	256	256	256	256	256	256	256
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Maker	Mitsubishi	-	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
self refresh	-	YES	YES	YES	YES	-	NO	NO
