IS25LP064-JMLA1: DescriptionFlash, 64MX1, PDSO16, 0.300 INCH, ROHS COMPLIANT, PLASTIC, SOIC-16; Categorystorage storage; File Size2MB，83 Pages; ManufacturerIntegrated Silicon Solution ( ISSI )

Download Datasheet Parametric View All

IS25LP064-JMLA1 Overview

Flash, 64MX1, PDSO16, 0.300 INCH, ROHS COMPLIANT, PLASTIC, SOIC-16

IS25LP064-JMLA1 Parametric

Parameter Name	Attribute value
Maker	Integrated Silicon Solution ( ISSI )
package instruction	SOP,
Reach Compliance Code	unknown
Maximum clock frequency (fCLK)	133 MHz
JESD-30 code	R-PDSO-G16
length	10.3 mm
memory density	67108864 bit
Memory IC Type	FLASH
memory width	1
Number of functions	1
Number of terminals	16
word count	67108864 words
character code	64000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	64MX1
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Programming voltage	3 V
Filter level	AEC-Q100
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
type	NOR TYPE
width	7.5 mm

IS25LP064-JMLA1 Preview

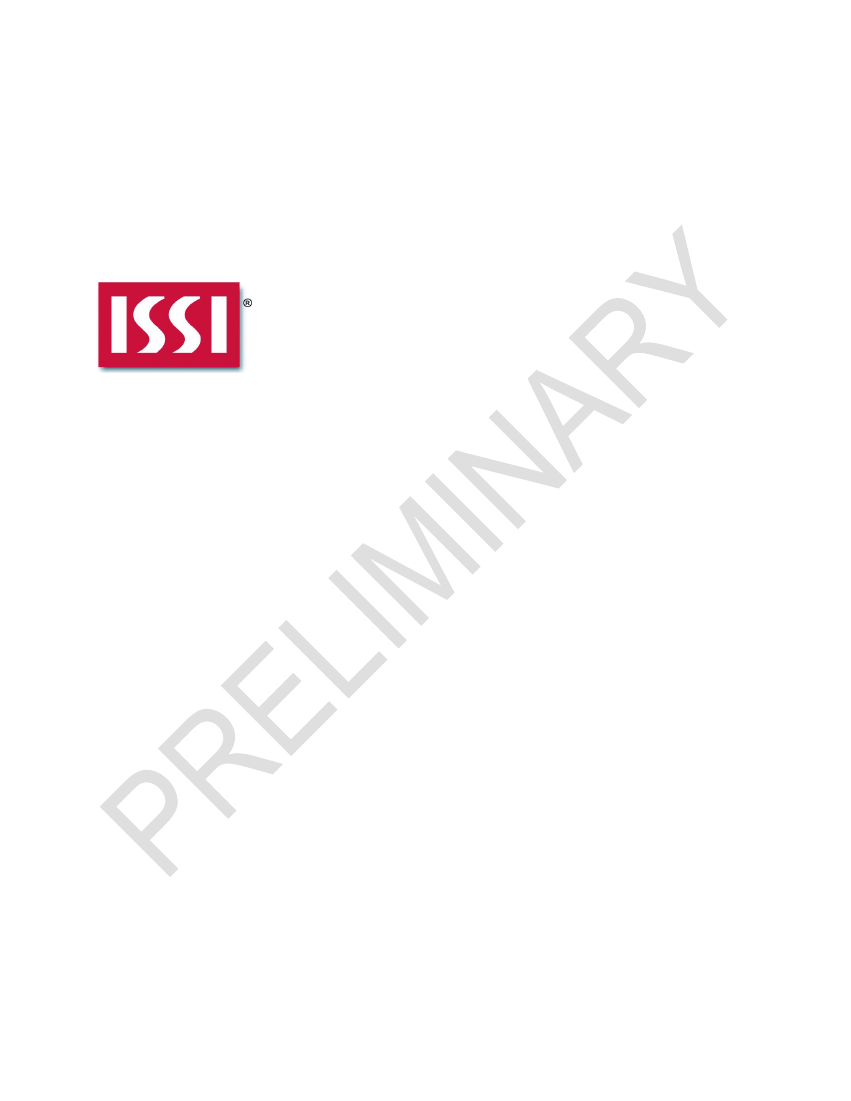

IS25LP032/064

32M-BIT/ 64M-BIT

3V- MULTI I/O SERIAL FLASH MEMORY WITH 133MHZ SPI

BUS & QUAD I/O (QPI) DTR INTERFACE

DATA SHEET

IS25LP032/064

32M-BIT/ 64M-BIT

3V- MULTI I/O SERIAL FLASH MEMORY WITH 133MHZ SPI BUS

& QUAD I/O (QPI) DTR INTERFACE

FEATURES



Industry Standard Serial Interface

IS25LP064:64M-bit/ 8M-byte

IS25LP032:32M-bit/ 4M-byte

256-bytes per Programmable Page

Supports standard SPI, Fast, Dual, Dual

I/O, QPI, DTR, Dual DTR I/O, and QPI

DTR SPI

Supports Serial Flash Discoverable

Parameters (SFDP)



High Performance Serial Flash (SPI)

50MHz Normal and 133Mhz Fast Read

532 MHz equivalent QPI SPI

DTR (Dual Transfer Rate) up to 66MHz

Selectable dummy cycles

Configurable drive strength

Supports SPI Modes 0 and 3

More than 100,000 erase/program cycles

More than 20-year data retention



Flexible & Efficient Memory Architecture

Chip Erase:128Mbit with Uniform:

Sector/Block Erase (4K/32K/64K-Byte)

Program 1 to 256 bytes per page

Program/Erase Suspend & Resume



Efficient Read and Program modes

Low Instruction Overhead Operations

Continuous Read 8/16/32/64-Byte Wrap

Selectable burst length

QPI for reduced instruction overhead

Allows XIP operations (execute in place)



Low Power with Wide Temp.

Ranges

Single 2.3V to 3.6V Voltage Supply

10 mA Active Read Current

5 µA Standby Current

Deep Power Down

Temp Grades:

Extended: -40°C to +105°C

Auto Grade: up to +125°C (call factory)



Advanced Security Protection

Software and Hardware Write Protection

Power Supply lock protect

4x256-Byte dedicated security area

with user-lockable bits, (OTP) One

Time Programmable Memory

128 bit Unique ID for each device



Industry Standard Pin-out & Packages

JM =16-pin SOIC 300mil

JB = 8-pin SOIC 208mil

JF = 8-pin VSOP 208mil

JK = 8-pin WSON 6x5mm

JL = 8-pin WSON 8x6mm

KGD (call factory)

Integrated Silicon Solution, Inc.- www.issi.com

Rev. 0A

4/03/2014

IS25LP032/064

GENERAL DESCRIPTION

The IS25LP032/064 Serial Flash memory offers a storage solution with the flexibility and performance in a

simplified pin count package. ISSI’s “Industry Standard Serial Interface” flash are for systems that have limited

space, pins, and power. The IS25LP128 are accessed through a 4-wire SPI Interface consisting of a Serial Data

Input (Sl), Serial Data Output (SO), Serial Clock (SCK), and Chip Enable (CE#) pins, which also serve as multi-

function I/O (see pin descriptions).

The device supports the standard Serial Peripheral Interface (SPI), Dual/Quad output (SPI), and Dual/Quad I/O

(SPI). Clock frequencies of up to 133MHz allow for equivalent clock rates of up to 532MHz (133MHz x 4)

allowing more than 66MBytes/S of throughput. The IS25xP series of flash adds support for DTR (Double

Transfer Rate) commands that transfer address and read data on both edges of the clock. These transfer rates

can outperform 16-bit Parallel Flash memories allowing for efficient memory access for a XIP (execute in place)

operation.

The memory array is organized into programmable pages of 256-bytes each. The IS25LP128 supports page

program mode where 1 to 256 bytes of data can be programmed into the memory with one command. QPI

(Quad Peripheral Interface) supports 2-cycles instruction cycles further reducing instruction times. Pages can

be erased in groups of 4K-byte sectors, 32K-byte blocks, 64K-byte blocks, and/or the entire chip. The uniform

sectors and blocks allow greater flexibility for a variety of applications requiring solid data retention.

GLOSSARY

Standard SPI

The IS25LP032/064 is accessed through a 4-wire SPI Interface consisting of Serial Data Input (Sl), Serial Data

Output (SO), Serial Clock (SCK), and Chip Enable (CE#) pins. Instructions are inputted through the SI pin to

encode instructions, addresses, or input data to the device on the rising edge of SCK. The DO pin is used to

read data or check the status of the device on the falling edge of SCK. This device supports SPI bus operation

mode (0,0) and (1,1).

Mutil I/O SPI

The IS25LP032/064 allows accessing enhanced SPI protocol to use Dual output, Dual input and output, and

Quad input and output operation. Executing these instructions through SPI mode will achieve double or

quadruple the transfer bandwidth for READ and PROGRAM.

Quad I/O (QPI)

The IS25LP032/064 can enable QPI protocol by issuing an “Enter QPI mode (35h)” command. The QPI mode

uses four IO pins for input and output to reduce SPI instruction overhead and increase output bandwidth. QPI

mode can exit by issuing an “Exit QPI (F5h) command. A power reset or software reset can also return the

device into the standard SPI mode. SI and SO pins become bidirectional IO0 and IO1, and WP# and HOLD#

pins become IO2 and IO3 respectively during QPI mode.

DTR

In addition to SPI and QPI features, IS25LP032/064 also supports DTR READ. DTR allows high data throughput

while running at lower clock frequencies. As DTR READ option uses both rising and falling clock to drive output,

the dummy cycles are reduced by half as well.

Programmable drive strength and Selectable burst setting.

The IS25LP032/064 offers programmable output drive strength and selectable burst (wrap) length features to

increase the efficiency and performance of READ operations. The driver strength and burst setting features are

controlled by setting READ registers. A total of six different drive strengths and four different burst sizes

(8/16/32/64Bytes) are selectable.

Integrated Silicon Solution, Inc.- www.issi.com

Rev. 0A

4/03/2014

IS25LP032/064

TABLE OF CONTENTS

PIN CONFIGURATION ................................................................................................................................................. 6

PIN DESCRIPTIONS .................................................................................................................................................... 7

BLOCK DIAGRAM ........................................................................................................................................................ 8

SPI MODES DESCRIPTION ......................................................................................................................................... 9

SYSTEM CONFIGURATION ...................................................................................................................................... 11

5.1 BLOCK/SECTOR ADDRESSES ........................................................................................................................... 11

REGISTERS ............................................................................................................................................................... 12

6.1. STATUS REGISTER ............................................................................................................................................ 12

6.2. FUNCTION REGISTER ....................................................................................................................................... 14

6.3 READ REGISTERS .............................................................................................................................................. 15

PROTECTION MODE ................................................................................................................................................. 17

7.1 HARDWARE WRITE PROTECTION .................................................................................................................... 17

7.2 SOFTWARE WRITE PROTECTION ..................................................................................................................... 17

DEVICE OPERATION................................................................................................................................................. 18

8.1 NORMAL READ OPERATION (NORD, 03h) ........................................................................................................ 20

8.2 FAST READ DATA OPERATION (FRD, 0Bh) ...................................................................................................... 21

8.3 HOLD OPERATION .............................................................................................................................................. 23

8.4 FAST READ DUAL I/O OPERATION (FRDIO, BBh) ............................................................................................ 23

8.5 FAST READ DUAL OUTPUT OPERATION (FRDO, 3Bh) .................................................................................... 25

8.6 FAST READ QUAD I/O OPERATION (FRQIO, EBh) ........................................................................................... 25

8.7 PAGE PROGRAM OPERATION (PP, 02h) .......................................................................................................... 29

8.8 QUAD INPUT PAGE PROGRAM OPERATION (PPQ, 32h/38h) .......................................................................... 31

8.9 ERASE OPERATION ............................................................................................................................................ 32

8.10 SECTOR ERASE OPERATION (SER, D7h/20h) ................................................................................................ 33

8.11 BLOCK ERASE OPERATION (BER32K:52h, BER64K:D8h) ............................................................................. 34

8.12 CHIP ERASE OPERATION (CER, C7h/60h) ...................................................................................................... 36

8.13 WRITE ENABLE OPERATION (WREN, 06h) ..................................................................................................... 37

8.14 WRITE DISABLE OPERATION (WRDI, 04h) ..................................................................................................... 38

8.15 READ STATUS REGISTER OPERATION (RDSR, 05h) .................................................................................... 39

8.16 WRITE STATUS REGISTER OPERATION (WRSR, 01h) .................................................................................. 40

8.17 READ FUNCTION REGISTER OPERATION (RDFR, 48h) ................................................................................ 41

8.18 WRITE FUNCTION REGISTER OPERATION (WRFR, 42h) .............................................................................. 42

8.19 ENTER QUAD PERIPHERAL INTERFACE (QPI) MODE OPERATION (QIOEN,35h; QIODI,F5h) ................... 43

8.20 PROGRAM/ERASE SUSPEND & RESUME ...................................................................................................... 44

8.21 DEEP POWER DOWN (DP, B9h) ....................................................................................................................... 45

8.22 RELEASE DEEP POWER DOWN (RDPD, ABh) ................................................................................................ 46

8.23 SET READ PARAMETERS OPERATION (SRP, C0h) ....................................................................................... 46

8.24 READ PRODUCT IDENTIFICATION (RDID, ABh) ............................................................................................. 49

8.25 READ PRODUCT IDENTIFICATION BY JEDEC ID OPERATION (RDJDID, 9Fh) ............................................ 51

Integrated Silicon Solution, Inc.- www.issi.com

Rev. 0A

4/03/2014

IS25LP032/064

8.26 READ DEVICE MANUFACTURER AND DEVICE ID OPERATION (RDMDID, 90h) .......................................... 52

8.27 READ UNIQUE ID NUMBER (RDUID, 4Bh) ....................................................................................................... 54

8.28 READ SFDP OPERATION (RDSFDP, 5Ah) ....................................................................................................... 55

8.29 NO OPERATION (NOP, 00h).............................................................................................................................. 62

8.30 SOFTWARE RESET (RESET-ENABLE (RSTEN, 66h) AND RESET (RST, 99h) .............................................. 62

8.31 MODE RESET OPERATION (RSTM, FFh) ........................................................................................................ 63

8.32 SECURITY INFORMATION ROW ...................................................................................................................... 64

8.33 INFORMATION ROW ERASE OPERATION (IRER, 64h) .................................................................................. 64

8.34 INFORMATION ROW PROGRAM OPERATION (IRP, 62h)............................................................................... 65

8.35 INFORMATION ROW READ OPERATION (IRRD, 68h) .................................................................................... 66

8.36 FAST READ DTR MODE OPERATION (FRDTR, 0Dh) ...................................................................................... 67

8.37 FAST READ DUAL IO DTR MODE OPERATION (FRDDTR, BDh) .................................................................... 68

8.38 FAST READ QUAD IO DTR MODE OPERATION (FRQDTR, EDh) ................................................................... 69

8.39 SECTOR LOCK/UNLOCK FUNCTIONS ............................................................................................................. 70

ELECTRICAL CHARACTERISTICS ........................................................................................................................... 72

9.1 ABSOLUTE MAXIMUM RATINGS

(1)

.................................................................................................................... 72

9.2 OPERATING RANGE ........................................................................................................................................... 72

9.3 DC CHARACTERISTICS ...................................................................................................................................... 72

9.4 AC MEASUREMENT CONDITIONS ..................................................................................................................... 73

9.5 AC CHARACTERISTICS ...................................................................................................................................... 74

9.6 SERIAL INPUT/OUTPUT TIMING

(1)

.................................................................................................................... 75

9.7 POWER-UP AND POWER-DOWN ....................................................................................................................... 76

9.8 PROGRAM/ERASE PERFORMANCE .................................................................................................................. 76

10.

PACKAGE TYPE INFORMATION ......................................................................................................................... 78

10.1 8-Pin JEDEC 208mil Broad Small Outline Integrated Circuit (SOIC) Package (JB)

10.2 8-Contact Ultra-Thin Small Outline No-Lead WSON (6x5mm) (JK)

10.3 8-Contact Ultra-Thin Small Outline No-Lead WSON (8x6mm) (JL)

10.4 8-Pin 208mil VSOP Package (JF)

(1)

........................................ 77

................................................................. 78

................................................................. 79

................................................................................................................... 80

(1)

10.4 16-lead Plastic Small Outline package (300 mils body width) (JM)

................................................................. 8

Integrated Silicon Solution, Inc.- www.issi.com

Rev. 0A

4/03/2014

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

DC output DC converter circuit

Toy electronic cat circuit (4)

Simple and reliable mains overvoltage protector circuit diagram

Basic circuit diagram

Two-wire strain pressure sensor conversion circuit

Black light automatic light control, rain control, and wind control circuit diagram

Working principle of amplifier circuit: We know that the triode can control the current of the collector by controlling the current of the base to achieve the purpose of amplification. The amplifier circuit uses this characteristic of the t...; rain Analog electronics

Can't use sqrt() function on msp430g2553?: 只要一用那个函数就报错 ./lnk_msp430g2553.cmd", line 56: error #10099-D: program will not fit intoavailable memory.run placement with alignment fails for section ".bss"size 0x302 .Available memory ranges:RAMsize:...; baokeyu Microcontroller MCU

【SensorTag】Bluetooth Life Elf Project Submission: [align=left] [/align][align=left]Since I got the SensorTag sensor component, I submitted my own solution: Bluetooth Life Wizard. [/align][align=left]At the beginning, the progress was very smooth. I l...; dwwzl Wireless Connectivity

Intel StrataFlash Memory Technology Overview: Intel StrataFlash memory technology represents a significant cost breakthrough for flash memory by storing two bits of data in a single flash transistor. Flash memory has been widely used in PCs, mobi...; lorant Mobile and portable

LM3S ADC: The ADCs of the LM3S series are all 10-bit. What is the difference in accuracy compared to 12-bit ADCs from other manufacturers?...; 小煜 Microcontroller MCU

[Xingkong board Python programming learning main control board] Xingkong board + SCI acquisition module work together to read and present sensor data: At DFrobot's autumn conference , a new device was released, the SCI acquisition module, which can be used to collect data from a variety of sensors produced by DFRobot without any programming. Officia...; HonestQiao Embedded System

Shortcut: S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components
