164S115KBO5E4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 164S115KBO5E4

164S115KBO5E4: DescriptionRES,TAPPED,WIREWOUND,115K OHMS,1% +/-TOL,20PPM TC; CategoryPassive components The resistor; File Size193KB，3 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

164S115KBO5E4 Overview

RES,TAPPED,WIREWOUND,115K OHMS,1% +/-TOL,20PPM TC

164S115KBO5E4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	Panel Mount,
Reach Compliance Code	unknow
ECCN code	EAR99
structure	Servo Mou
Manufacturer's serial number	MODEL164
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package diameter	12.7 mm
Package length	28.58 mm
Package form	Panel Mou
method of packing	Box
Rated power dissipation(P)	2 W
resistance	115000 Ω
Resistor type	POTENTIOMETER
rotation angle	3600 deg
series	MODEL 164
technology	WIRE WOUND
Temperature Coefficient	20 ppm/°C
Tolerance	1%
Base Number Matches	1

Preview

Download Datasheet

View All

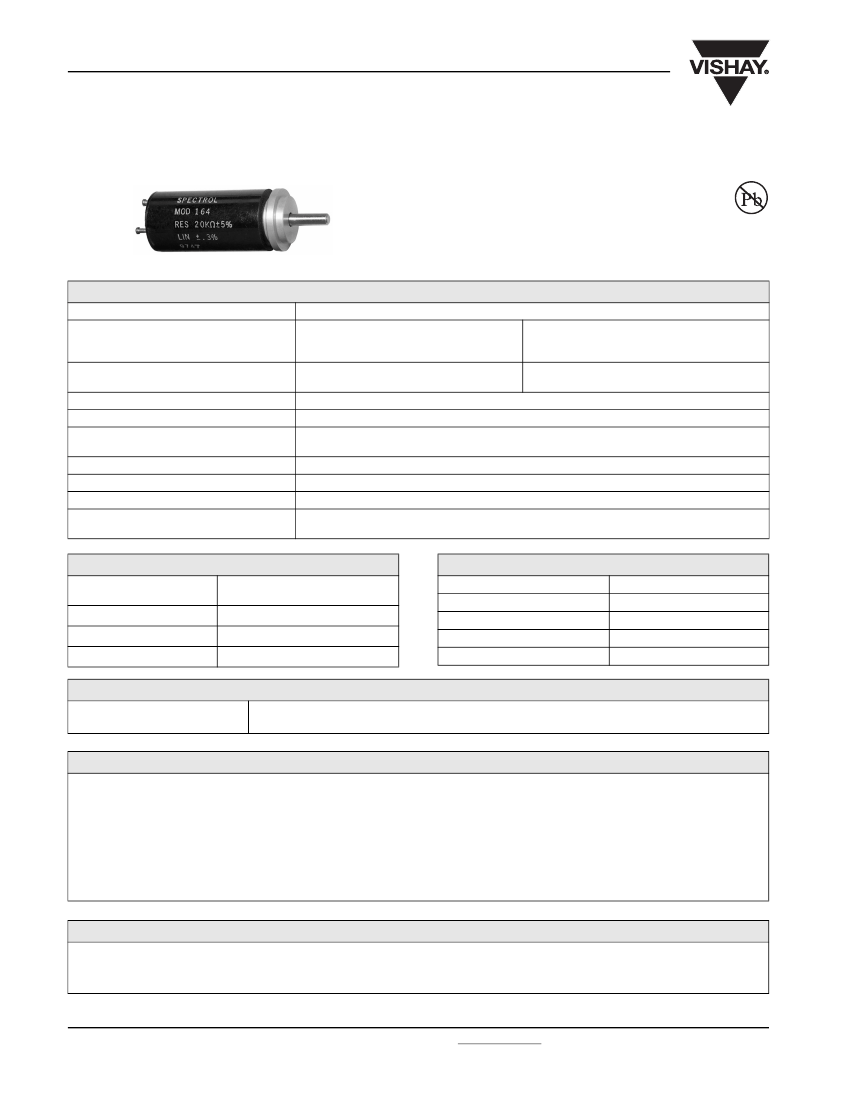

Model 164

Vishay Spectrol

(12.7 mm) Ten Turn Wirewound

Servo Mount Precision Potentiometer

FEATURES

•

Large range of ohmic values: 100

to 100 kΩ

•

Smallest size available on the market

•

Very easy and accurate adjustment

RoHS

COMPLIANT

ELECTRICAL SPECIFICATIONS

PARAMETER

Total Resistance

Standard Range

Tolerance

Linearity (Independent)

Noise

Rotation

Power Rating:

Section 1:

Insulation Resistance

Dielectric Strength

Absolute Minimum Resistance

End Voltage

STANDARD

100

to 100 kΩ

±5%

STANDARD

± 0.30 %

100

ENR

3600° + 15° - 0°

2.0 W at 40 °C ambient, derated to zero at 125 °C

100 MΩ minimum, 500 V

500 V

RMS

, 60 Hz

Linearity x total resistance or 0.5

Ω,

whichever is greater

Linearity x total applied voltage for total resistance above

Ω,

2.0 % of total applied voltage for 20

and below

SPECIAL

115 kΩ

±1%

BEST PRACTICAL

± 0.15 %

MATERIAL SPECIFICATIONS

Housing and Lids

Front Lid

Shaft

Terminals

Molded, glass filled, thermoset

plastic

Aluminum, anodized

Stainless steel, non-passivated

Brass, plated for solderability

ENVIRONMENTAL SPECIFICATIONS

Vibration

Shock

Salt Spray

Rotational Life

Temperature Range

15 g thru 2000 Hz

50 g

48 h

500 000 shaft revolutions

- 55 °C to + 125 °C

MARKING

Unit Identification

Units shall be marked with Vishay Spectrol name and model no, resistance and resistance tolerance,

linearity, terminal identification and date code

ORDERING INFORMATION/DESCRIPTION

The Model 164 can be ordered from this data sheet with a variety of alternate characteristics, as shown. For most rapid service on your

order, please state:

164

MODEL

STYLE

(SERVO)

10K

TOTAL RESISTANCE

BO5

PACKAGING

LEAD FINISH

Other characteristics will be standard as described on this data sheet. If special characteristics are required, such as: special linearity

tolerance, special resistance tolerance, extra taps, non-linear functions, etc., please state these on your order and allow additional lead time

for delivery.

SAP PART NUMBERING GUIDELINES

164

MODEL

STYLE

103

OHMIC VALUE

B05

PACKAGING

www.vishay.com

118

For technical questions, contact: sfer@vishay.com

Document Number: 57095

Revision: 05-Jul-07

164S115KBO5E4 Related Products

	164S115KBO5E4	164S100KBO5E4	164S1153B05	164S100BO5E4	164S500BO5E4	164S20KBO5E4	164S200BO5E4	164S5KBO5E4
Description	RES,TAPPED,WIREWOUND,115K OHMS,1% +/-TOL,20PPM TC	RES,TAPPED,WIREWOUND,100K OHMS,450WVDC,5% +/-TOL,20PPM TC	RES,TAPPED,WIREWOUND,115K OHMS,1% +/-TOL,20PPM TC	RES,TAPPED,WIREWOUND,100 OHMS,14WVDC,5% +/-TOL,20PPM TC	RES,TAPPED,WIREWOUND,500 OHMS,32WVDC,5% +/-TOL,20PPM TC	RES,TAPPED,WIREWOUND,20K OHMS,200WVDC,5% +/-TOL,20PPM TC	RES,TAPPED,WIREWOUND,200 OHMS,20WVDC,5% +/-TOL,20PPM TC	RES,TAPPED,WIREWOUND,5K OHMS,100WVDC,5% +/-TOL,20PPM TC
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	Panel Mount,	Panel Mount,	Panel Mount,	Panel Mount,	Panel Mount,	Panel Mount,	Panel Mount,	Panel Mount,
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
structure	Servo Mou	Servo Mou	Servo Mou	Servo Mou	Servo Mou	Servo Mou	Servo Mou	Servo Mou
Manufacturer's serial number	MODEL164	MODEL164	MODEL164	MODEL164	MODEL164	MODEL164	MODEL164	MODEL164
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package diameter	12.7 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm
Package length	28.58 mm	28.58 mm	28.58 mm	28.58 mm	28.58 mm	28.58 mm	28.58 mm	28.58 mm
Package form	Panel Mou	Panel Mou	Panel Mou	Panel Mou	Panel Mou	Panel Mou	Panel Mou	Panel Mou
method of packing	Box	Box	Box	Box	Box	Box	Box	Box
Rated power dissipation(P)	2 W	2 W	2 W	2 W	2 W	2 W	2 W	2 W
resistance	115000 Ω	100000 Ω	115000 Ω	100 Ω	500 Ω	20000 Ω	200 Ω	5000 Ω
Resistor type	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER
rotation angle	3600 deg	3600 deg	3600 deg	3600 deg	3600 deg	3600 deg	3600 deg	3600 deg
series	MODEL 164	MODEL 164	MODEL 164	MODEL 164	MODEL 164	MODEL 164	MODEL 164	MODEL 164
technology	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND
Temperature Coefficient	20 ppm/°C	20 ppm/°C	20 ppm/°C	20 ppm/°C	20 ppm/°C	20 ppm/°C	20 ppm/°C	20 ppm/°C
Tolerance	1%	5%	1%	5%	5%	5%	5%	5%
Base Number Matches	1	1	1	1	1	1	1	1
Operating Voltage	-	450 V	-	14 V	32 V	200 V	20 V	100 V
