LMS12GC65 datasheet, PDF - EEWORLD Datasheet

LMS12GC65: DescriptionMultiplier Accumulator/Summer, 12-Bit, CMOS, CPGA84, CERAMIC, PGA-84; CategoryThe embedded processor and controller Microcontrollers and processors; File Size312KB，9 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric View All

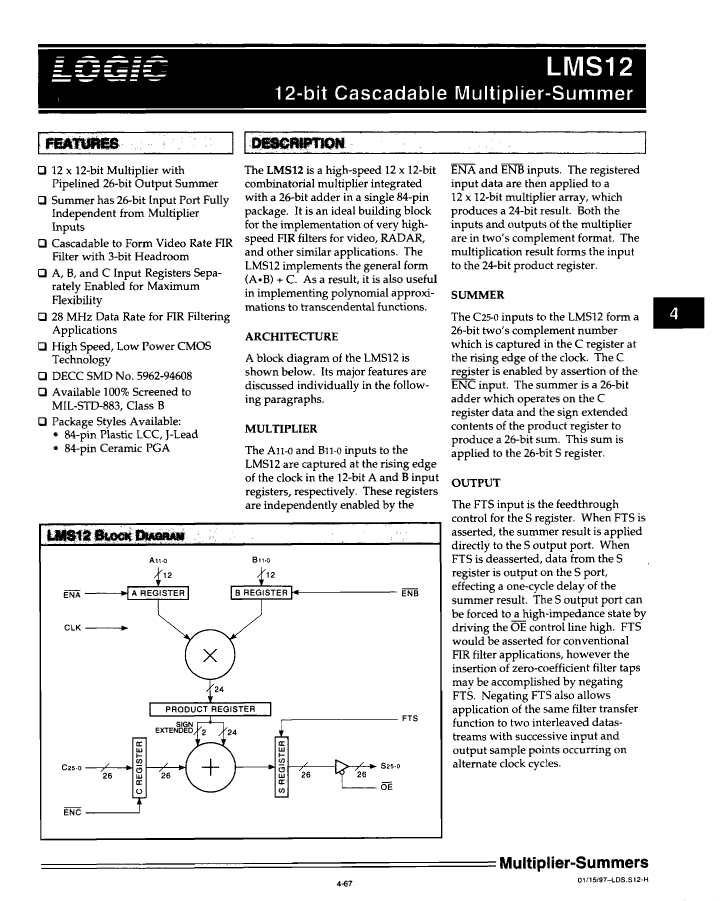

LMS12GC65 Overview

Multiplier Accumulator/Summer, 12-Bit, CMOS, CPGA84, CERAMIC, PGA-84

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LOGIC Devices
Parts packaging code	PGA
package instruction	PGA, PGA84M,11X11
Contacts	84
Reach Compliance Code	unknown

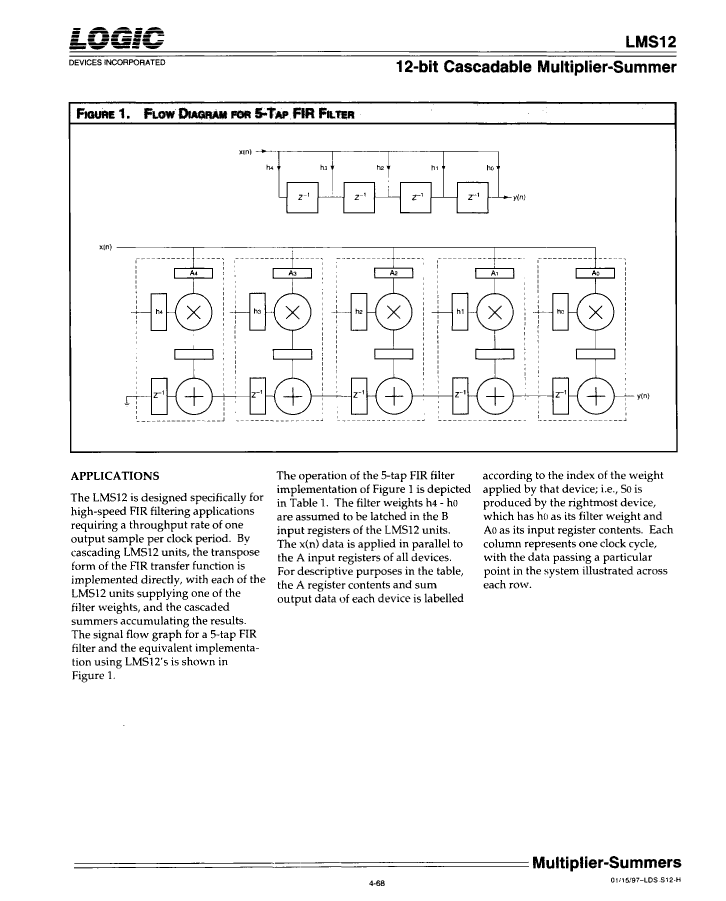

Other features	2 X 12 BIT DATA INPUT BUS; PIPELINED 26-BIT OUT SUMMER; SELECTABLE CONFIGURATION FOR FILTERING APPL
boundary scan	NO

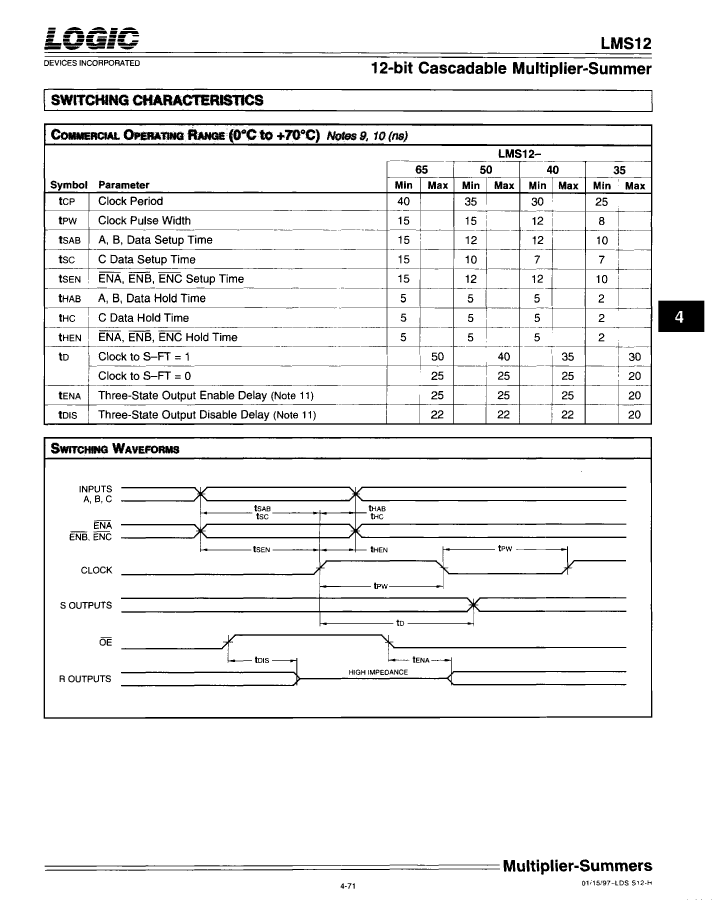

maximum clock frequency	25 MHz

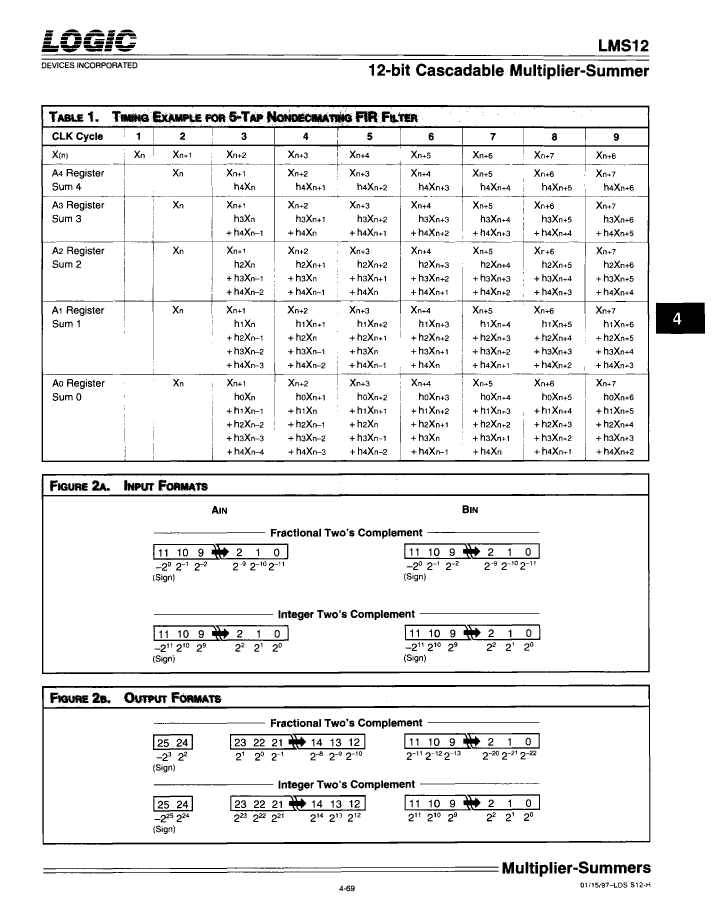

External data bus width	12
JESD-30 code	S-CPGA-P84
JESD-609 code	e0
length	28.0416 mm
low power mode	NO
Humidity sensitivity level	3
Number of terminals	84
Maximum operating temperature	70 °C
Minimum operating temperature
Output data bus width	26
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA84M,11X11
Package shape	SQUARE
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	225

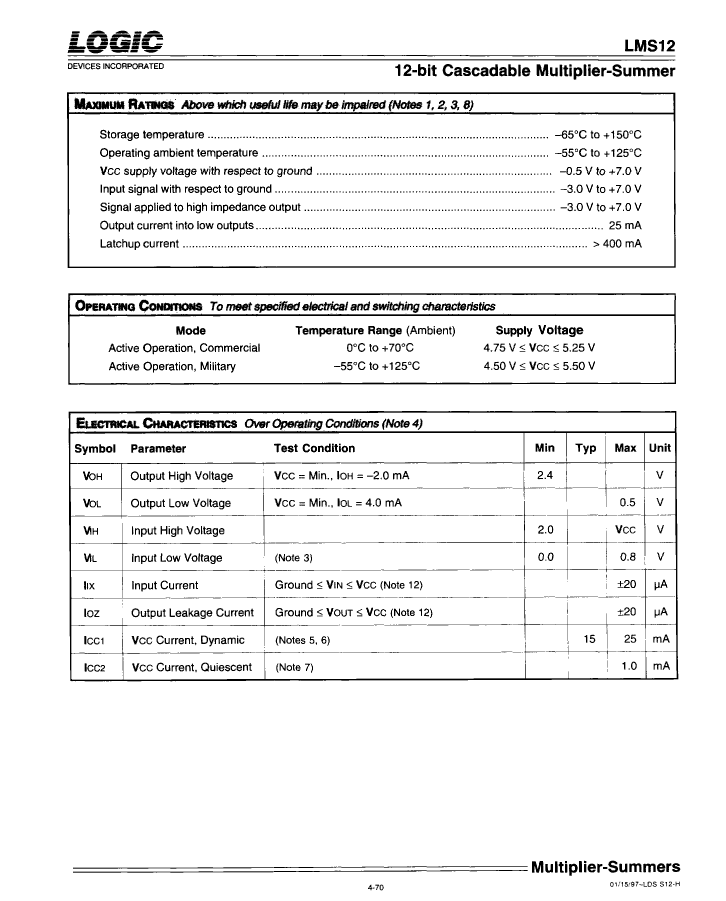

power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.445 mm
Maximum slew rate	25 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED
width	28.0416 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER
