EC3SMG-20-40.000MTR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> EC3SMG-20-40.000MTR

EC3SMG-20-40.000MTR: DescriptionQUARTZ CRYSTAL RESONATOR, 40 MHz, RESISTANCE WELD PACKAGE-4; CategoryPassive components Crystal/resonator; File Size111KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com

Download Datasheet Parametric View All

EC3SMG-20-40.000MTR Overview

QUARTZ CRYSTAL RESONATOR, 40 MHz, RESISTANCE WELD PACKAGE-4

EC3SMG-20-40.000MTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ECLIPTEK
package instruction	RESISTANCE WELD PACKAGE-4
Reach Compliance Code	not_compliant
Other features	AT-CUT CRYSTAL; TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	1000 µW
frequency stability	0.003%
frequency tolerance	15 ppm
JESD-609 code	e4
load capacitance	20 pF
Manufacturer's serial number	EC3SM
Installation features	SURFACE MOUNT
Nominal operating frequency	40 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L12.5XB4.95XH4.0 (mm)/L0.492XB0.195XH0.157 (inch)
Series resistance	40 Ω
surface mount	YES
Terminal surface	Silver (Ag)

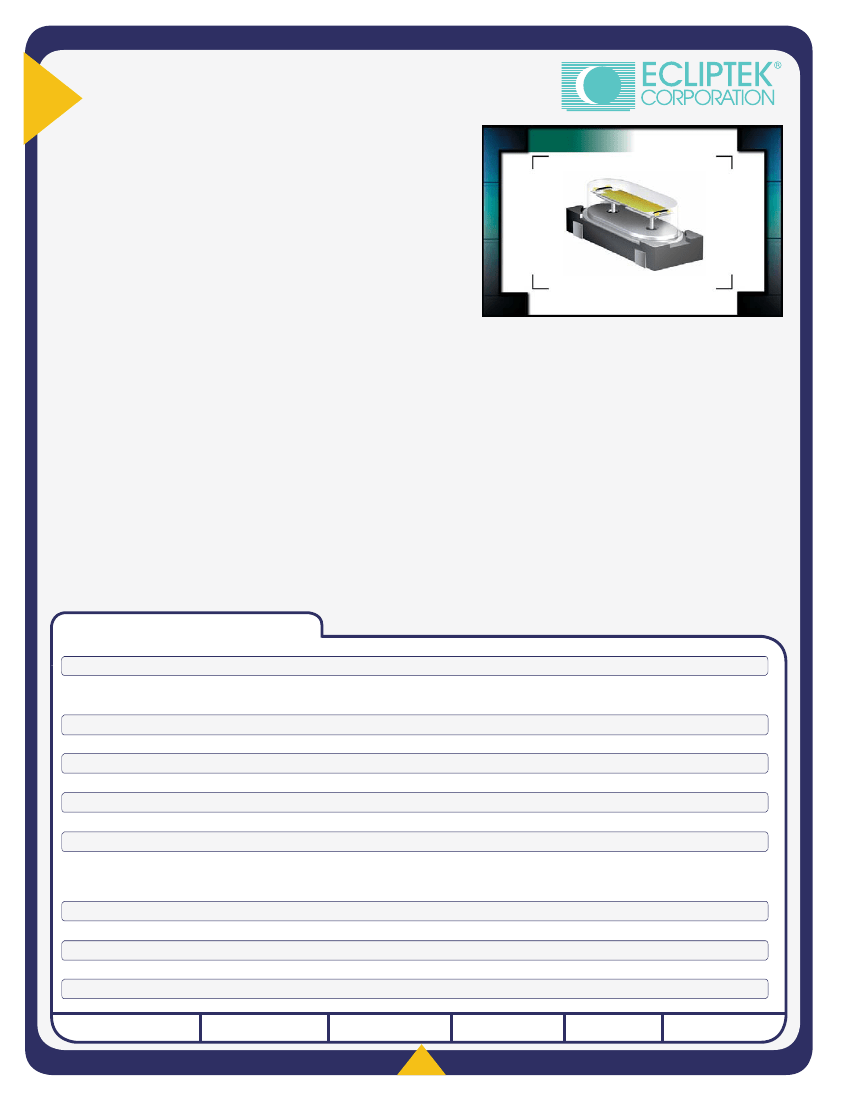

Preview

Download Datasheet

View All

EC3SM

Series

• Four pad surface mount short package

• AT or BT cut available

• Resistance weld seal

• Tight tolerance/stability

• Interchangeable with plastic

surface mount crystals

• Tape and reel available

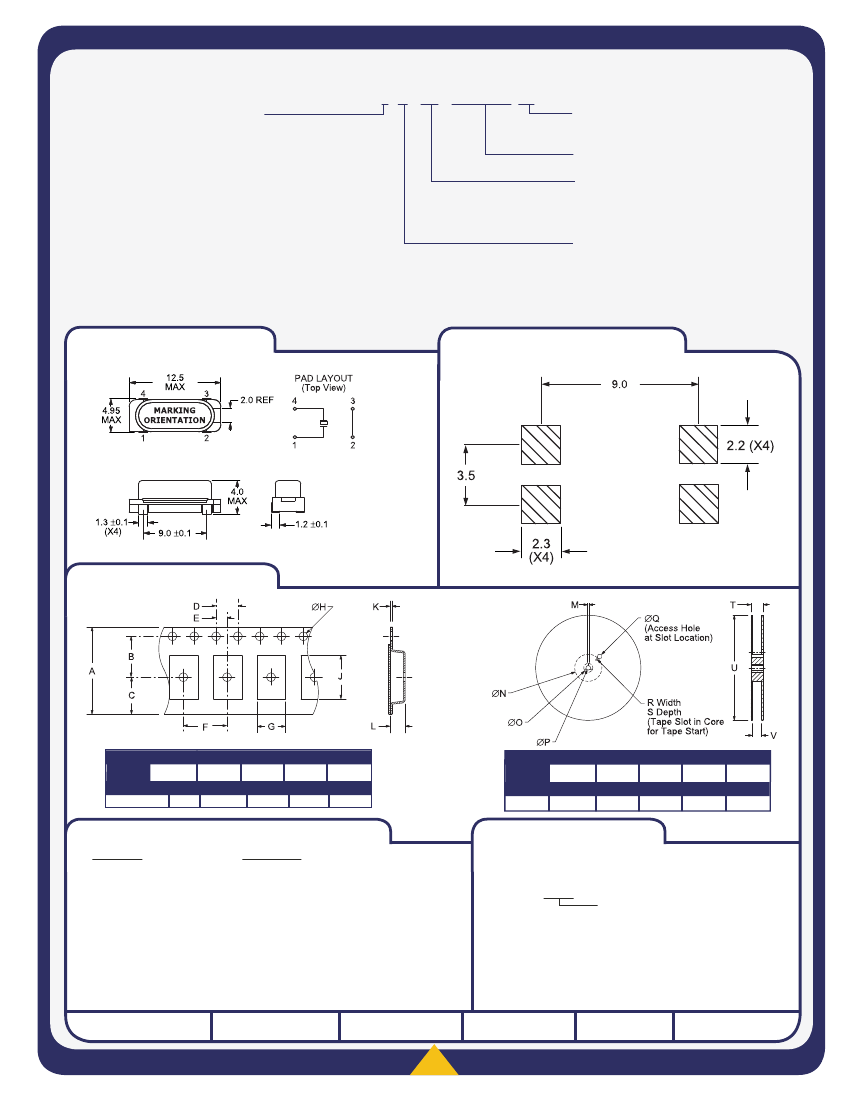

NOTES

EC3SM

H 4.0

L 12.5

W 4.95

CRYSTAL

_____________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Frequency Range

Frequency Tolerance / Stability

Over Operating Temperature Range

Operating Temperature Range

Aging (at 25°C)

Storage Temperature Range

Shunt Capacitance

Insulation Resistance

Drive Level

Load Capacitance (C

)

3.579545MHz to 40.000MHz

±50ppm / ±100ppm (Standard), ±30ppm / ±50ppm (AT cut only), ±15ppm / ±30ppm (AT cut only),

or ±15ppm / ±20ppm (AT cut only)

0°C to 70°C (Standard), -20°C to 70°C (AT cut only), or -40°C to 85°C (AT cut only)

±5ppm / year Maximum

-40°C to 85°C

7pF Maximum

500 Megaohms Minimum at 100V

1 mWatt Maximum

18pF Parallel Resonant (Standard), Custom C

≥10pF

Parallel Resonant, or Series Resonant

EQUIVALENT SERIES RESISTANCE (ESR), MODE OF OPERATION (MODE), AND CUT

Frequency Range

3.579545MHz to 4.999MHz

5.000MHz to 5.999MHz

6.000MHz to 7.999MHz

8.000MHz to 8.999MHz

9.000MHz to 9.999MHz

MANUFACTURER

ESR (Ω)

200 Max

150 Max

120 Max

90 Max

80 Max
