B1047AS-1R5N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> B1047AS-1R5N

B1047AS-1R5N: DescriptionGeneral Purpose Inductor, 1.5uH, 30%, 1 Element, Ferrite-Core, SMD, 3030, CHIP, 3030, ROHS COMPLIANT; CategoryPassive components inductor; File Size105KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

B1047AS-1R5N Overview

General Purpose Inductor, 1.5uH, 30%, 1 Element, Ferrite-Core, SMD, 3030, CHIP, 3030, ROHS COMPLIANT

B1047AS-1R5N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Murata
package instruction	CHIP, 3030, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	3030
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.014 Ω
Nominal inductance(L)	1.5 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	DS75LC
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
Package height	5 mm
Package length	7.6 mm
Package form	SMT
Package width	7.6 mm
method of packing	TR, 13 Inch
Maximum rated current	5.9 A
series	DS75LC
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

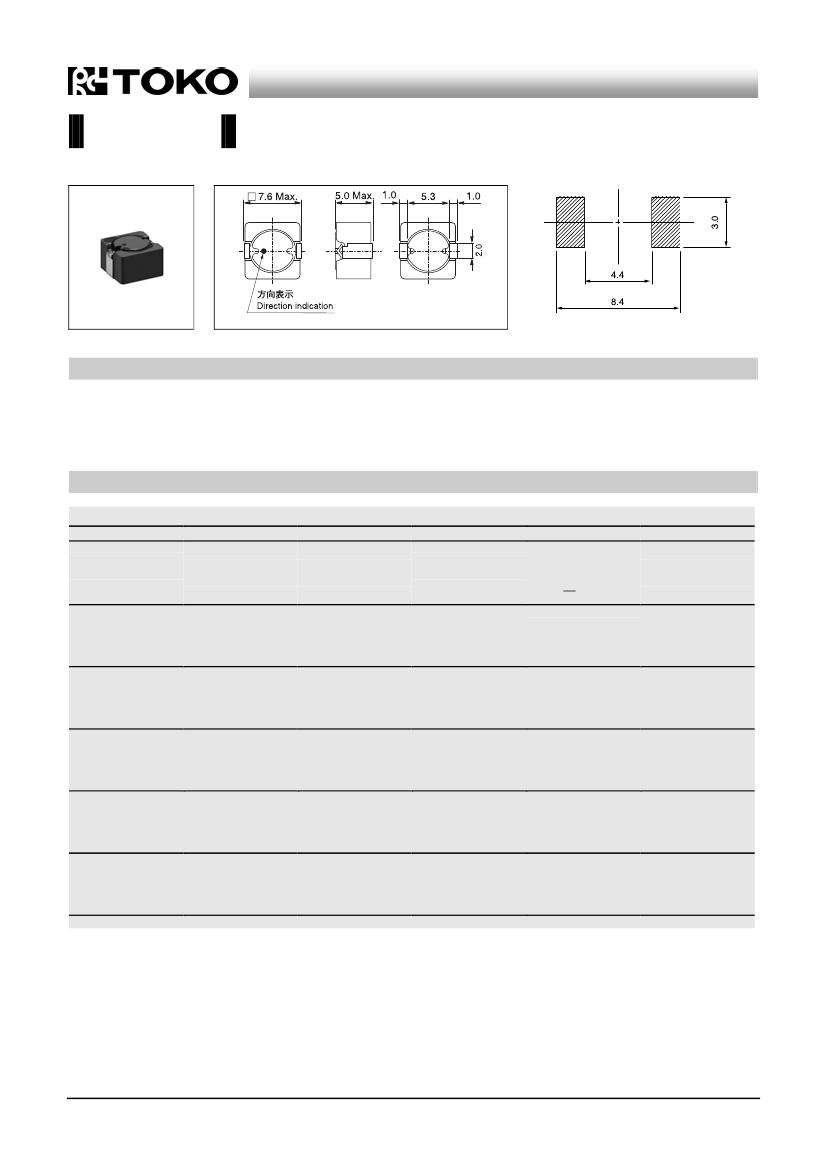

Ferrite Inductors

フェライトインダクタ

DS75LC

Inductance Range:

1.0~470H

Recommended patterns

推奨パターン図

4.4

8.4

(Unit: mm)

FEATURES



特長



7.6mm角Max.、高さ5.0mm Max.

閉磁路構造、½直流抵抗

大電流対応

RoHS指令対応

7.6 mm Max. square and 5.0 mm Max. height.

Magnetically shielded construction and low DC resistance.

Suitable for large currents.

RoHS compliant.

TOKO STANDARD PART NUMBERS

東光標準品一覧

TYPE DS75LC (Quantity/reel; 1000 PCS)

東光品番

TOKO

Part

Number

B1047AS-1R0N

B1047AS-1R5N

B1047AS-2R2N

B1047AS-2R7N

B1047AS-3R6N

B1047AS-4R7N

B1047AS-5R6N

B1047AS-6R8N

B1047AS-8R2N

B1047AS-100M

B1047AS-120M

B1047AS-150M

B1047AS-180M

B1047AS-220M

B1047AS-270M

B1047AS-330M

B1047AS-390M

B1047AS-470M

B1047AS-560M

B1047AS-680M

B1047AS-820M

B1047AS-101M

B1047AS-151M

B1047AS-221M

B1047AS-331M

B1047AS-471M

インダクタンス

Inductance

(H)

1.0

1.5

2.2

2.7

3.6

4.7

5.6

6.8

8.2

100

150

220

330

470

(1)

許容差

Tolerance

(%)



直流抵抗

(2)

Resistance

(m) Max. (Typ.)

12 (10)

14 (11)

16 (13)

18 (15)

23 (19)

26 (21)

32 (27)

36 (30)

42 (35)

53 (44)

63 (52)

71 (59)

110 (84)

120 (92)

130 (105)

170 (135)

180 (145)

200 (160)

230 (185)

280 (230)

320 (260)

460 (380)

710 (585)

1100 (915)

1400 (1160)

1700 (1400)

直流重畳許容電流

Inductance

(3)

Decrease Current

(A) Max. (Typ.)

L

=30%

9.2 (12.3)

7.7 (10.3)

6.5 (8.7)

5.6 (7.6)

5.0 (6.7)

4.5 (6.0)

4.0(5.4)

3.6 (4.9)

3.2 (4.3)

2.9 (3.9)

2.7 (3.7)

2.4 (3.3)

2.2 (2.9)

2.0 (2.7)

1.8 (2.5)

1.64 (2.2)

1.50 (2.0)

1.38 (1.8)

1.24 (1.7)

1.13 (1.5)

1.00 (1.4)

0.94 (1.3)

0.76 (1.0)

0.62 (0.8)

0.51 (0.7)

0.43 (0.6)

(3)

3.0

温度上昇許容電流

Temperature

(3)

Rise Current

T=40C

(A) Max. (Typ.)

6.4 (7.6)

5.9 (7.0)

5.5 (6.5)

5.1 (6.0)

4.4 (5.2)

4.1 (4.9)

3.5 (4.1)

3.4 (4.0)

3.0 (3.6)

2.7 (3.2)

2.4 (2.8)

2.2 (2.6)

1.9 (2.2)

1.8 (2.1)

1.6 (1.9)

1.5 (1.7)

1.4 (1.6)

1.3 (1.5)

1.2 (1.4)

1.0 (1.2)

0.94 (1.1)

0.77 (0.91)

0.60 (0.71)

0.47 (0.55)

0.41 (0.48)

0.37 (0.44)

(3)

continued on next page

次頁へ続く

B1047AS-1R5N Related Products

	B1047AS-1R5N	B1047AS-100M	B1047AS-221M	B1047AS-6R8N	B1047AS-101M	B1047AS-470M	B1047AS-151M
Description	General Purpose Inductor, 1.5uH, 30%, 1 Element, Ferrite-Core, SMD, 3030, CHIP, 3030, ROHS COMPLIANT	General Purpose Inductor, 10uH, 20%, 1 Element, Ferrite-Core, SMD, 3030, CHIP, 3030, ROHS COMPLIANT	General Purpose Inductor, 220uH, 20%, 1 Element, Ferrite-Core, SMD, 3030, CHIP, 3030, ROHS COMPLIANT	General Purpose Inductor, 6.8uH, 30%, 1 Element, Ferrite-Core, SMD, 3030, CHIP, 3030, ROHS COMPLIANT	General Purpose Inductor, 100uH, 20%, 1 Element, Ferrite-Core, SMD, 3030, CHIP, 3030, ROHS COMPLIANT	General Purpose Inductor, 47uH, 20%, 1 Element, Ferrite-Core, SMD, 3030, CHIP, 3030, ROHS COMPLIANT	General Purpose Inductor, 150uH, 20%, 1 Element, Ferrite-Core, SMD, 3030, CHIP, 3030, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	CHIP, 3030, ROHS COMPLIANT	3030	3030	3030	CHIP, 3030, ROHS COMPLIANT	CHIP, 3030, ROHS COMPLIANT	3030
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	3030	3030	3030	3030	3030	3030	3030
structure	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded
core material	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
DC Resistance	0.014 Ω	0.053 Ω	1.1 Ω	0.036 Ω	0.46 Ω	0.2 Ω	0.71 Ω
Nominal inductance(L)	1.5 µH	10 µH	220 µH	6.8 µH	100 µH	47 µH	150 µH
Inductor Applications	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Package height	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Package length	7.6 mm	7.6 mm	7.6 mm	7.6 mm	7.6 mm	7.6 mm	7.6 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	7.6 mm	7.6 mm	7.6 mm	7.6 mm	7.6 mm	7.6 mm	7.6 mm
method of packing	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch
Maximum rated current	5.9 A	2.7 A	0.47 A	3.4 A	0.77 A	1.3 A	0.6 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES	YES	YES
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	30%	20%	20%	30%	20%	20%	20%
Maker	Murata	-	-	-	Murata	Murata	Murata
Manufacturer's serial number	DS75LC	-	-	DS75LC	DS75LC	DS75LC	-
series	DS75LC	-	-	DS75LC	DS75LC	DS75LC	-
