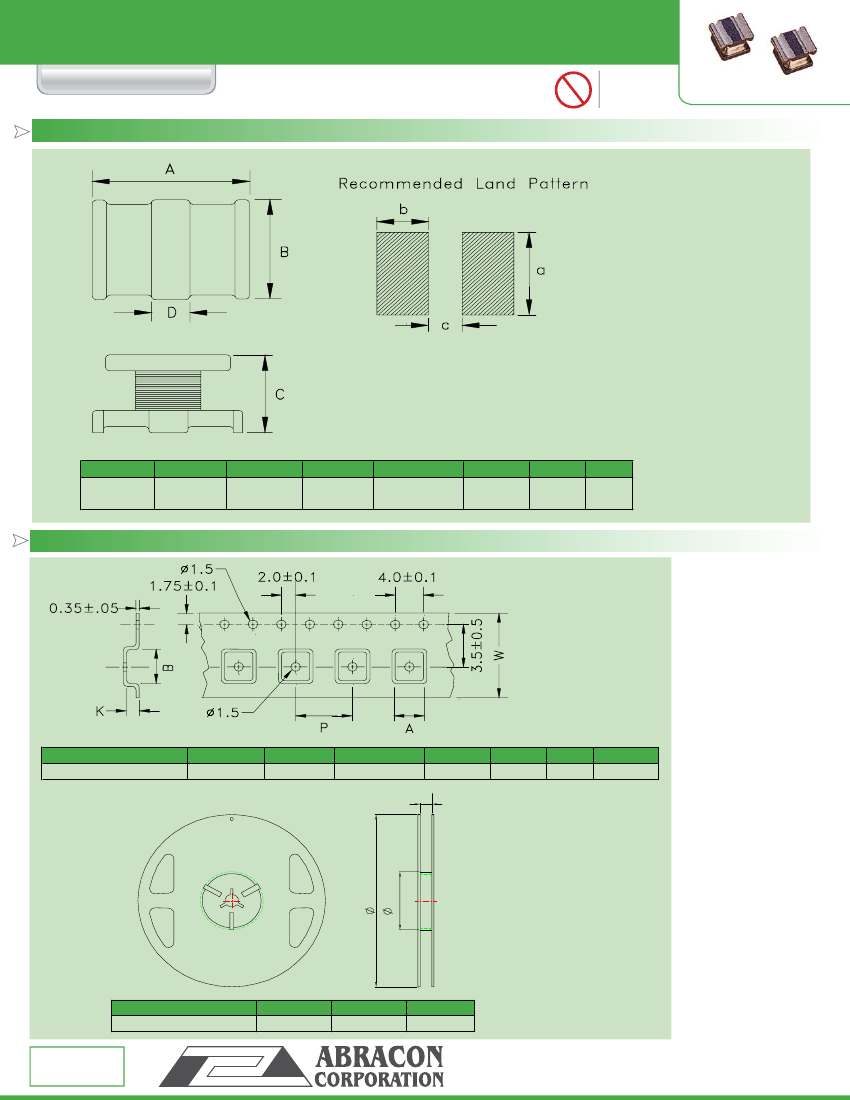

UNSHIELDED SMD POWER INDUCTOR
AISC-2220H
FEATURES:
• Excellent solderbility and resistance
• Suitable for flow and reflow soldering
• Packed in embossed carrier tape and can be used by
automatic mounting machines
APPLICATIONS:
• Personal Computers, disk drives and computer peripherals
• Excellent for power line DC/DC conversion applications
Pb
RoHS
Compliant
5.7 x 5.0 x 4.5mm
| | | | | | | | | | | | | | |
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N:
Operating temperature:
Storage temperature:
Test Condition:
Part Number
AISC-2220H-1R0
AISC-2220H-1R4
AISC-2220H-1R8
AISC-2220H-2R2
AISC-2220H-2R7
AISC-2220H-3R3
AISC-2220H-3R9
AISC-2220H-4R7
AISC-2220H-5R6
AISC-2220H-6R8
AISC-2220H-8R2
AISC-2220H-100
AISC-2220H-120
AISC-2220H-150
AISC-2220H-180
AISC-2220H-220
AISC-2220H-270
AISC-2220H-330
AISC-2220H-390
AISC-2220H-470
AISC-2220H-560
AISC-2220H-680
AISC-2220H-820
AISC-2220H-101
AISC-2220H-121
AISC-2220H-151
AISC-2220H-181
AISC-2220H-221
AISC-2220H-271
AISC-2220H-331
AISC-2220H-391
AISC-2220H-471
AISC-2220H-561
AISC-2220H-681
AISC-2220H-821
AISC-2220H-102
L (μH)
1.00
1.40
1.80
2.20
2.70
3.30
3.90
4.70
5.60
6.80
8.20
10.00
12.00
15.00
18.00
22.00
27.00
33.00
39.00
47.00
56.00
68.00
82.00
100.00
120.00
150.00
180.00
220.00
270.00
330.00
390.00
470.00
560.00
680.00
820.00
1000.00
AISC-2220H-xxx Series
-25°C to + 85°C
-25°C to + 85°C, 70% RH max.
1.0V/1.0MHz
Rdc (mΩ) Idc (mA)
max.
max.
30
3000
44
2000
85
1800
100
1750
110
1700
120
1650
130
1600
140
1550
170
1500
200
1400
220
1350
250
1250
270
1200
300
1100
310
1050
370
950
400
900
600
850
750
750
850
700
900
650
1200
550
1500
500
1600
450
1900
400
2200
380
2500
350
3500
300
4000
250
6000
200
6500
180
12000
150
12500
140
14500
130
15500
110
17000
100
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
AISC - 2220H -
-
-
Inductance Code
Please refer to the Table
Tolerance Code
J
K
M
±5%
±10%
±20%
Packaging
T
Tape & Reel
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 08.24.07
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
UNSHIELDED SMD POWER INDUCTOR
AISC-2220H
OUTLINE DRAWING:
Pb
RoHS
Compliant
5.7 x 5.0 x 4.5mm
| | | | | | | | | | | | | | |
Series
AISC-2220H
A
0.224±0.012
B
0.197±0.012
C
0.177±0.012
D(ref)
0.079
(2.0)
a(ref)
0.197
(5.0)
b(ref)
0.059
(1.5)
c(ref)
0.071
(1.8)
(5.7 ±0.3)
(5.0 ±0.3)
(4.5 ±0.3)
Dimensions: Inches
(mm)
TAPE & REEL:
Tape and reel 1,000pcs/reel
Dimensions of Tape
ABRACON P/N
AISC-2220H
A (mm)
5.3 ± 0.1
B (mm)
6.2 ± 0.1
K (mm)
5.4 ± 0.1
P (mm) T (mm) W(mm)
PCS/REEL
12.0 ± 0.1
0.35 ± 0.05
12.0 ± 0.3
1000
Dimensions of Reel
series
AISC-2220H
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
A
330-0.5
C
12.4+2.0
A
Z
Z
100±1.0
C
Dimensions: mm
Revised: 08.24.07
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
