TN9203 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> TN9203

TN9203: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size59KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

TN9203 Overview

RF AMPLIFIER MODEL

TN9203 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
structure	COMPONENT
Gain	30 dB
Maximum input power (CW)	6 dBm
Maximum operating frequency	200 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

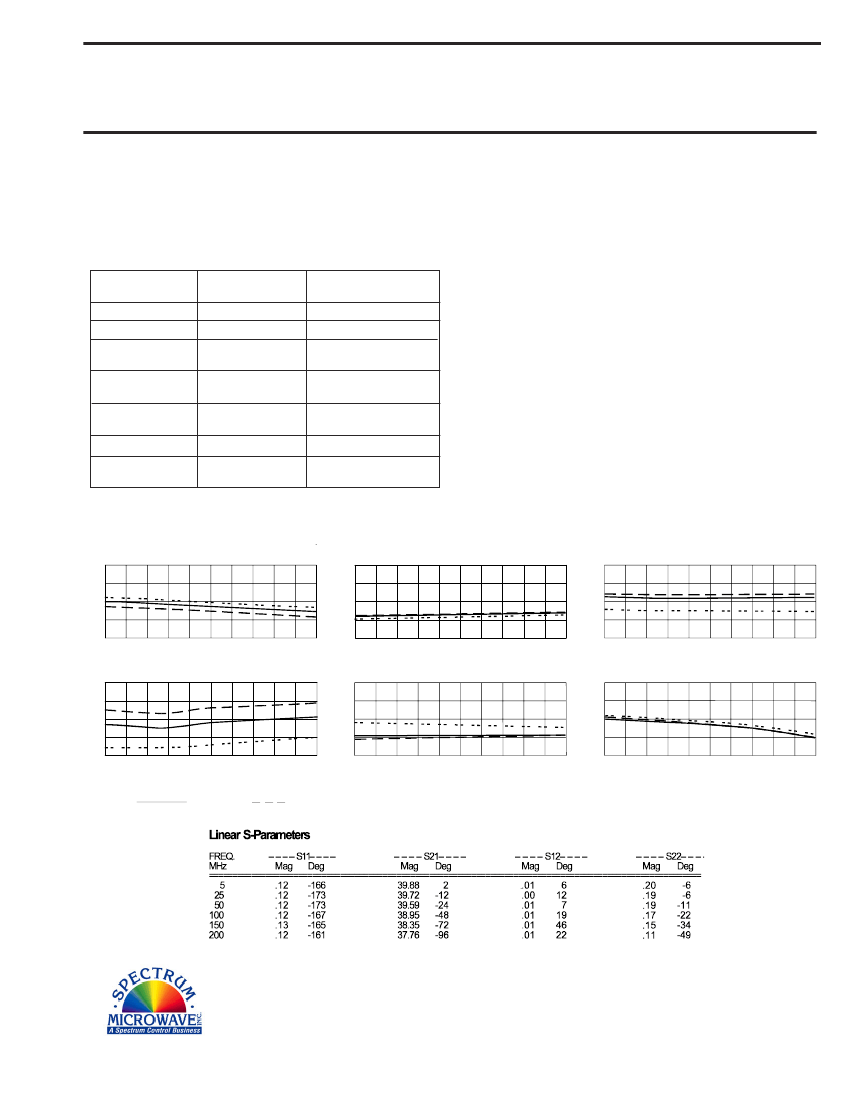

RF AMPLIFIER

MODEL

TZ9203

Features

Lower Cost; High Gain: 31.5 dB Typ.

Low Noise Figure: <3.5 dB Typical

Operating Temp. -55 ºC to +85 ºC

Environmental Screening Available

Available as:

TZ9203, 4 Pin TO-8 (T4)

TN9203, 4 Pin Surface Mount (SM3)

FP9203, 4 Pin Flatpack (FP4)

BX9203, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ...... +41 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +35 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +19 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise figure (dB)

Power

Vdc

TYPICAL

Ta= 25

ºC

5 - 200 MHz

31.5

+7.5

-40

<1.5:1

<3.5

+15

MIN/MAX

Ta = -55

ºC

to +85

ºC

5 - 200 MHz

30.0 Min.

+6.0 Min.

-36 Max.

2.0:1 Max.

4.0 Max.

+15

40 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................... + 6 dBm

Short Term RF Input Power.......50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................. 0.5 Watt ( 3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 5 MHz

Stop 200 MHz

Gain (dB)

- 15

- 30

- 45

- 60

Reverse Isolation (dB)

Noise Figure (dB)

Start 5 MHz

Stop 200 MHz

Start 5 MHz

Stop 200 MHz

+10

+ 9

+ 8

+ 7

+ 6

Start 5 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Stop 200 MHz

Start 5 MHz

Input VSWR

2.0

1.5

1.0

Stop 200 MHz

Start 5 MHz

Output VSWR

Stop 200 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

2/23/07

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

Rev.

TN9203 Related Products

	TN9203	BX9203	FP9203	TZ9203
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	30 dB	30 dB	30 dB	30 dB
Maximum operating frequency	200 MHz	200 MHz	200 MHz	200 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Maximum input power (CW)	6 dBm	6 dBm	6 dBm	-
Maximum operating temperature	85 °C	85 °C	85 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
