IDT74FCT163373CE datasheet, PDF

Datasheet> All Categories > logic> logic> IDT74FCT163373CE

IDT74FCT163373CE: DescriptionBus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, 0.025 INCH PITCH, CERPACK-48; Categorylogic logic; File Size186KB，8 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT74FCT163373CE Overview

Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, 0.025 INCH PITCH, CERPACK-48

IDT74FCT163373CE Parametric

Parameter Name	Attribute value
Maker	IDT (Integrated Device Technology)
Parts packaging code	DFP
package instruction	DFP,
Contacts	48
Reach Compliance Code	unknown
series	FCT
JESD-30 code	R-GDFP-F48
JESD-609 code	e0
length	15.875 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	2
Number of ports	2
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	5.5 ns
Certification status	Not Qualified
Maximum seat height	2.413 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	0.635 mm
Terminal location	DUAL
width	9.652 mm

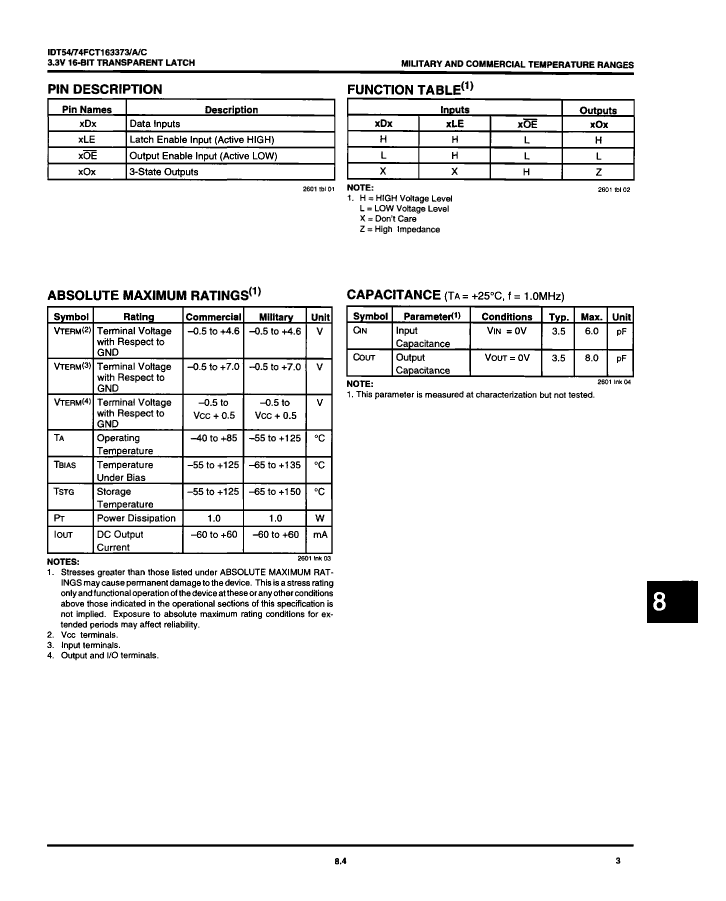

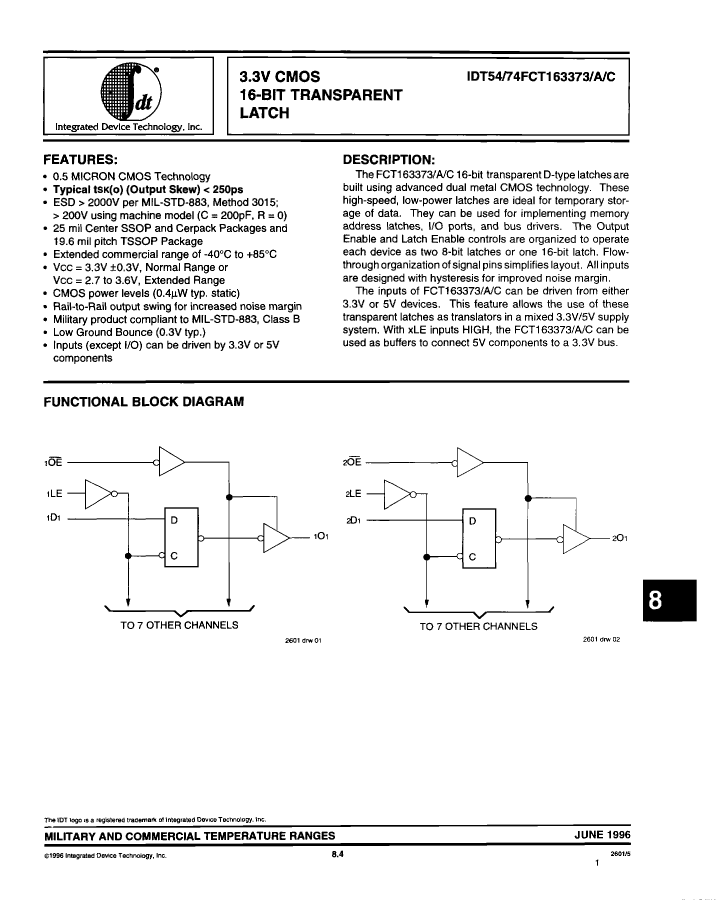

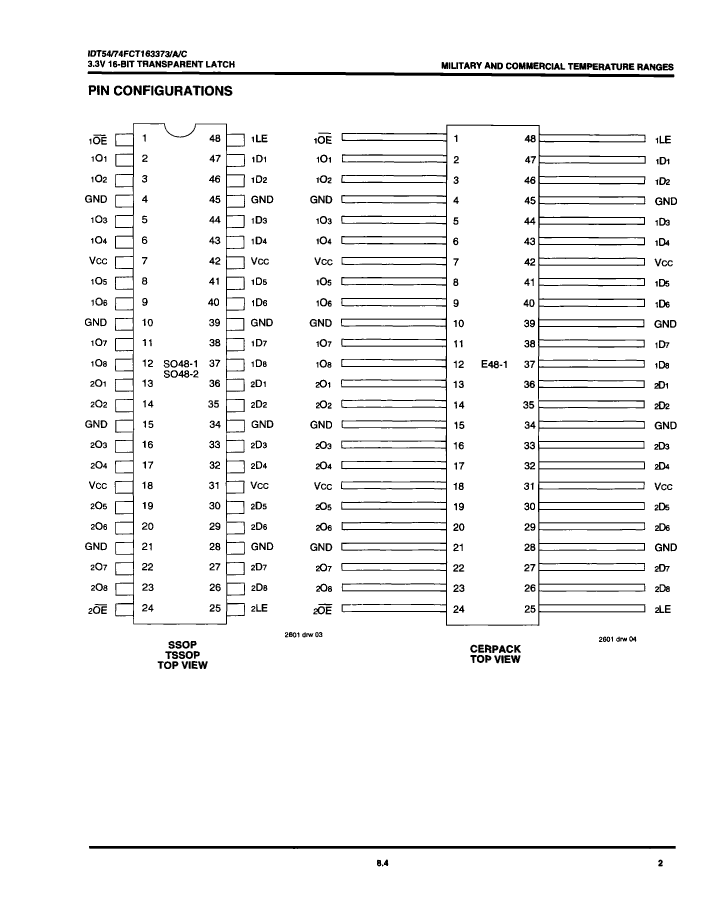

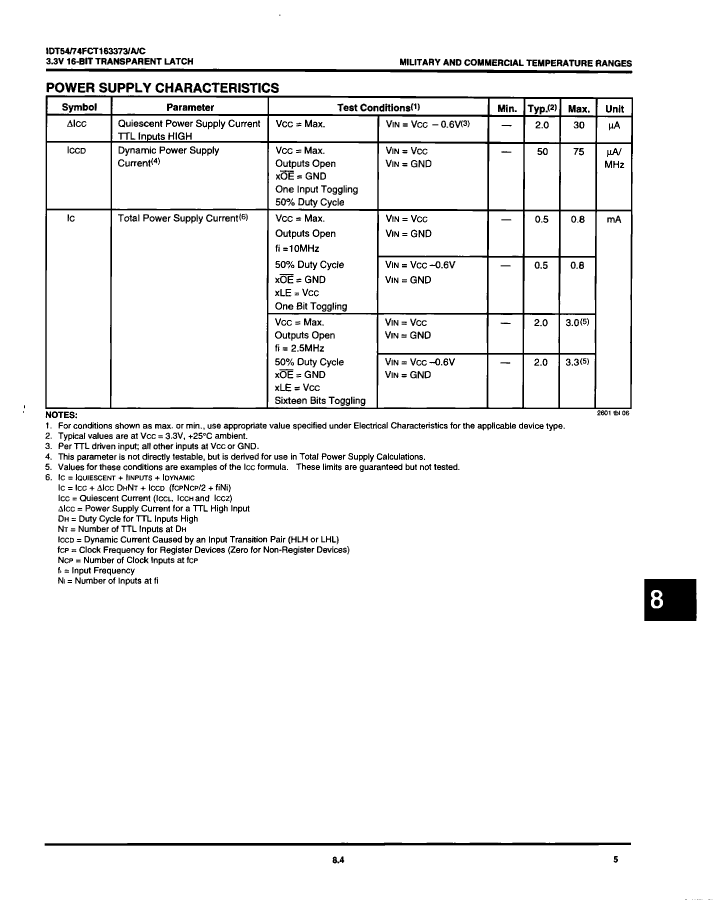

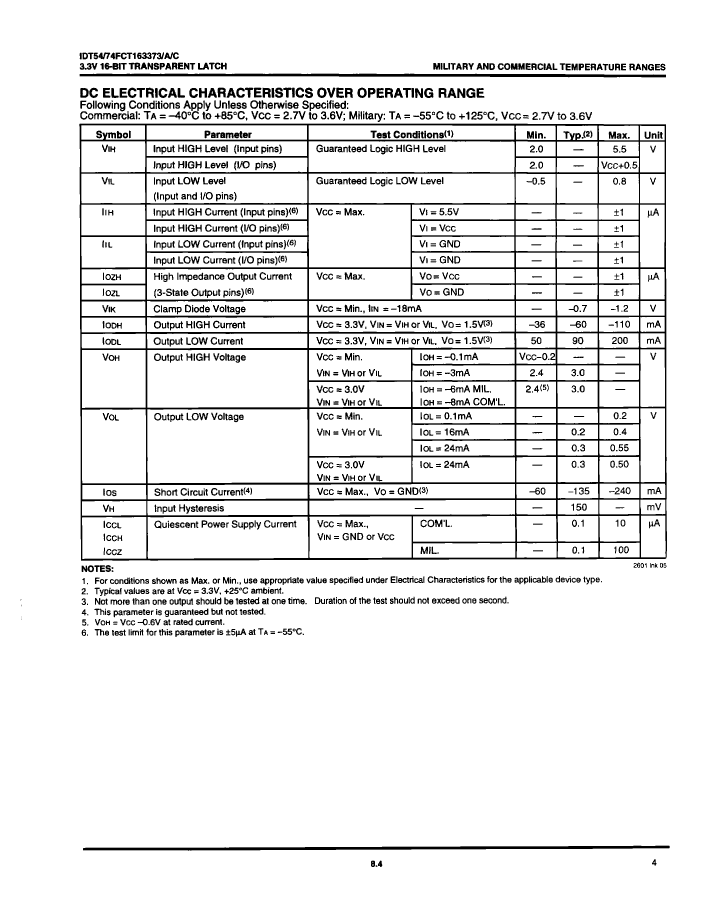

Preview

Download Datasheet

View All

IDT74FCT163373CE Related Products

	IDT74FCT163373CE	IDT54FCT163373AEB	IDT54FCT163373EB	IDT74FCT163373PVT/R	IDT74FCT163373AE	IDT74FCT163373E	IDT74FCT163373PAT/R
Description	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, 0.025 INCH PITCH, CERPACK-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, 0.025 INCH PITCH, CERPACK-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, 0.025 INCH PITCH, CERPACK-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.300 INCH, 0.025 INCH PITCH, SSOP-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, 0.025 INCH PITCH, CERPACK-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, 0.025 INCH PITCH, CERPACK-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 6.10 MM, 0.50 MM PITCH, TSSOP-48
Parts packaging code	DFP	DFP	DFP	SSOP	DFP	DFP	TSSOP
package instruction	DFP,	DFP, FL48,.4,25	DFP, FL48,.4,25	SSOP,	DFP,	DFP,	TSSOP,
Contacts	48	48	48	48	48	48	48
Reach Compliance Code	unknown	not_compliant	not_compliant	unknown	unknown	unknown	unknown
series	FCT	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-GDFP-F48	R-GDFP-F48	R-GDFP-F48	R-PDSO-G48	R-GDFP-F48	R-GDFP-F48	R-PDSO-G48
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
length	15.875 mm	15.875 mm	15.875 mm	15.875 mm	15.875 mm	15.875 mm	12.5 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8	8	8	8	8
Number of functions	2	2	2	2	2	2	2
Number of ports	2	2	2	2	2	2	2
Number of terminals	48	48	48	48	48	48	48
Maximum operating temperature	85 °C	125 °C	125 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DFP	DFP	DFP	SSOP	DFP	DFP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	SMALL OUTLINE, SHRINK PITCH	FLATPACK	FLATPACK	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	5.5 ns	9.8 ns	15 ns	13 ns	8.5 ns	13 ns	13 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.413 mm	2.413 mm	2.413 mm	2.794 mm	2.413 mm	2.413 mm	1.1 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	FLAT	FLAT	FLAT	GULL WING	FLAT	FLAT	GULL WING
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	9.652 mm	9.652 mm	9.652 mm	7.5 mm	9.652 mm	9.652 mm	6.1 mm
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
