CMLD6263BK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> CMLD6263BK

CMLD6263BK: DescriptionRectifier Diode, Schottky, 2 Element, 0.015A, 70V V(RRM), Silicon, PICOMINI-6; CategoryDiscrete semiconductor diode; File Size577KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CMLD6263BK Overview

Rectifier Diode, Schottky, 2 Element, 0.015A, 70V V(RRM), Silicon, PICOMINI-6

CMLD6263BK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
package instruction	PICOMINI-6
Contacts	6
Reach Compliance Code	not_compliant
ECCN code	EAR99
Configuration	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.41 V
JESD-30 code	R-PDSO-F6
JESD-609 code	e0
Number of components	2
Number of terminals	6
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	0.015 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.25 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	70 V
Maximum reverse current	0.2 µA
Maximum reverse recovery time	0.005 µs
Reverse test voltage	50 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal location	DUAL

CMLD6263BK Preview

CMLD6263

SURFACE MOUNT

DUAL, ISOLATED

HIGH VOLTAGE

SILICON SCHOTTKY DIODES

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMLD6263 Series

incorporates two galvanically isolated, high voltage,

low VF Silicon Diodes in a space saving SOT-563

surface mount package. These diodes are designed

for fast switching applications requiring a low forward

voltage drop.

MARKING CODE: 63D

SOT-563 CASE

FEATURES:

• High Voltage (70V)

• Low Forward Voltage

• Galvanically Isolated

MAXIMUM RATINGS:

(TA=25°C)

Peak Repetitive Reverse Voltage

Continuous Forward Current

Peak Forward Surge Current, tp=1.0s

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

SYMBOL

VRRM

IFSM

TJ, Tstg

250

-65 to +150

500

UNITS

°C

°C/W

ELECTRICAL CHARACTERISTICS PER DIODE:

(TA=25°C unless otherwise noted)

SYMBOL TEST CONDITIONS

MIN

TYP

MAX

BVR

trr

VR=50V

IR=10μA

IF=1.0mA

VR=0, f=1.0MHz

IR=IF=10mA, Irr=1.0mA, RL=100Ω

395

410

2.0

5.0

200

UNITS

R3 (18-January 2010)

CMLD6263

SURFACE MOUNT

DUAL, ISOLATED

HIGH VOLTAGE

SILICON SCHOTTKY DIODES

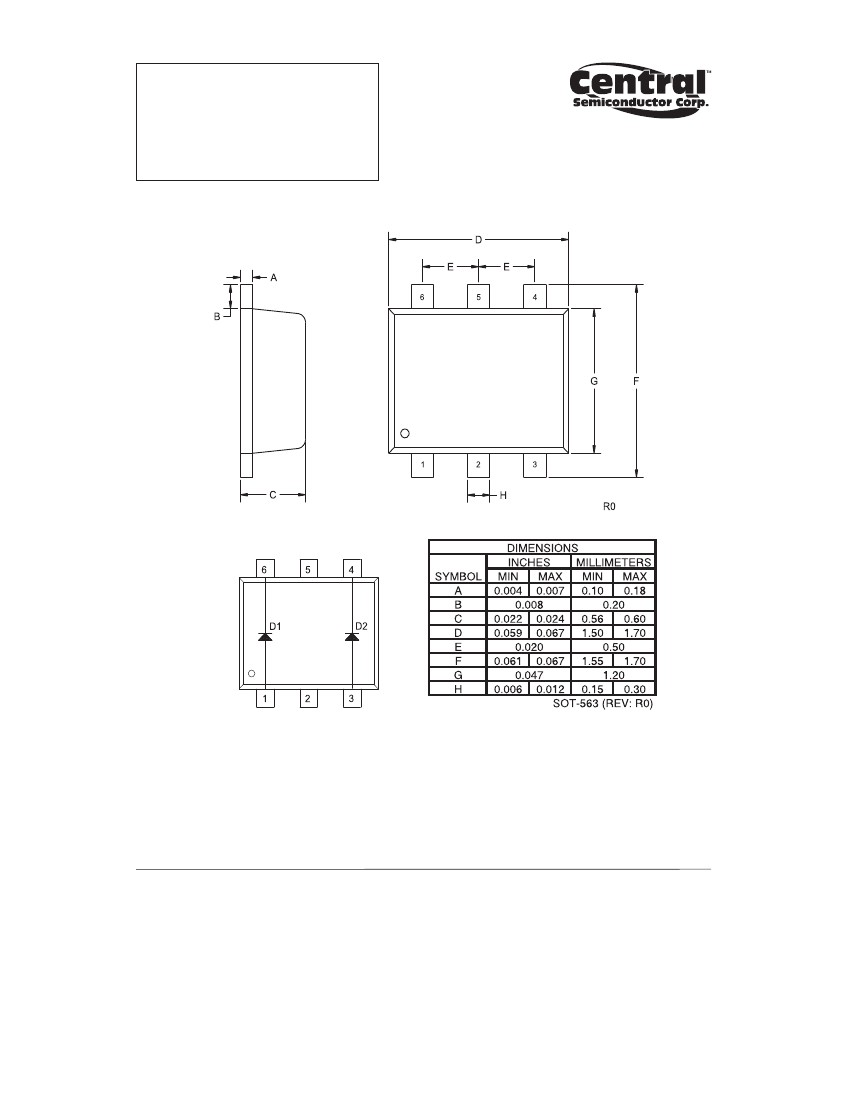

SOT-563 CASE - MECHANICAL OUTLINE

PIN CONFIGURATION

LEAD CODE:

1) Anode D1

2) NC

3) Anode D2

4) Cathode D2

5) NC

6) Cathode D1

MARKING CODE: 63D

R3 (18-January 2010)

w w w. c e n t r a l s e m i . c o m

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

CMLD6263BK Related Products

	CMLD6263BK	CMLD6263TR
Description	Rectifier Diode, Schottky, 2 Element, 0.015A, 70V V(RRM), Silicon, PICOMINI-6	Rectifier Diode, Schottky, 2 Element, 0.015A, 70V V(RRM), Silicon, PICOMINI-6
Is it Rohs certified?	incompatible	incompatible
Maker	Central Semiconductor	Central Semiconductor
package instruction	PICOMINI-6	PICOMINI-6
Contacts	6	6
Reach Compliance Code	not_compliant	not_compliant
ECCN code	EAR99	EAR99
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.41 V	0.41 V
JESD-30 code	R-PDSO-F6	R-PDSO-F6
JESD-609 code	e0	e0
Number of components	2	2
Number of terminals	6	6
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C
Maximum output current	0.015 A	0.015 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.25 W	0.25 W
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	70 V	70 V
Maximum reverse current	0.2 µA	0.2 µA
Maximum reverse recovery time	0.005 µs	0.005 µs
Reverse test voltage	50 V	50 V
surface mount	YES	YES
technology	SCHOTTKY	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	FLAT
Terminal location	DUAL	DUAL
