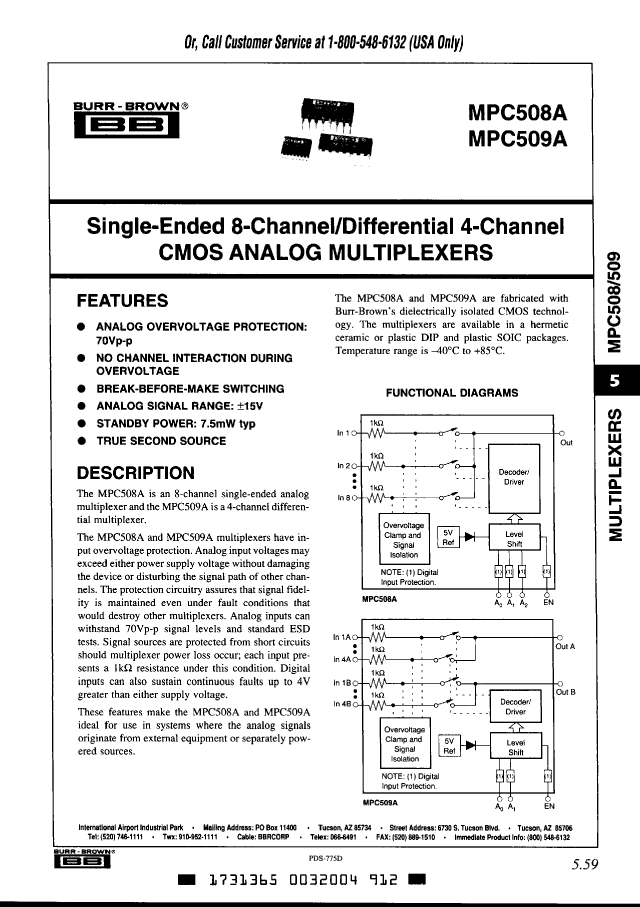

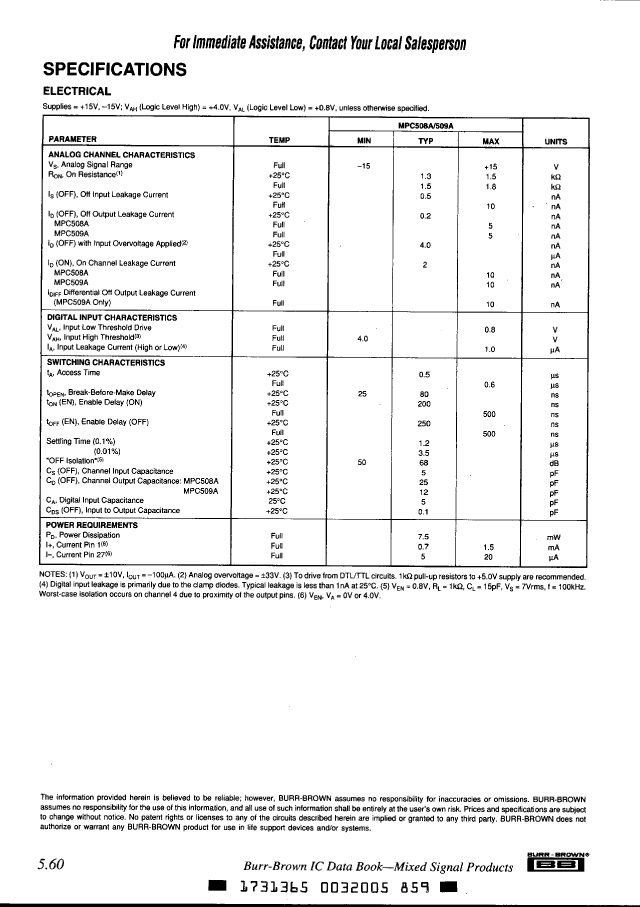

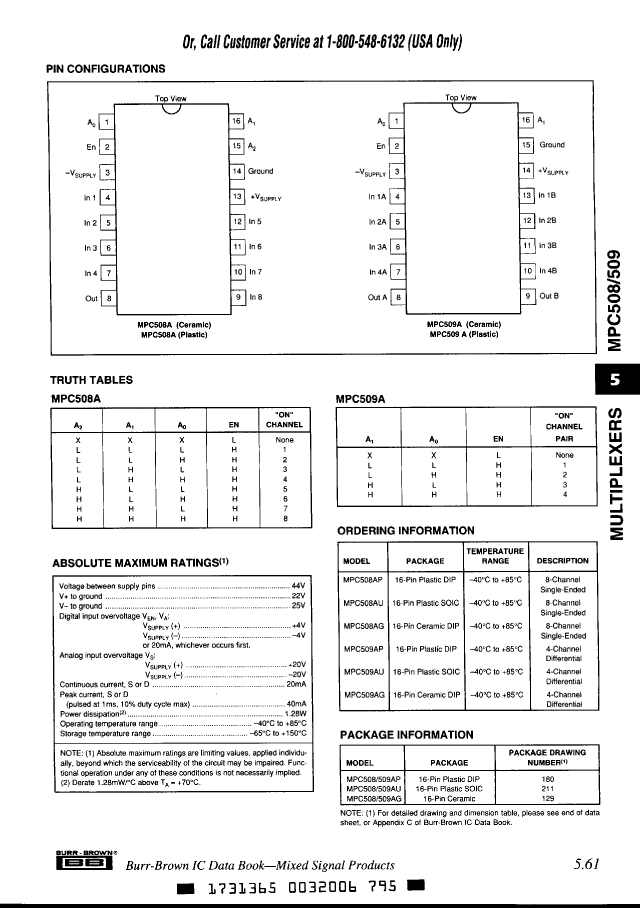

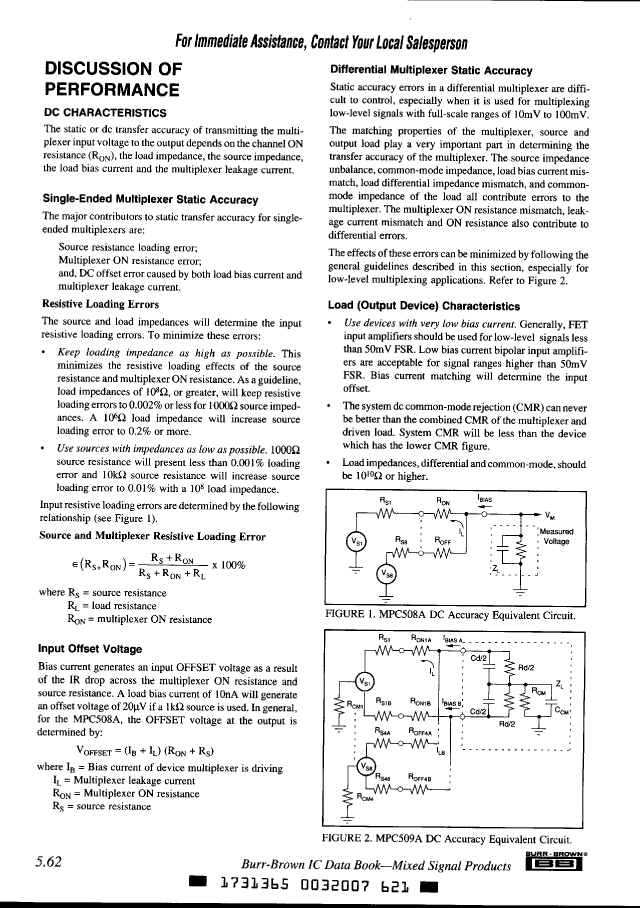

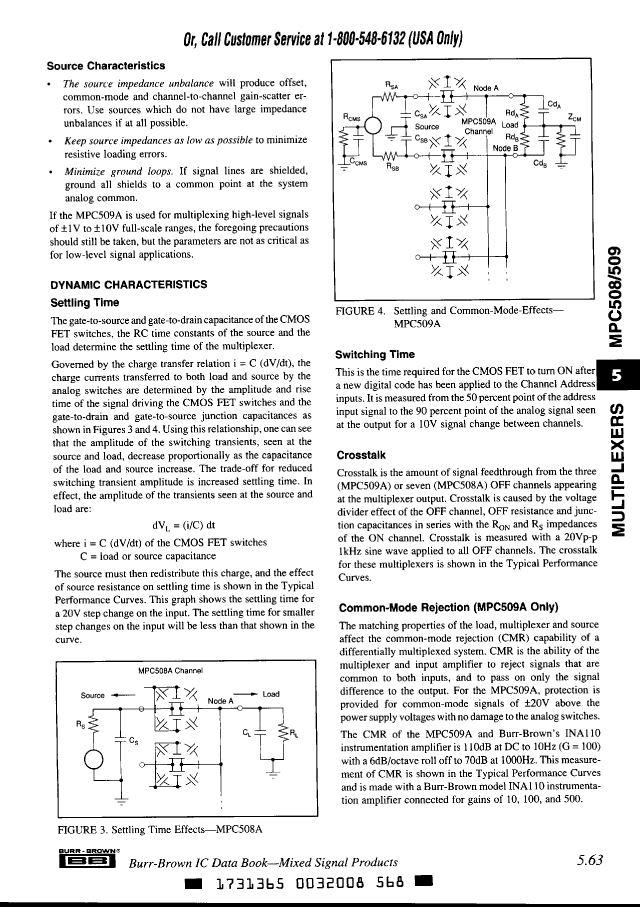

MPC509AG |
MPC508AG |
| Description |
Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16, |
Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16, |
| Is it Rohs certified? |
incompatible |
incompatible |
| Maker |
Burr-Brown |
Burr-Brown |
| package instruction |
DIP, DIP16,.3 |
DIP, DIP16,.3 |
| Reach Compliance Code |
unknown |
unknown |
| Analog Integrated Circuits - Other Types |
DIFFERENTIAL MULTIPLEXER |
SINGLE-ENDED MULTIPLEXER |
| JESD-30 code |
R-CDIP-T16 |
R-CDIP-T16 |
| JESD-609 code |
e0 |
e0 |
| Nominal Negative Supply Voltage (Vsup) |
-15 V |
-15 V |
| Number of channels |
4 |
8 |
| Number of functions |
1 |
1 |
| Number of terminals |
16 |
16 |
| Nominal off-state isolation |
68 dB |
68 dB |
| Maximum on-state resistance (Ron) |
1500 Ω |
1500 Ω |
| Maximum operating temperature |
85 °C |
85 °C |
| Minimum operating temperature |
-40 °C |
-40 °C |
| Package body material |
CERAMIC, METAL-SEALED COFIRED |
CERAMIC, METAL-SEALED COFIRED |
| encapsulated code |
DIP |
DIP |
| Encapsulate equivalent code |
DIP16,.3 |
DIP16,.3 |
| Package shape |
RECTANGULAR |
RECTANGULAR |
| Package form |
IN-LINE |
IN-LINE |
| Peak Reflow Temperature (Celsius) |
NOT SPECIFIED |
NOT SPECIFIED |
| power supply |
+-15 V |
+-15 V |
| Certification status |
Not Qualified |
Not Qualified |
| Maximum signal current |
0.02 A |
0.02 A |
| Maximum supply current (Isup) |
1.5 mA |
1.5 mA |
| Nominal supply voltage (Vsup) |
15 V |
15 V |
| surface mount |
NO |
NO |
| Maximum disconnect time |
500 ns |
500 ns |
| Maximum connection time |
500 ns |
500 ns |
| switch |
BREAK-BEFORE-MAKE |
BREAK-BEFORE-MAKE |
| technology |
CMOS |
CMOS |
| Temperature level |
INDUSTRIAL |
INDUSTRIAL |
| Terminal surface |
Tin/Lead (Sn/Pb) |
Tin/Lead (Sn/Pb) |
| Terminal form |
THROUGH-HOLE |
THROUGH-HOLE |
| Terminal pitch |
2.54 mm |
2.54 mm |
| Terminal location |
DUAL |
DUAL |
| Maximum time at peak reflow temperature |
NOT SPECIFIED |
NOT SPECIFIED |
