SA7.0AB Overview

Trans Voltage Suppressor Diode, 500W, 7V V(RWM), Unidirectional, 1 Element, Silicon, DO-15

SA7.0AB Parametric

Parameter Name	Attribute value
Maker	Crydom
package instruction	O-PALF-W2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL RECONIZED
Maximum breakdown voltage	8.6 V
Minimum breakdown voltage	7.78 V
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-15
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak reverse power dissipation	500 W
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	3 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	7 V
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

Tr a n s i e n t V o l t a g e S u p p r e s s i o n ( T V S ) D i o d e s

SA5.0 – SA170A

Series

Invisible Protection

When no problems exist, Crydom TVS

Diodes are totally invisible to the circuits

they're protecting. But when potentially

damaging transients occur, they provide

high-speed "clamping" to prevent damage

– and then return to their electronically

invisible state.

MAXIMUM RATINGS

• Peak pulse power (P

500 watts (10 X 1000 µs)

• 3.0 watt steady state

• Response time: 1 X 10

-12

s (theoretical)

• Forward surge rating: 70 A, 8.3 ms half

sine wave (uni-directional devices only)

• Operating and storage temperature:

-55°C to +175°C

APPLICATIONS FOR SURFACE MOUNT

TRANSIENT VOLTAGE SUPPRESSORS

MECHANICAL CHARACTERISTICS

Protect sensitive electronics against voltage

transients induced by electrostatic discharge

(ESD), inductive load switching, and lightning.

Ideal for the protection of I/O interfaces, V

bus, and other integrated circuits.

FEATURES

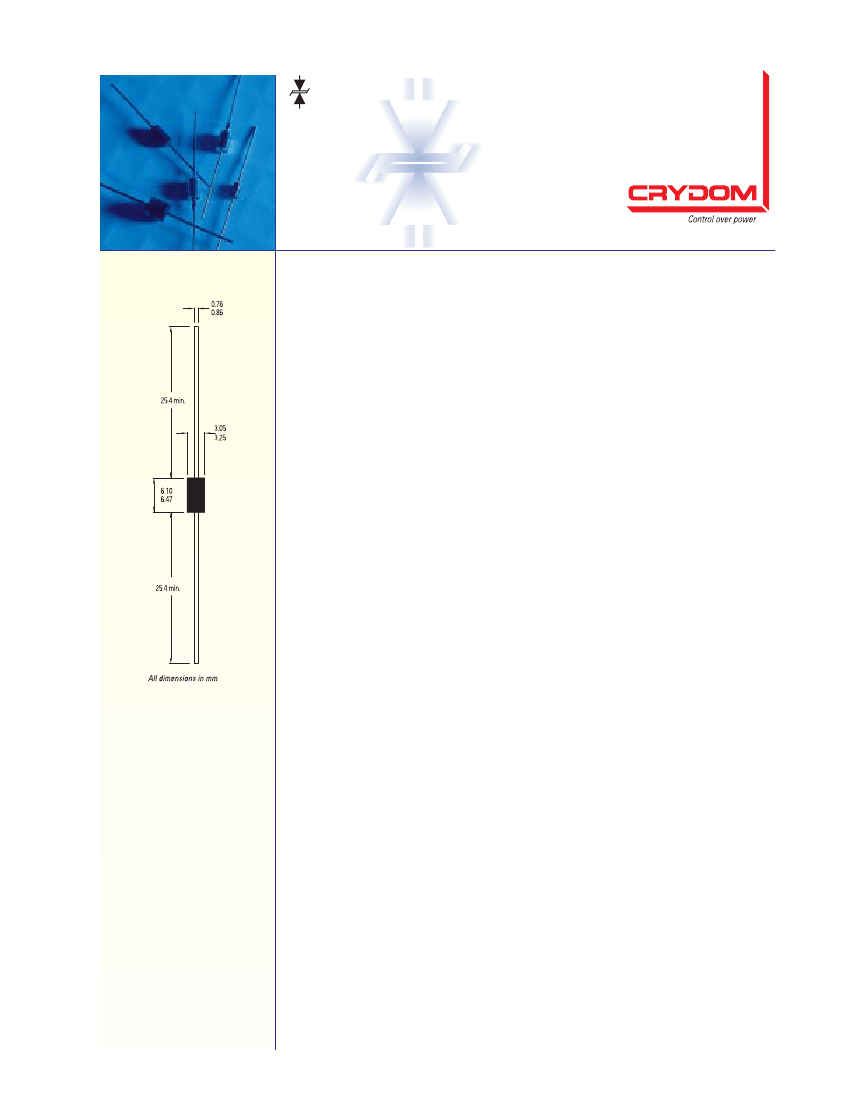

• Case: DO15, molded plastic over

glass passivated junction

• Terminals: Axial leads, solderable

per MIL-STD-202 Method 208

• Marking: Cathode band (positive

terminal, uni-directional devices

only), device code, logo

• Weight: 1 gram (approx.)

• Glass passivated junction

• Stand-off voltage range: 5-170 V

• Excellent clamping capability

• Uni-directional and bi-directional

• 100% surge tested

• UL listed

To Order: 1-877-502-5500 Fax: 1-619-715-7280

SA7.0AB Related Products

	SA7.0AB	SA5.0AB	SA9.0AB	SA8.0AB
Description	Trans Voltage Suppressor Diode, 500W, 7V V(RWM), Unidirectional, 1 Element, Silicon, DO-15	Trans Voltage Suppressor Diode, 500W, 5V V(RWM), Unidirectional, 1 Element, Silicon, DO-15,	Trans Voltage Suppressor Diode, 500W, 9V V(RWM), Unidirectional, 1 Element, Silicon, DO-15	Trans Voltage Suppressor Diode, 500W, 8V V(RWM), Unidirectional, 1 Element, Silicon, DO-15
Maker	Crydom	Crydom	Crydom	Crydom
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	UL RECONIZED	UL RECONIZED	UL RECONIZED	UL RECONIZED
Maximum breakdown voltage	8.6 V	7 V	11.1 V	9.83 V
Minimum breakdown voltage	7.78 V	6.4 V	10 V	8.89 V
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-15	DO-15	DO-15	DO-15
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak reverse power dissipation	500 W	500 W	500 W	500 W
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	3 W	3 W	3 W	3 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	7 V	5 V	9 V	8 V
surface mount	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL
