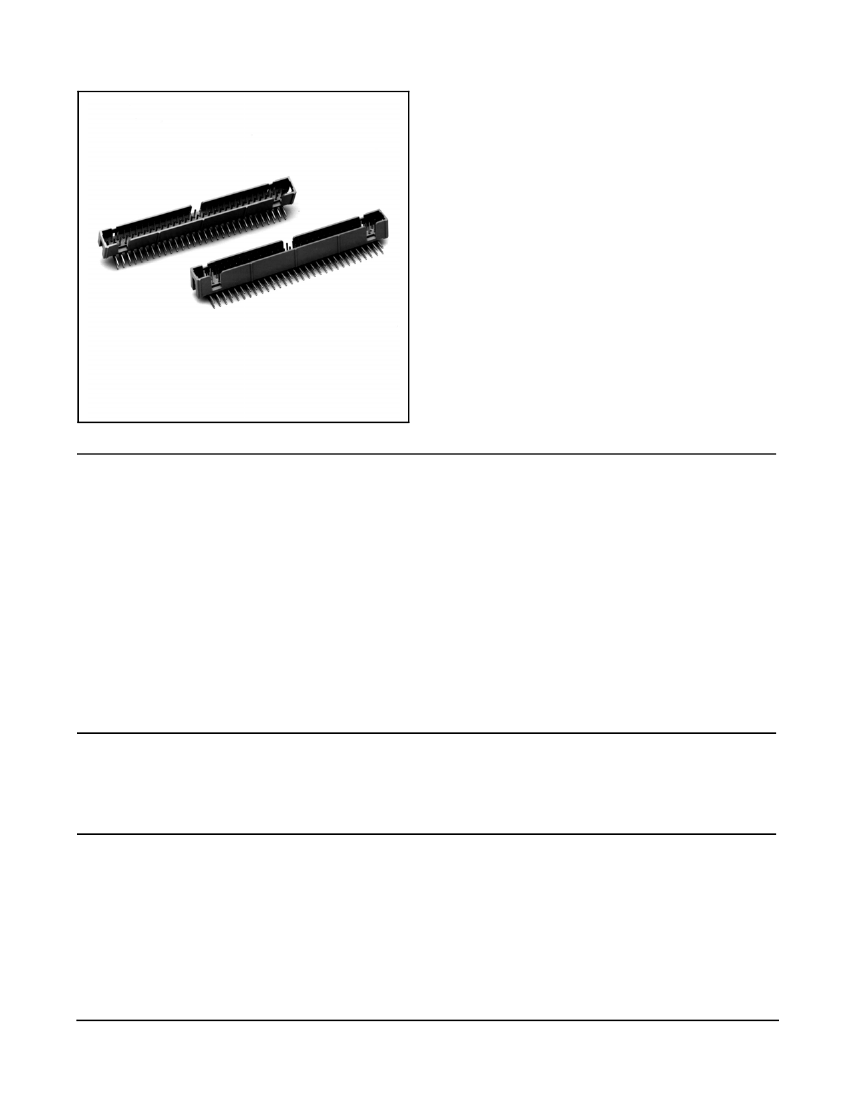

• Center slot polarization prevents mis-insertions
and reduces insertion time
• Dual slot polarization means broader compatibility
with competitive polarization designs
• Optional retainer clip for locking sockets in place
and increasing connection reliability in vibration-
prone environments
• High temperature insulator suitable for “no lead”
soldering operations
• Suitable for reflow soldering using “paste in hole”
techniques
• Exposed solder tails (on right angle version)
provide ease of cleaning and reduced repair costs
• RoHS* compliant
Date Modified: August 25, 2005
TS-0770-15
Sheet 1 of 4
Physical
Insulator
Material: Glass Filled Polyester (PCT)
Flammability:
UL 94V-0
Color: Black
Contact
Material: Copper Alloy
Plating
Underplating:
Wiping Area:
Solder Tails:
Terminal Finish Indicator:
100
µ″
[ 2.54
µm
] Nickel - Overall
30
µ″
[ 0.76
µm
] Gold
200
µ″
[ 5.08
µm
] Matte Tin
e3 (per JESD97)
Marking:
3M Logo, Part Identification Number and Orientation Triangle
Electrical
Current Rating:
2 A
Insulation Resistance:
>1
×
10
9
Ω
at 500 Vdc
Withstanding Voltage:
1000 Vrms at Sea Level
Environmental
-55°C to +105°C
Process Rating:
Maximum 260°C, single pass, (profile per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
Temperature Rating:
*RoHS = Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment
"RoHS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration values
in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury, hexavalent
chromium, polybrominated biphenyls or prolybromianted diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing,
this information represents 3M's knowledge and belief based upon information provided by third party suppliers to 3M.
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

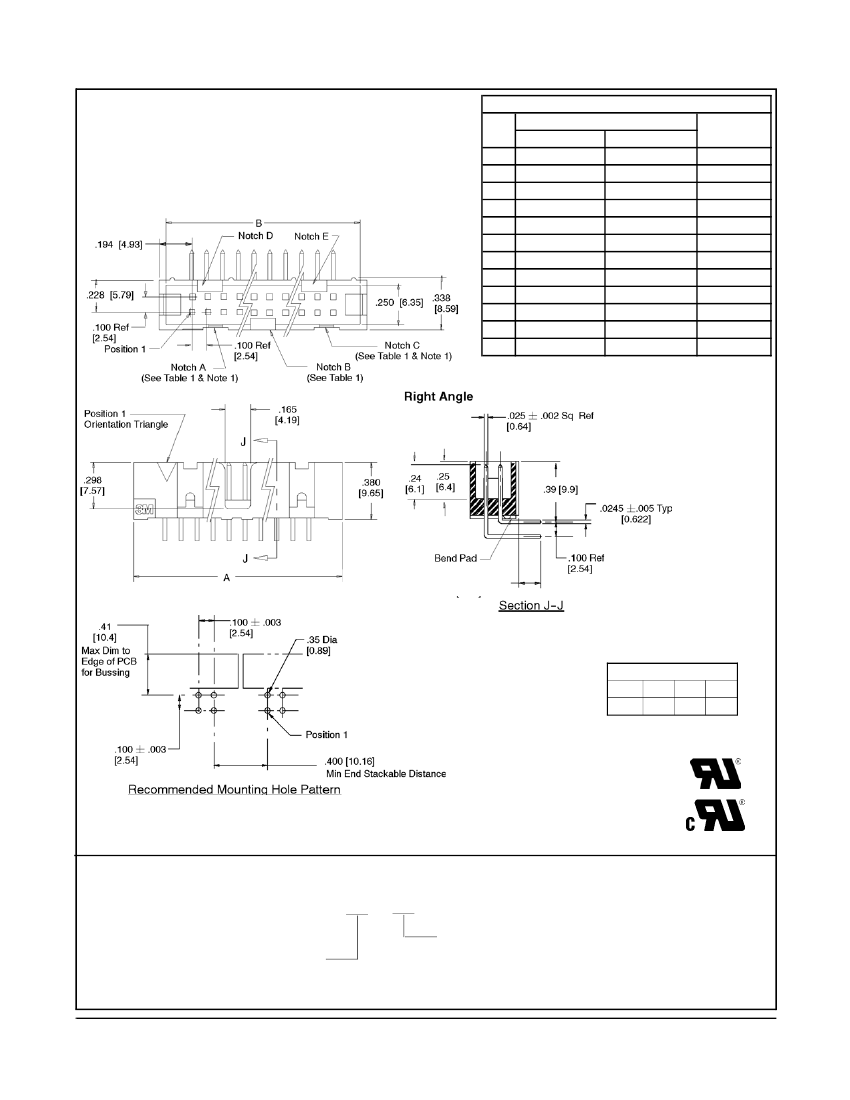

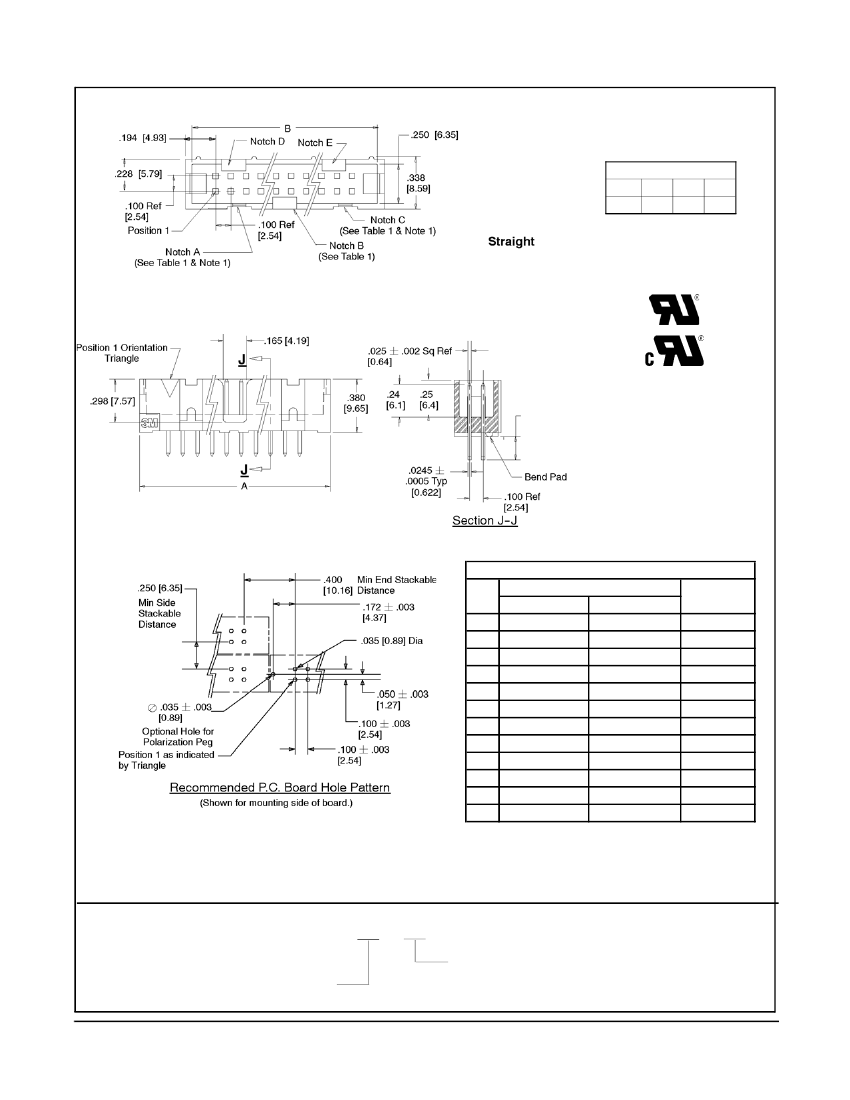

4-Wall Header
.100″
×
.100″ Low Profile, Straight and Right Angle
2500 Series
[mm]
Tolerance Unless Noted
.0
Inch
±
.1
.00
.000
±
.01
±
.005
Inch
[ ] Dimensions for
Reference only
.112 +/- .01 [2.84] for 02 & K2 versions
.155 +/-.01 [3.94] for 03 version
Pin
Qty
10
14
16
20
24
26
30
34
40
50
60
64
Table 1
Dimensions
A
B
.788 [20.02] .708 [17.98]
.988 [25.10] .908 [22.06]
1.088 [27.64] 1.008 [25.60]
1.288 [32.72] 1.208 [30.68]
1.488 [37.80] 1.408 [35.76]
1.588 [40.34] 1.508 [38.30]
1.788 [45.42] 1.708 [43.38]
1.988 [50.50] 1.908 [48.46]
2.288 [58.12] 2.208 [56.08]
2.788 [70.82] 2.708 [68.78]
3.288 [83.52] 3.208 [81.48]
3.488 [88.60] 3.408 [86.56]
Polarizing
Notches
BC
BCDE
ABCDE
ABCDE
ABCDE
ABCDE
ABCDE
ABCDE
ABCDE
ABCDE
ABCDE
ABCDE
Notes:
1. Notches A & C will accomodate 3M Polarizing Keys (3M Part #N3518).
