For surface mounted application in order to optimize board space
Low profile package
Built-in strain relief
Glass passivated junction
Excellent clamping capability
Fast response time : typically less than 1 ps from 0 V to BV minimum
Typical I
R
less than 1 µA above 10 V
High temperature soldering guaranteed : 260°C / 10 seconds at terminals
Plastic material used carries
600 watts peak pulse power capability with a 10 × 1,000 µs waveform by 0.01% duty cycle

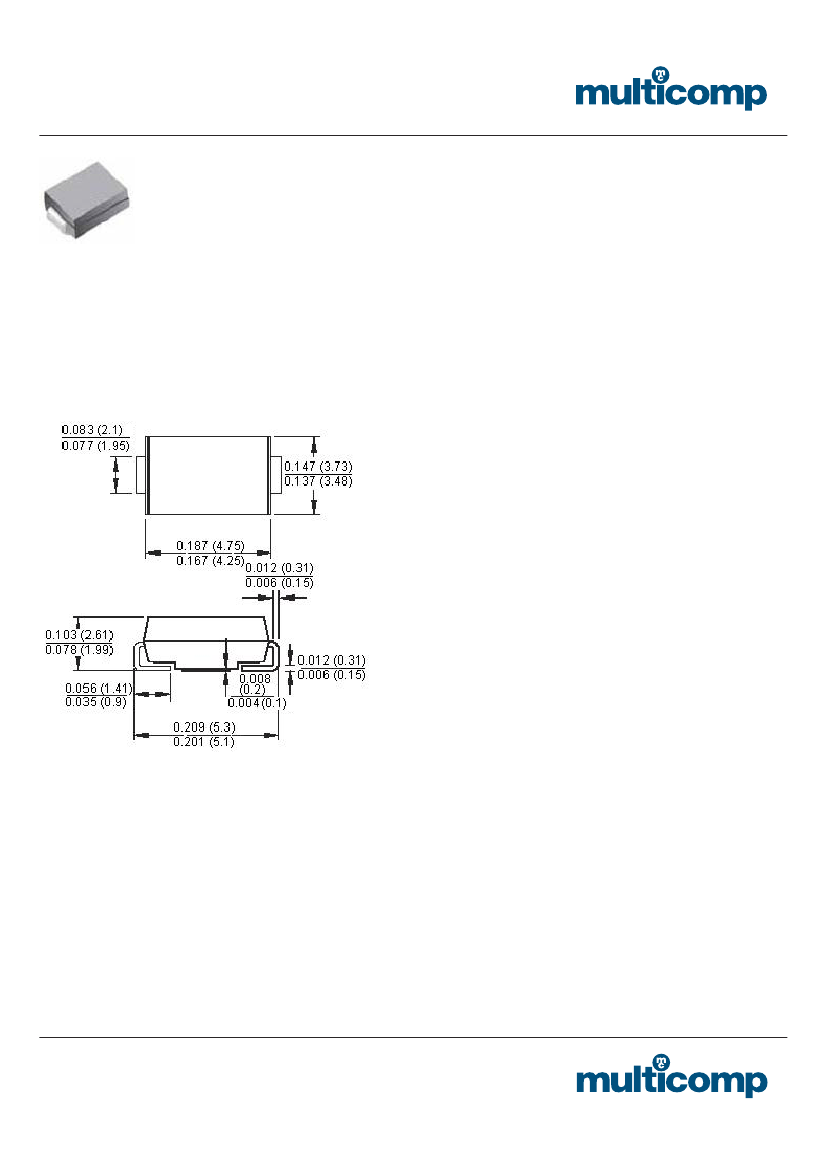

SMB/DO-214AA
Dimensions : Inches (Millimetres)
Mechanical Data
Case
Terminals
Polarity
Standard Packaging
Weight
:
:
:
:
:
Moulded plastic
Pure tin plated lead free
Indicated by cathode band
12 mm tape (EIA STD RS-481)
0.093 g
www.element14.com
www.farnell.com
www.newark.com
Page <1>
10/05/12 V1.1
TVS Diodes
P6SMB Series
Maximum Ratings and Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified
Type Number
Peak Power Dissipation at T
A
= 25°C, T
p
= 1 ms (Note 1)
Steady State Power Dissipation
Peak Forward Surge Current, 8.3 ms Single Half
Sine-wave Superimposed on Rated Load
(JEDEC method) (Note 2, 3) - Unidirectional Only
Maximum Instantaneous Forward Voltage at 50 A for Unidirectional
Only (Note 4)
Typical Thermal Resistance (Note 5)
Operating and Storage Temperature Range
Symbol
P
PK
P
D
I
FSM
V
F
R
θJC
R
θJA
T
J
, T
STG
Value
Minimum 600
3
100
Units
W
A
3.5 / 5
10
55
-65 to + 150
V
°C / W
°C
Notes :
1. Non-repetitive current pulse and derated above T
A
= 25°C
2. Mounted on 5 mm
2
(0.013 mm thick) copper pads to each terminal
3. 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minutes maximum
4. V
F
= 3.5 V on P6SMB6.8 thru P6SMB91 devices and V
F
= 5 V on P6SMB100 thru P6SMB220 devices
5. Measured on P.C.B. with 0.27 × 0.27 Inch (7 × 7 mm) copper pad areas
Devices for bipolar applications
1. For bidirectional use C or CA suffix for types P6SMB6.8 through types P6SMB220A
2. Electrical characteristics apply in both directions
Ratings and Characteristic Curves

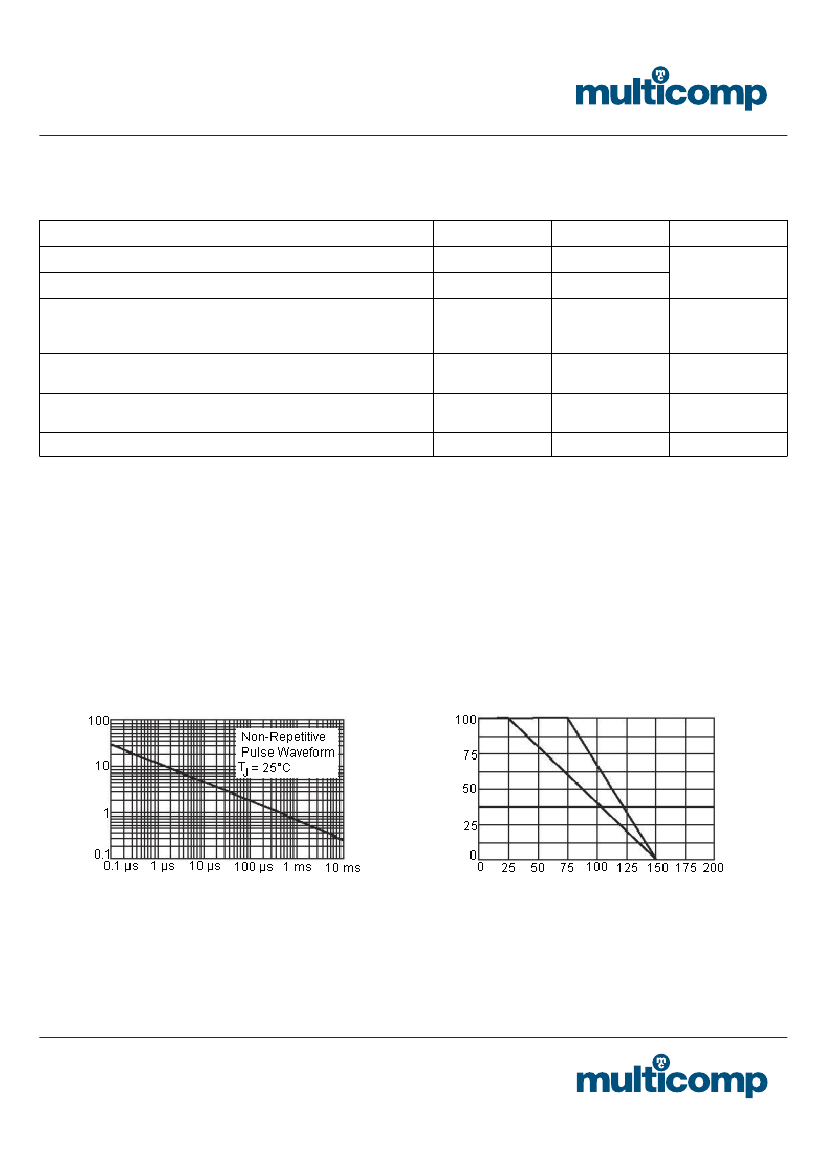

Peak Pulse Power Rating Curve
P
PPM
, Peak
Pulse Power, KW
Peak Pulse Power (P
PP
) or
Current (I
PPM
) Derating In
Percentage, %
Pulse Derating Curve
t
p
, Pulse Width, Seconds
T
A
Ambient Temperature, °C
www.element14.com
www.farnell.com
www.newark.com
Page <2>
10/05/12 V1.1
TVS Diodes
P6SMB Series
Ratings and Characteristic Curves
Clamping Power Pulse Waveform
Peak Pulse Current - %
I
FSM
, Peak Forward Surge
Current, Amperes
t, Time, ms
Maximum Non-Repetitive Forward Surge
Current Unidirectional Only
Number of Cycles at 60 Hz

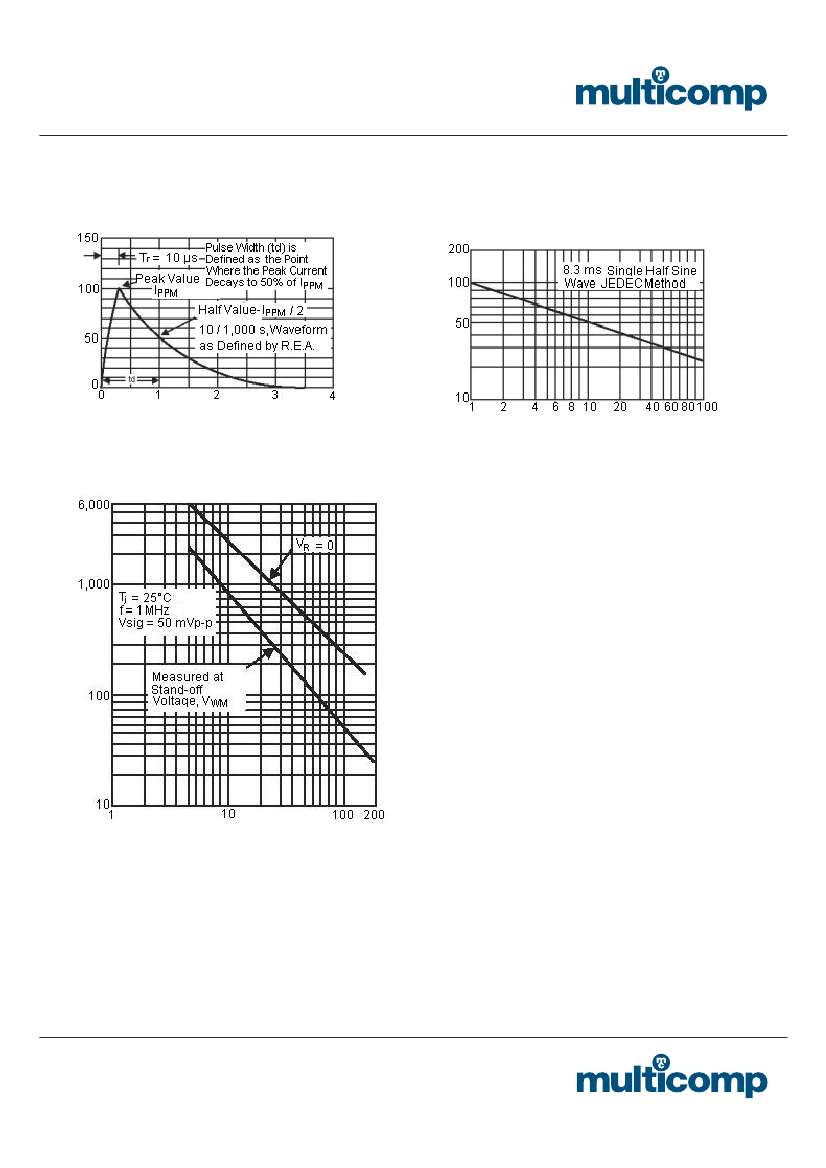

Typical Junction Capacitance
(Unidirectional)
C
J
, Junction Capacitance (pF)
V
(BR)
,
Breakdown Voltage Volts
www.element14.com
www.farnell.com
www.newark.com
Page <3>
10/05/12 V1.1
TVS Diodes
P6SMB Series
Electrical Characteristics
(T
A
= 25°C unless otherwise noted)
Breakdown Voltage
Maximum
Peak
Pulse
Current
I
RSM
(Note 2)
(Amperes)
4.5
43
3
25
2.2
20
16.8
5
13.8
12.6
11.6
9.7
7.4
6.8
1,000
60
Maximum Maximum
Clamping Temperature
Voltage Coefficient
at I
PPM
of V
BR
V
C
(Volts)
(% / °C)
137
14.5
207
25.2
274
30.6
37.5
45.7
49.9
53.9
64.8
85
92
10.5
0.106
0.073
0.108
0.088
0.108
0.092
0.096
0.098
0.099
0.1
0.101
0.104
0.057
Maximum
Test Stand-Off Reverse
Device
Device
Current Voltage Leakage
Marking V
BR
(Volts) (Note 1)
at I
T
V
WM
at V
WM
Code
(mA)
(Volts)
I
D
(µA)
Unidirectional Bidirectional
Minimum Maximum
P6SMB100A
P6SMB10A
P6SMB150A
P6SMB18A
P6SMB200A
P6SMB22A
P6SMB27A
P6SMB33A
P6SMB36A
P6SMB39A
P6SMB47A
-
P6SMB68A
P6SMB6V8A
Notes:
1. V
BR
measured after I
T
applied for 300 µs, I
T
= square wave pulse or equivalent
2. Surge current waverform and derate
3. For bipolar types having V
WM
of 10 volts and under, the I
D
limit is doubled
4. For bidirectional use C or CA suffix for types P6SMB6.8 through P6SMB220A
5. All terms and symbols are consistent with ANSI / IEEE C62.35
P6SMB100CA
P6SMB10CA
P6SMB150CA
P6SMB18CA
P6SMB200CA
P6SMB22CA
P6SMB27CA
P6SMB33CA
P6SMB36CA
P6SMB39CA
P6SMB47CA
P6SMB62CA
P6SMB68CA
P6SMB6V8CA
MXJ
KPJ
NKJ
LEJ
NTJ
LKJ
LPJ
LTJ
LVJ
LXJ
MEJ
MMJ
MPJ
KEJ
95
9.5
143
17.1
190
20.9
25.7
31.4
34.2
37.1
44.7
58.9
64.6
6.45
105
10.5
158
18.9
210
23.1
28.4
34.7
37.8
41
49.4
65.1
71.4
7.14
10
1
85.5
8.55
128
15.3
171
18.8
23.1
28.2
30.8
33.3
40.2
53
58.1
5.8
5
10
