TC528128BJ-10: DescriptionIC 128K X 8 VIDEO DRAM, 100 ns, PDSO40, 0.400 INCH, PLASTIC, SOJ-40, Dynamic RAM; Categorystorage storage; File Size3MB，58 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC528128BJ-10 Overview

IC 128K X 8 VIDEO DRAM, 100 ns, PDSO40, 0.400 INCH, PLASTIC, SOJ-40, Dynamic RAM

TC528128BJ-10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOJ
package instruction	SOJ,
Contacts	40
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	100 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 256 X 8 SAM PORT
JESD-30 code	R-PDSO-J40
JESD-609 code	e0
length	26.04 mm
memory density	1048576 bit
Memory IC Type	VIDEO DRAM
memory width	8
Number of functions	1
Number of ports	2
Number of terminals	40
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
refresh cycle	512
Maximum seat height	3.7 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.16 mm

TC528128BJ-10 Preview

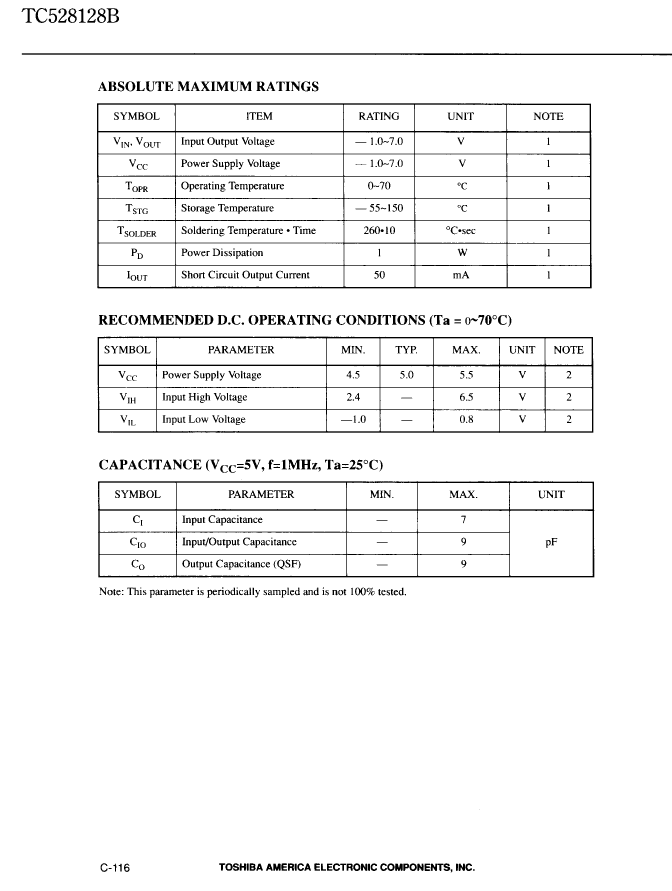

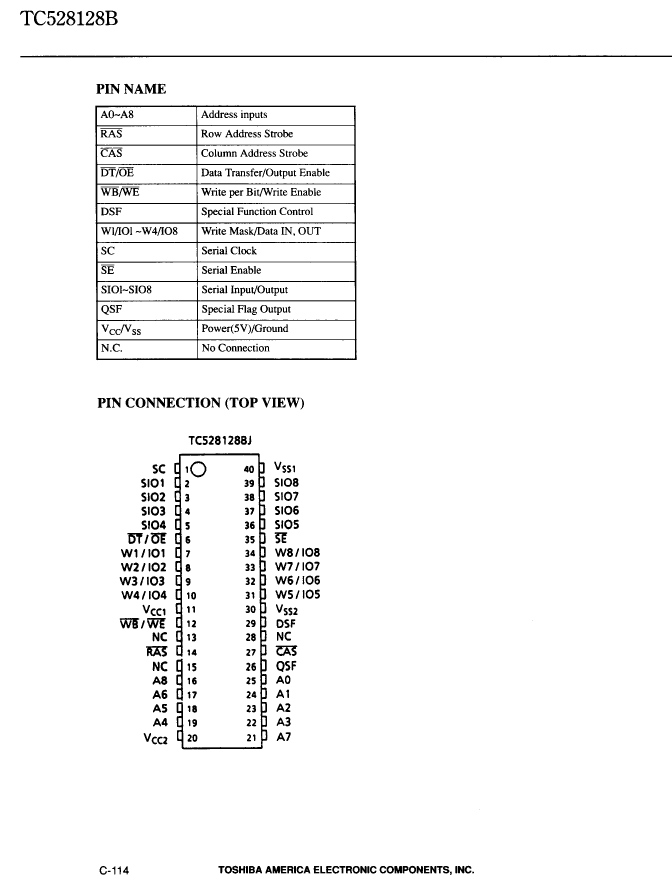

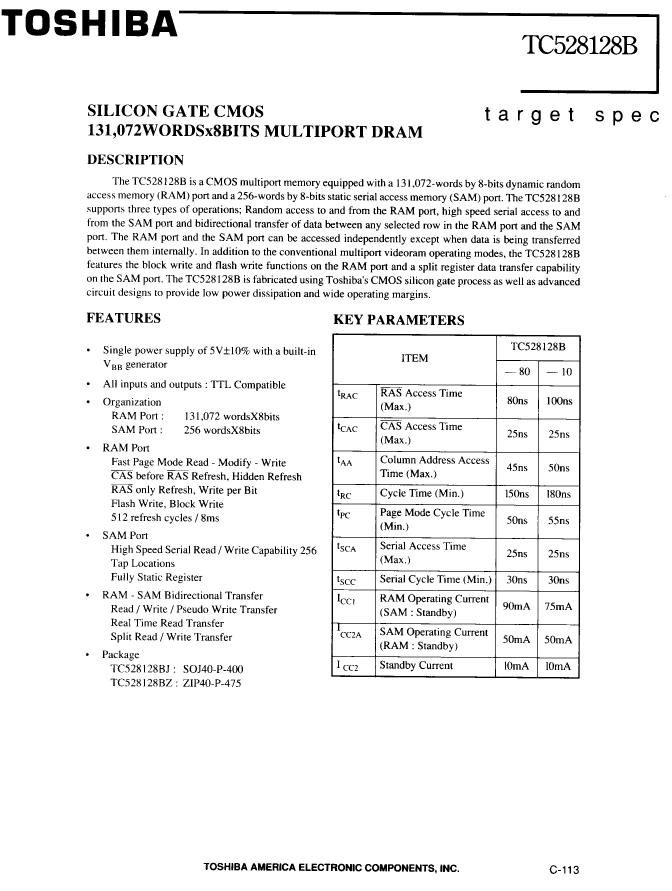

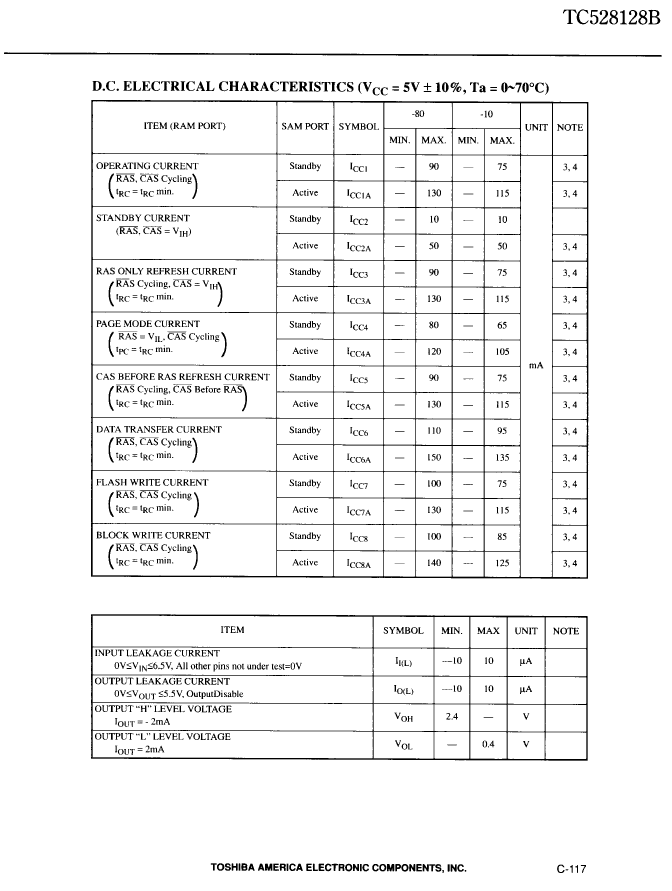

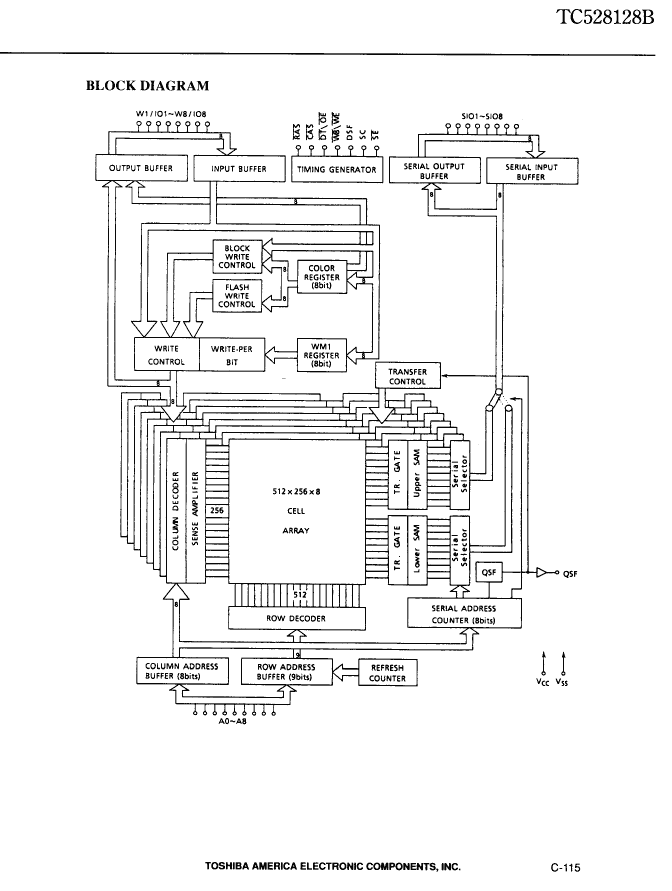

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
