QS74FCT864BTP datasheet, PDF - EEWORLD Datasheet

QS74FCT864BTP: DescriptionBus Transceiver, FCT Series, 1-Func, 9-Bit, Inverted Output, CMOS, PDIP24,; Categorylogic logic; File Size611KB，9 Pages; ManufacturerQuality Semiconductor Inc

Download Datasheet Parametric View All

QS74FCT864BTP Overview

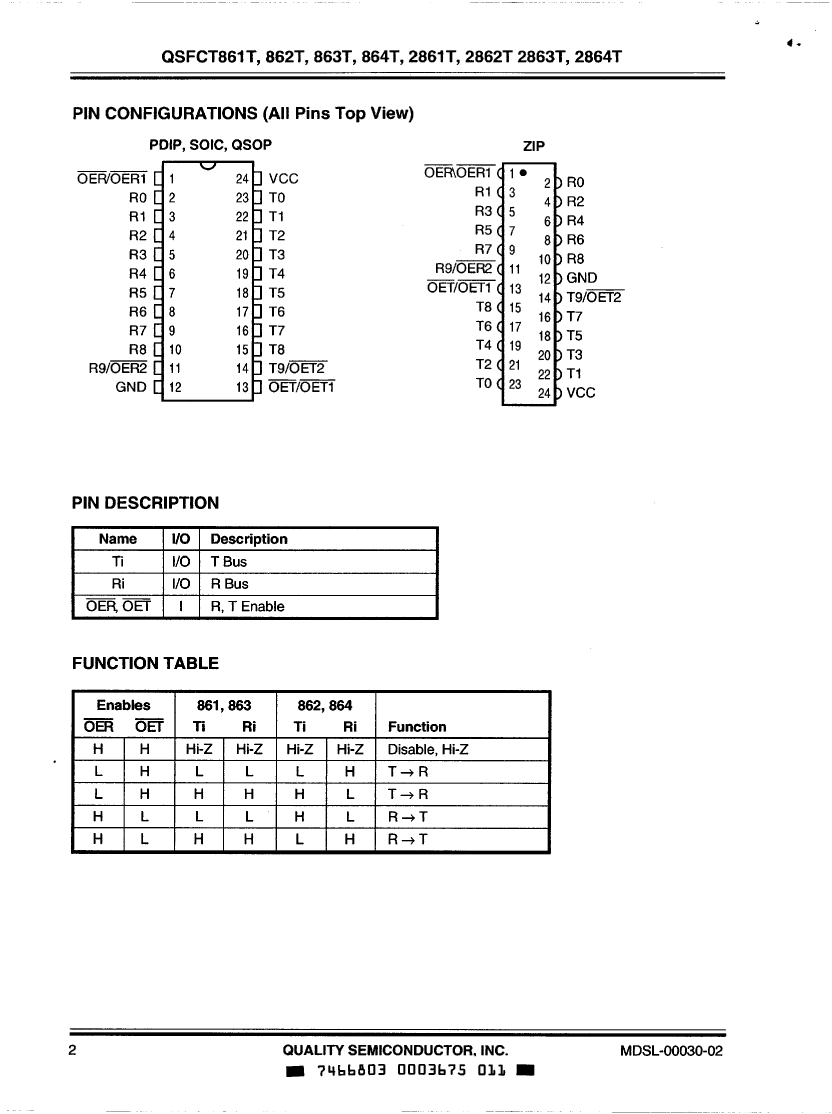

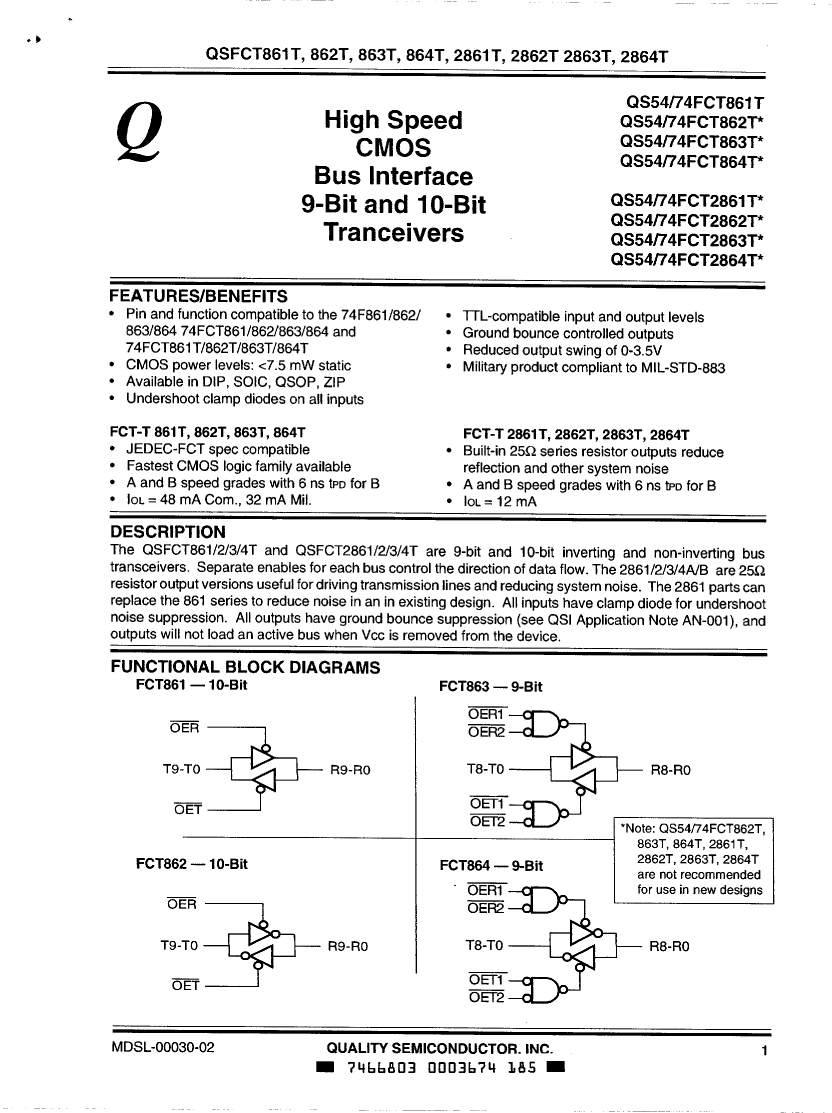

Bus Transceiver, FCT Series, 1-Func, 9-Bit, Inverted Output, CMOS, PDIP24,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Quality Semiconductor Inc
Reach Compliance Code	unknown
Other features	WITH DUAL INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
series	FCT
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
Load capacitance (CL)	300 pF
Logic integrated circuit type	BUS TRANSCEIVER
MaximumI(ol)	0.048 A
Number of digits	9
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V

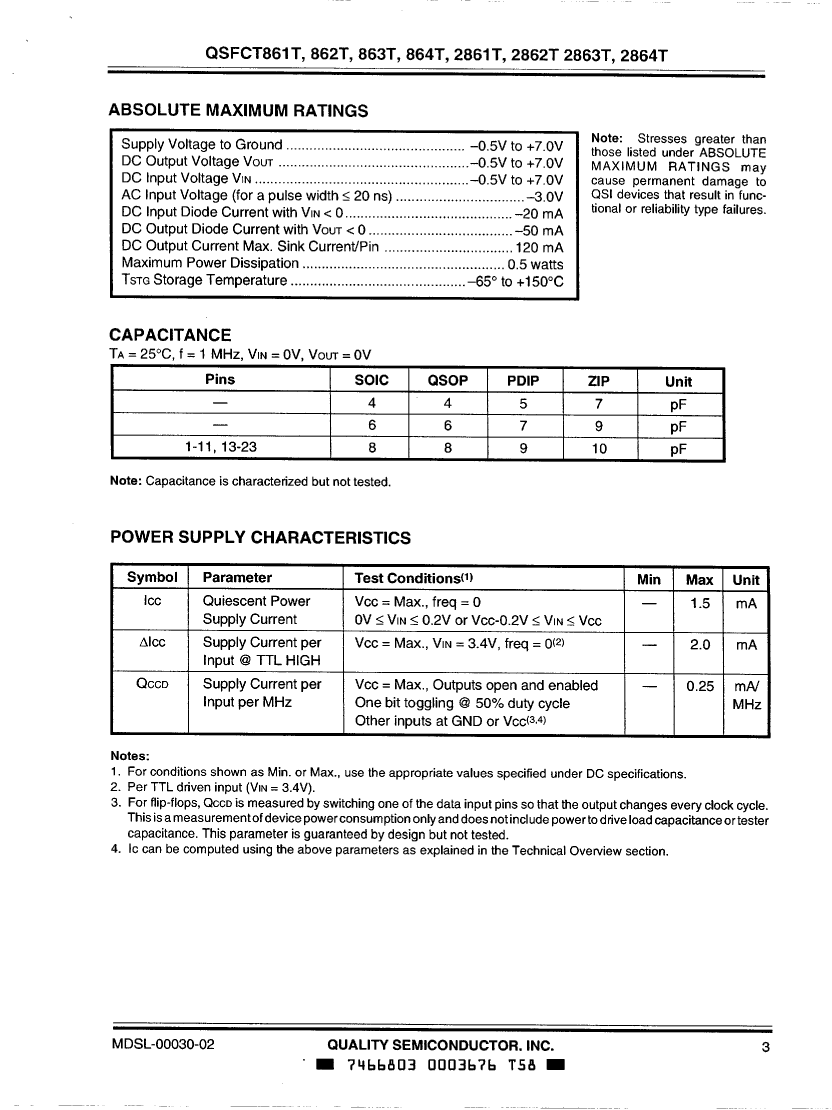

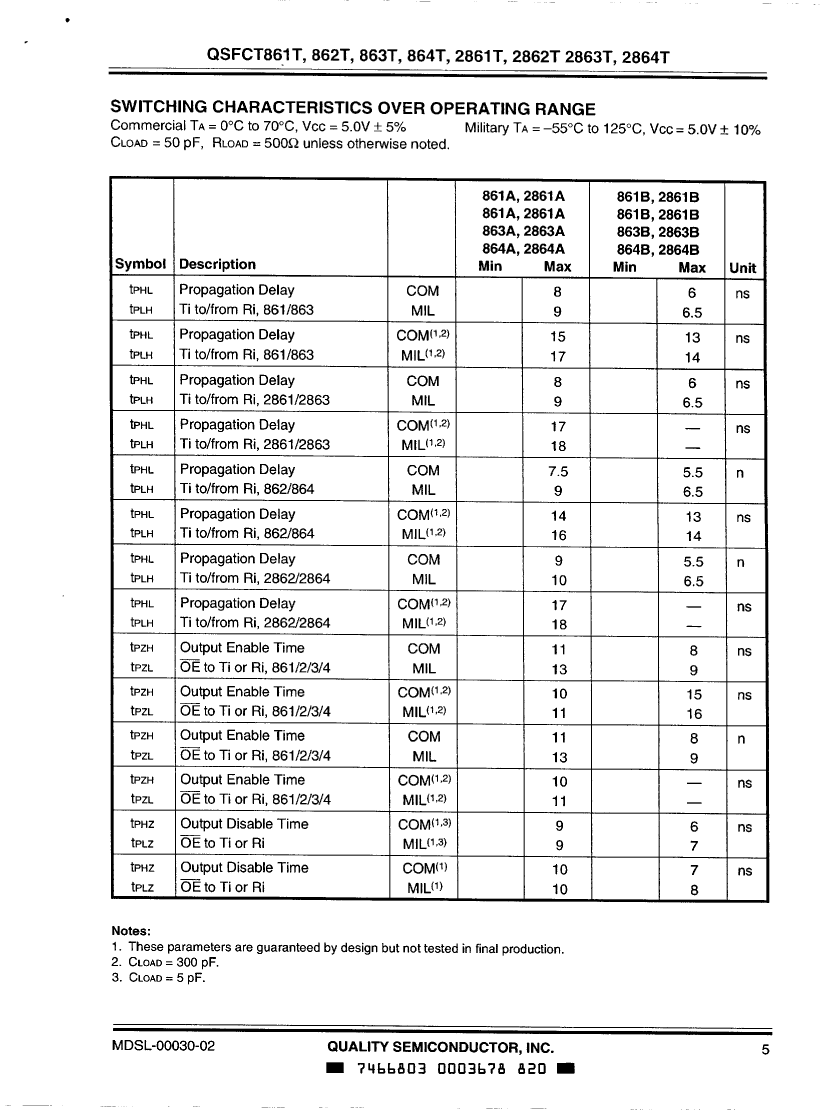

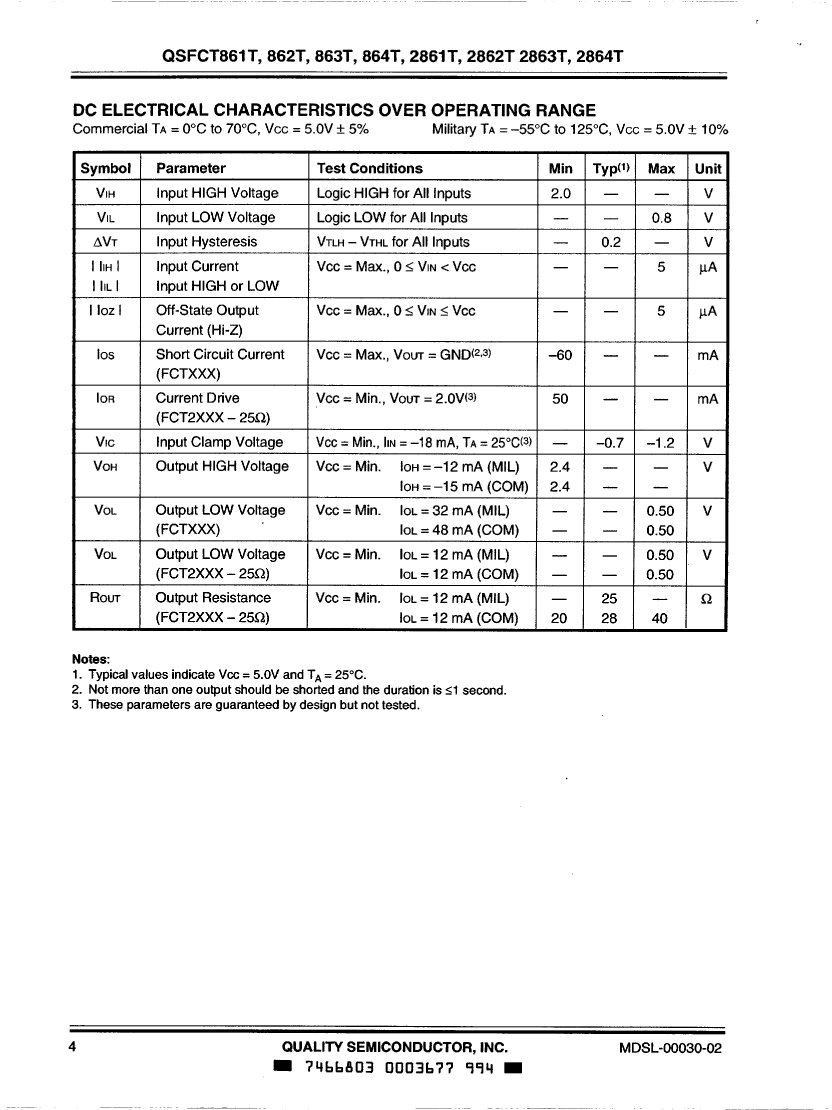

Prop。Delay @ Nom-Sup	5.5 ns
propagation delay (tpd)	13 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
translate	N/A
