FR203G-H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FR203G-H

FR203G-H: DescriptionRectifier Diode, 1 Phase, 1 Element, 2A, 200V V(RRM), Silicon, DO-15,; CategoryDiscrete semiconductor diode; File Size92KB，6 Pages; ManufacturerFORMOSA; Websitehttp://www.formosams.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

FR203G-H Overview

Rectifier Diode, 1 Phase, 1 Element, 2A, 200V V(RRM), Silicon, DO-15,

FR203G-H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FORMOSA
package instruction	O-PALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JEDEC-95 code	DO-15
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	70 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.15 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

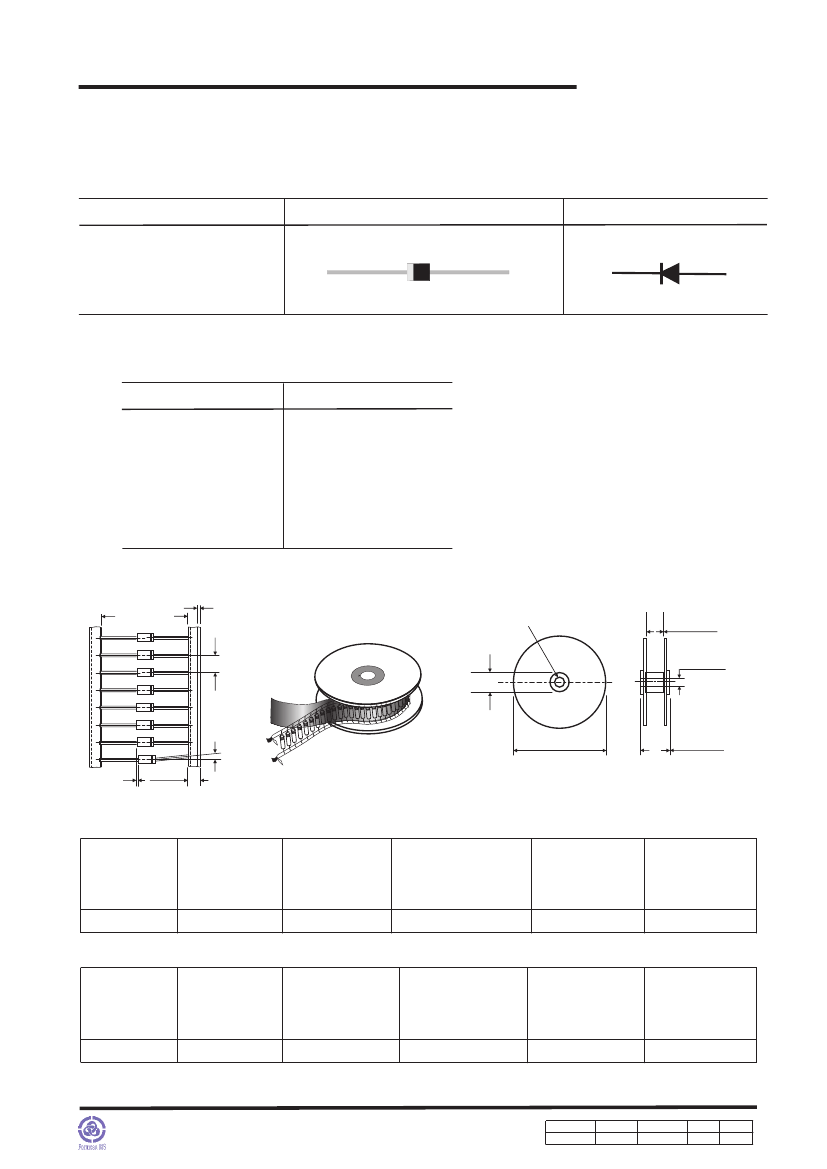

Axial Leaded Fast Recovery Rectifiers

FR201G THRU FR207G

List

Formosa MS

List................................................................................................. 1

Package outline............................................................................... 2

Features.......................................................................................... 2

Mechanical data............................................................................... 2

Maximum ratings .............................................................................. 2

Rating and characteristic curves........................................................ 3

Pinning information........................................................................... 4

Marking........................................................................................... 4

Taping & bulk specifications for AXIAL devices.................................... 4

Suggested thermal profiles for soldering processes............................. 5

High reliability test capabilities........................................................... 6
