ES2FAR3: DescriptionRectifier Diode, 1 Phase, 1 Element, 2A, 300V V(RRM), Silicon, DO-214AC, SMA, 2 PIN; CategoryDiscrete semiconductor diode; File Size428KB，4 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric View All

ES2FAR3 Overview

Rectifier Diode, 1 Phase, 1 Element, 2A, 300V V(RRM), Silicon, DO-214AC, SMA, 2 PIN

ES2FAR3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
package instruction	SMA, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum repetitive peak reverse voltage	300 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.035 µs
surface mount	YES
Terminal form	C BEND
Terminal location	DUAL

Preview

Download Datasheet

View All

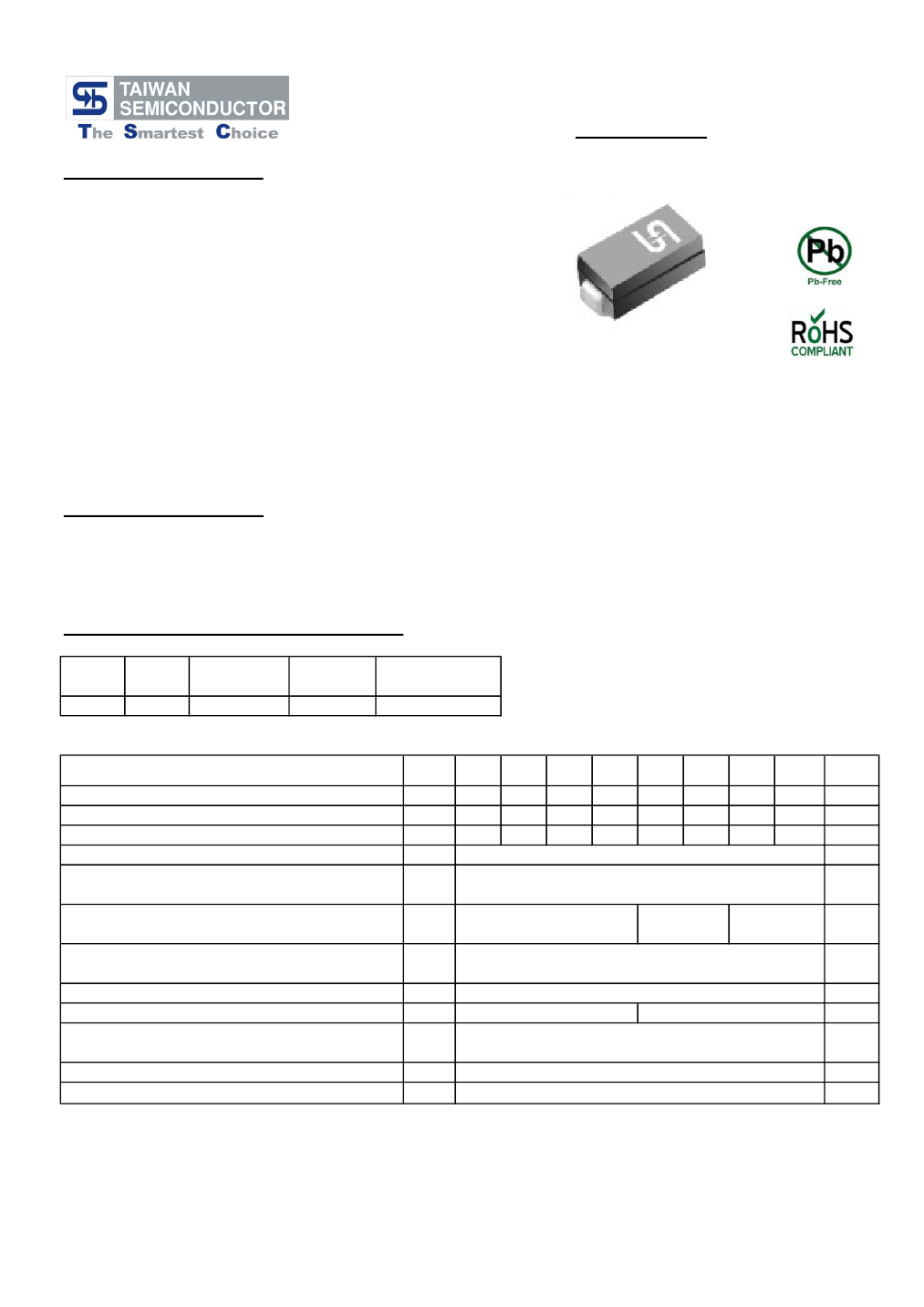

ES2AA - ES2JA

2.0AMPS Surface Mount Super Fast Rectifiers

SMA/DO-214AC

Features

Glass passivated junction chip

For surface mounted application

Low profile package

Built-in strain rellef

Ideal for automated placement

Easy pick and place

Super fast recovery time for high efficiency

Glass passivated chip junction

High temperature soldering:

260℃/10 seconds at terminals

Meet MSL level 1, per J-STD-020D

lead free, maximum peak of 260℃

Plastic material used carries Underwriters

Laboratory Classification 94V-0

Green compound with suffix "G" on packing

code & prefix "G" on datecode

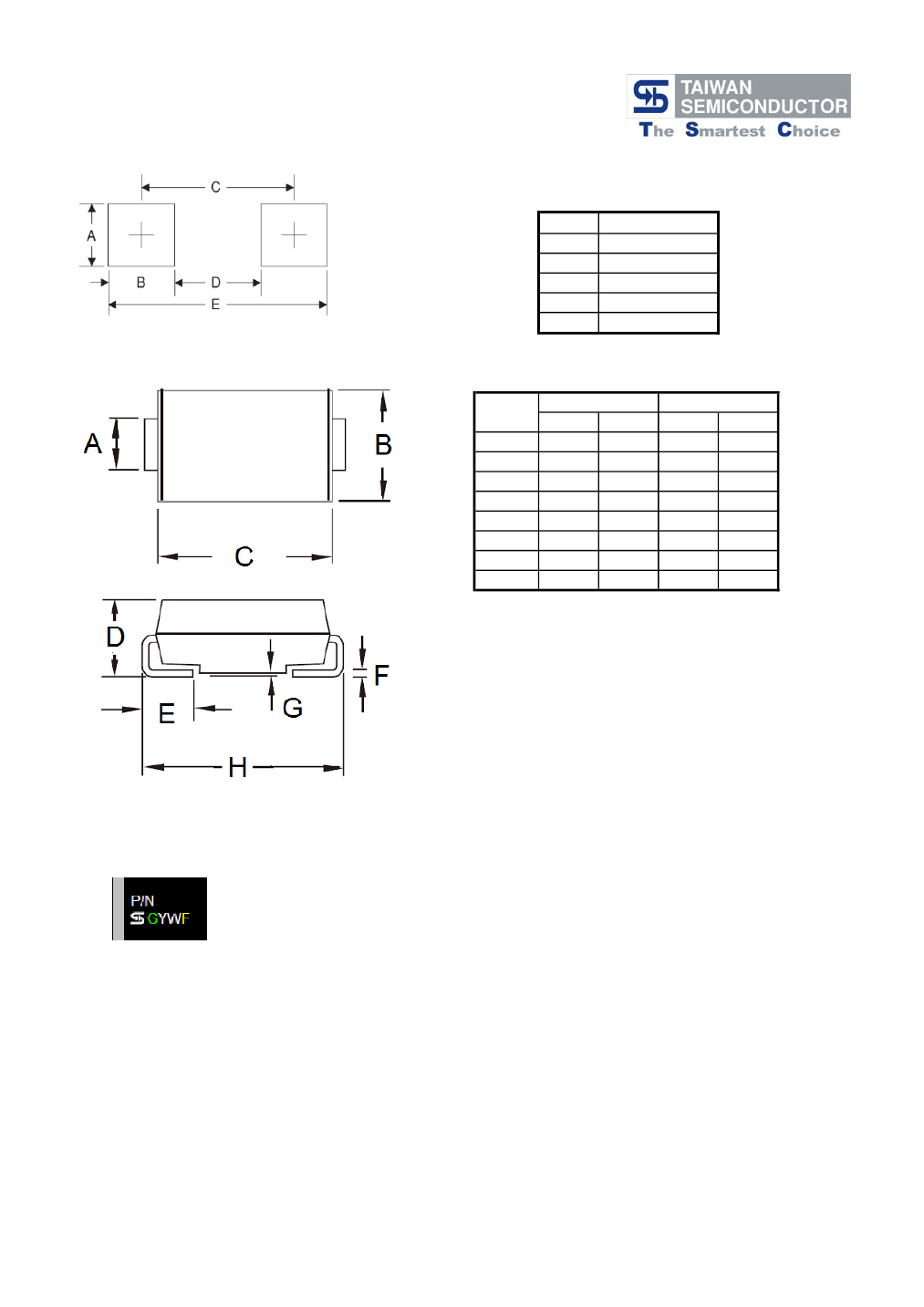

Mechanical Data

Cases: Molded plastic

Terminals: Pure tin plated, lead free

Polarity: Indicated by cathode band

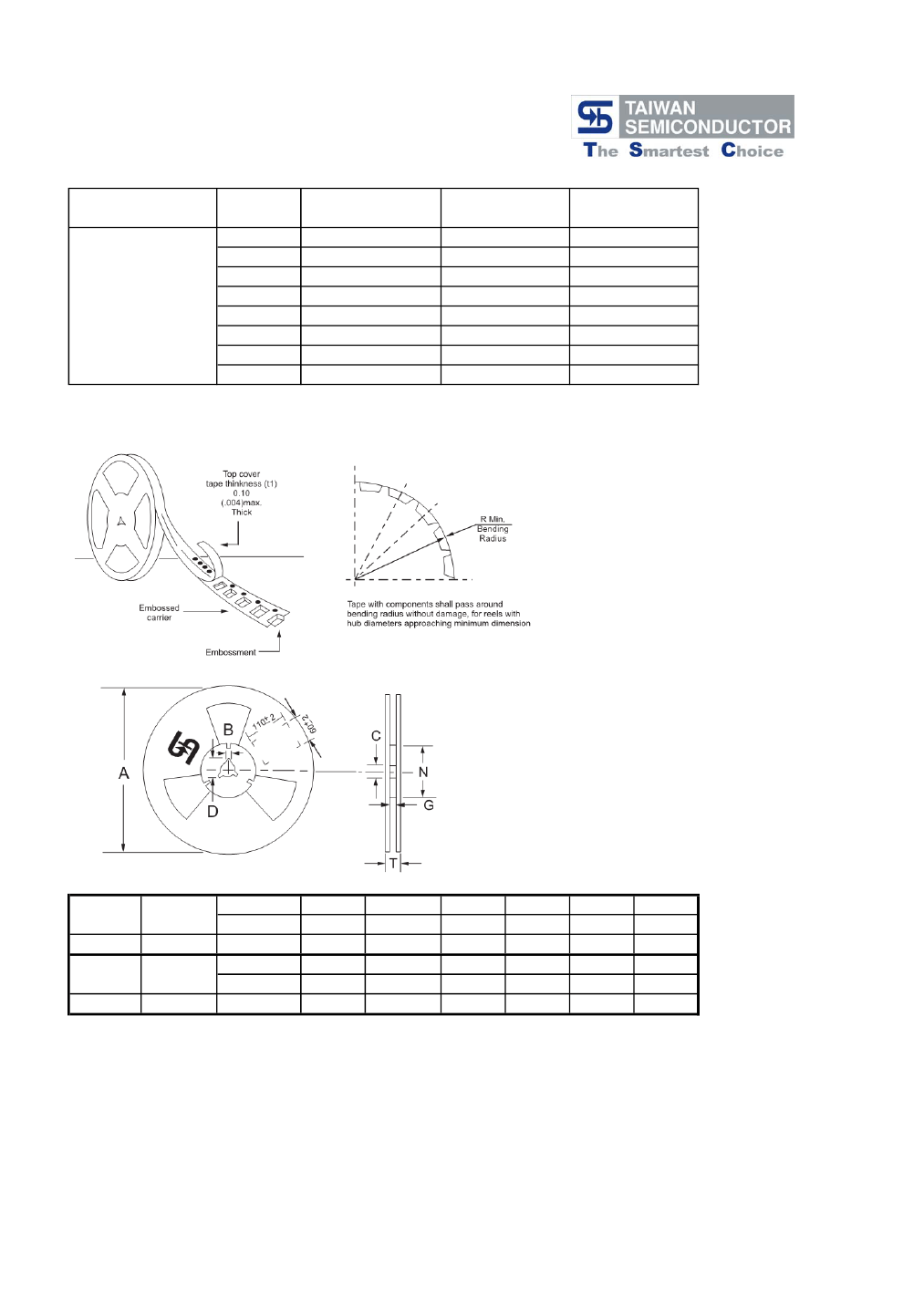

Packing: 12mm tape per EIA STD RS-481

Weight: 0.064 grams

Ordering Information (example)

Part No.

ES2AA

Package

SMA

Packing

1.8K / 7" REEL

Packing code

(Green)

R3G

Maximum Ratings and Electrical Characteristics

Rating at 25

℃

ambient temperature unless otherwise specified.

Parameter

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

Peak Forward Surge Current, 8.3 ms Single Half Sine-wave

Superimposed on Rated Load (JEDEC method)

Maximum Instantaneous Forward Voltage (Note 1)

@2A

Maximum DC Reverse Current

at Rated DC Blocking Voltage

@ T

=25

℃

@ T

=125

℃

Symbol

RRM

RMS

F(AV)

FSM

Trr

θJA

θJL

STG

2AA

2BA

100

2CA

150

105

150

2DA

200

140

200

2FA

300

210

300

2GA

400

280

400

2HA

500

350

500

2JA

600

420

600

Units

0.95

350

1.3

1.7

Maximum Reverse Recovery Time (Note 2)

Typical Junction Capacitance (Note 3)

Maximum Thermal Resistance

Operating Temperature Range

Storage Temperature Range

Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle

C/W

- 55 to + 150

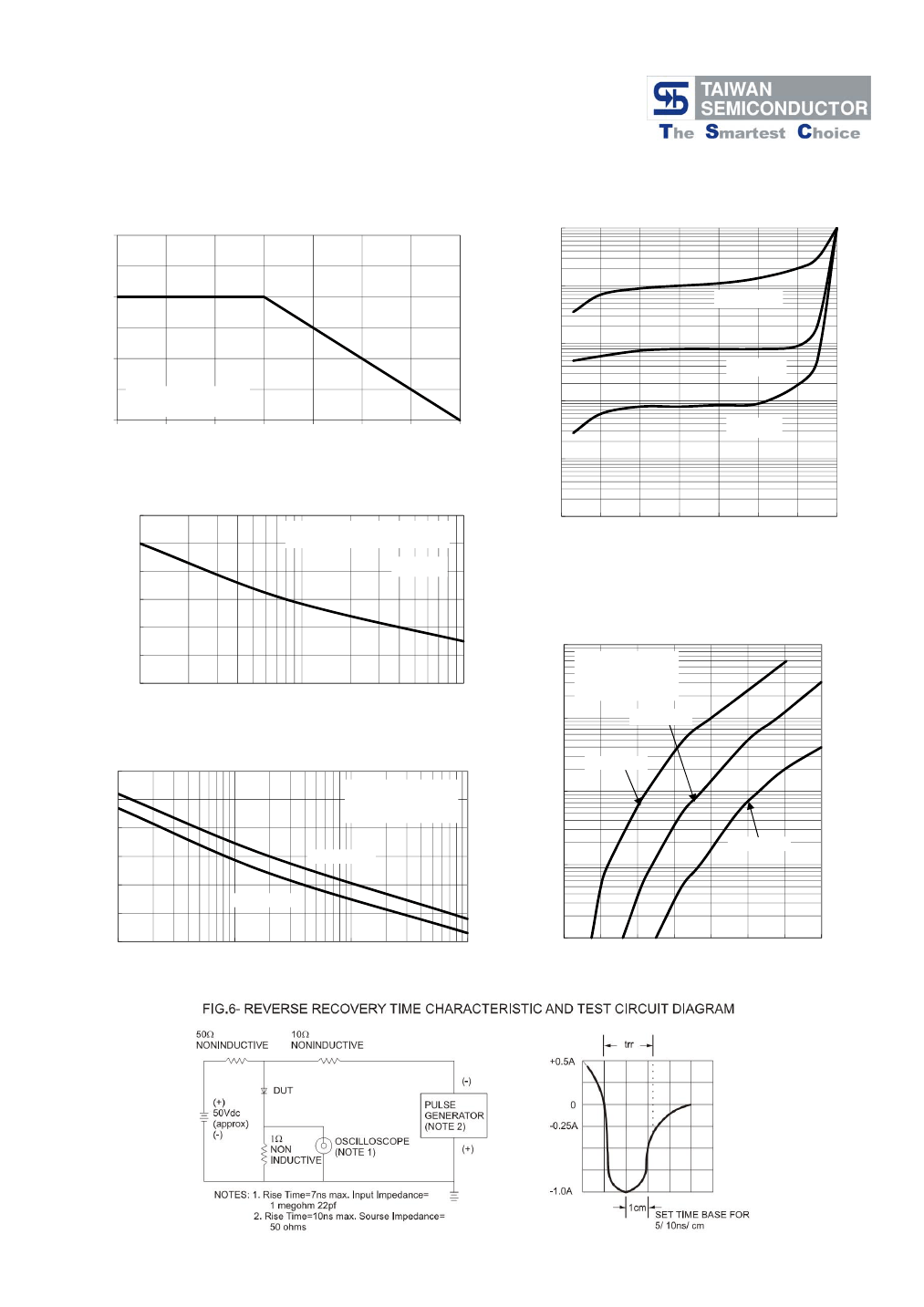

Note 2: Reverse Recovery Test Conditions: I

=0.5A, I

=1.0A, I

=0.25A

Note 3: Measured at 1 MHz and Applied V

=4.0 Volts

Version:H13
