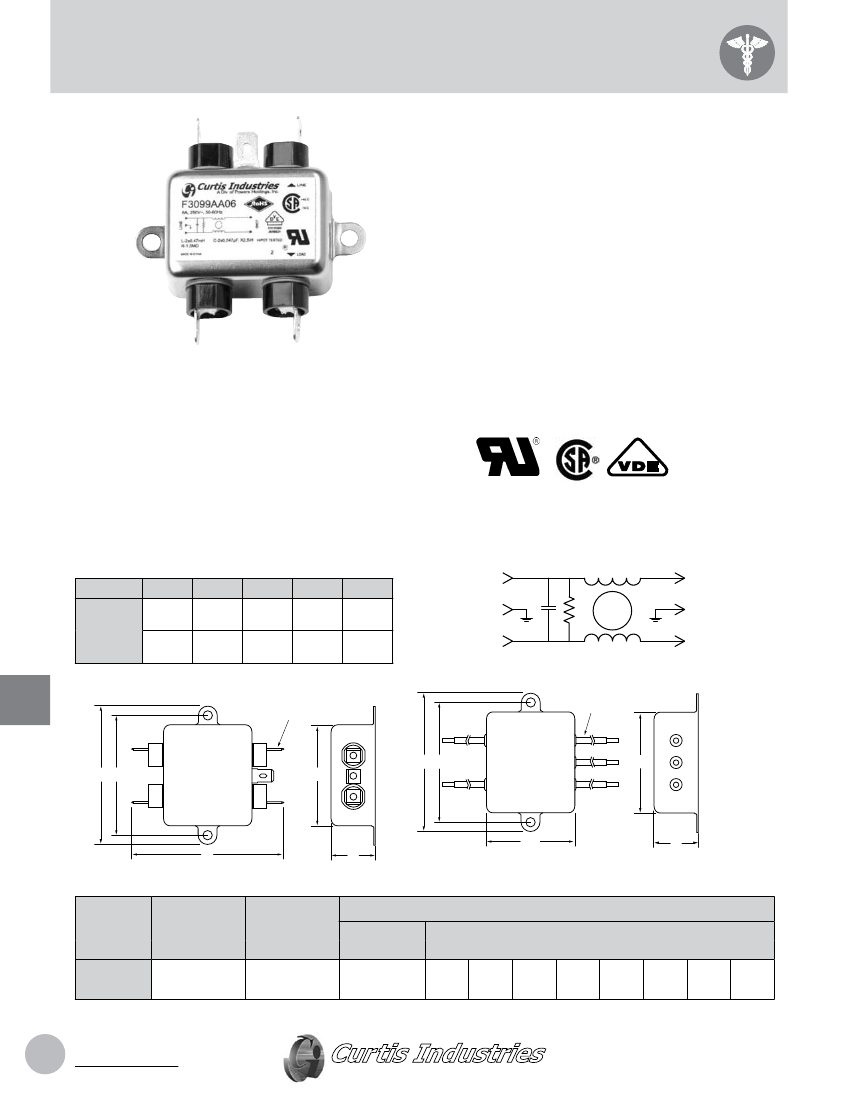

F3099 RFI Filters
Specifications
:
Maximum Voltage:
250VAC Maximum - 50/60 Hz
Rated Current:
250VAC
6A
Current Overload:
6X for 8 seconds
Hi-Pot Test (1 min):
Line to Ground
1500VAC
Line to Line
1450VDC
Insulation Resistance:
9 x 10
9
Ω
at 100VDC
Ambient Temperature:
40°C Max at rated current
Humidity Range:
0% to 95% R.H.
Termination:
A: Quick Connect
B: Wire
Maximum Leakage Current:
Each Line to Ground
F3000 Series
115VAC, 60Hz:
2
μA
250VAC, 50Hz:
5
μA
Agency Approvals:
General Purpose Filtered Modules
Features:
• Designed to Meet UL544 and IEC601 Specifications
for Medical and Dental Equipment, both patient care
and onpatient categories.
• Leakage current in this series is extremely low to
satisfy the stringest leakage current limit imposed by
safety regulations for medical and dental equipment.
F3099AA
(6Amp) Dimensions
Amps
A
2.53
(64,30)
2.53
(64,30)
B
1.82
(46,2)
1.82
(46,2)
C
0.78
(19,8)
0.78
(19,8)
D
2.126
(54,0)
2.126
(54,0)
E
2.53
(64,30)
1.32
(33,5)
LINE
L
G
N
F3099 Series
Simplified Schematic
L
LO A D
N
WIRE LEADS, 18AWG,
(16AWG FOR 10A).
102(4.0) MIN.
BLUE
BLUE
G/Y
BROWN
BROWN
6A
6.36(0.25) FASTON TERMINAL
WITH Ø1.78 (0.070) HOLE
(SLOTTED HOLE
FOR GROUND)
MEDICAL FILTERS
A D
A D
B
B
E
E
C
C
Nominal
Current
Rating
MINIMUM INSERTION LOSS - dB (50 ohm Circuit)
Part
Number
Termination
Line/Load
QC/QC
ø
MODE
Common
Differential
Frequency - MHz
.50
1.0
20
20
22
30
0.05
3
3
0.10
7
6
.15
11
14
5.0
24
35
10
22
35
30
18
35
6A
72
F3099AA06
F3099BB06
NOTE: Other combinations of terminals may be specified on special order.
www.curtisind.com
Curtis Industries
A Division of Powers Holdings, Inc.
Specifications subject to change.
Dimensions are shown for
reference purposes only.
