MIHK Series 5X7 Ceramic SMD Oscillator
Low Profile SMD Package
32.768KHZ
RoHS Compliant
HCMOS Output
Frequency
Temperature Stability*
Operating Temperature Range
Storage Temperature Range
Aging (+25°C ±3°C)
Supply Voltage
Supply Current
Waveform
Logic “0”
Logic “1”
Rise/Fall Time (10% to 90% of Supply Voltage)
Symmetry (50% of waveform)
Output Load
Start-up Time
Tri-State Operation
* Inclusive of Temperature., Load and Voltage
32.768KHZ
(See Part Number Guide for Options)
(See Part Number Guide for Options)
-55°C to +125°C
±5ppm / year max at +25ºC
(See Part Number Guide for Options)
7mA max
HCMOS
10% Vdd max
90% Vdd min
250nSec
40%/60%
15pF or 10TTL
8mSec max
Voh = 70% of Vdd min to Enable Output
Vol = 30% max or grounded to Disable Output (High Impedance)
Mechanical & Environmental Detail
Shock
Solderability
Solvent Resistance
Vibration
Gross Leak Test
Fine Leak Test
MSL
MIL-STD-883, Method 2002 Cond B
MIL-STD-883, Method 2003
MIL-STD-202, Method 215
MIL-STD-883, Method 2007, Cond A
MIL-STD-883, Method 1014, Cond C
MIL-STD-883, Method 1014, Cond A2
Level 1 per IPC/JEDEC J-STD 20
Marking Detail
Line 1 = MXXXXX
M
XXXXX
Line 2 = SYYWWL
S
YYWW
L
Line 3 = XXXXX
Internal use only
May vary with lots
Black dot to denote Pin 1
=
=
=
Internal Code
4 Digit Date Code (Year /
Week)
Denotes RoHS Compliant
=
=
MMD
Frequency in MHZ
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Subject to change without notice
MIHK010311B
Pg 1of 2

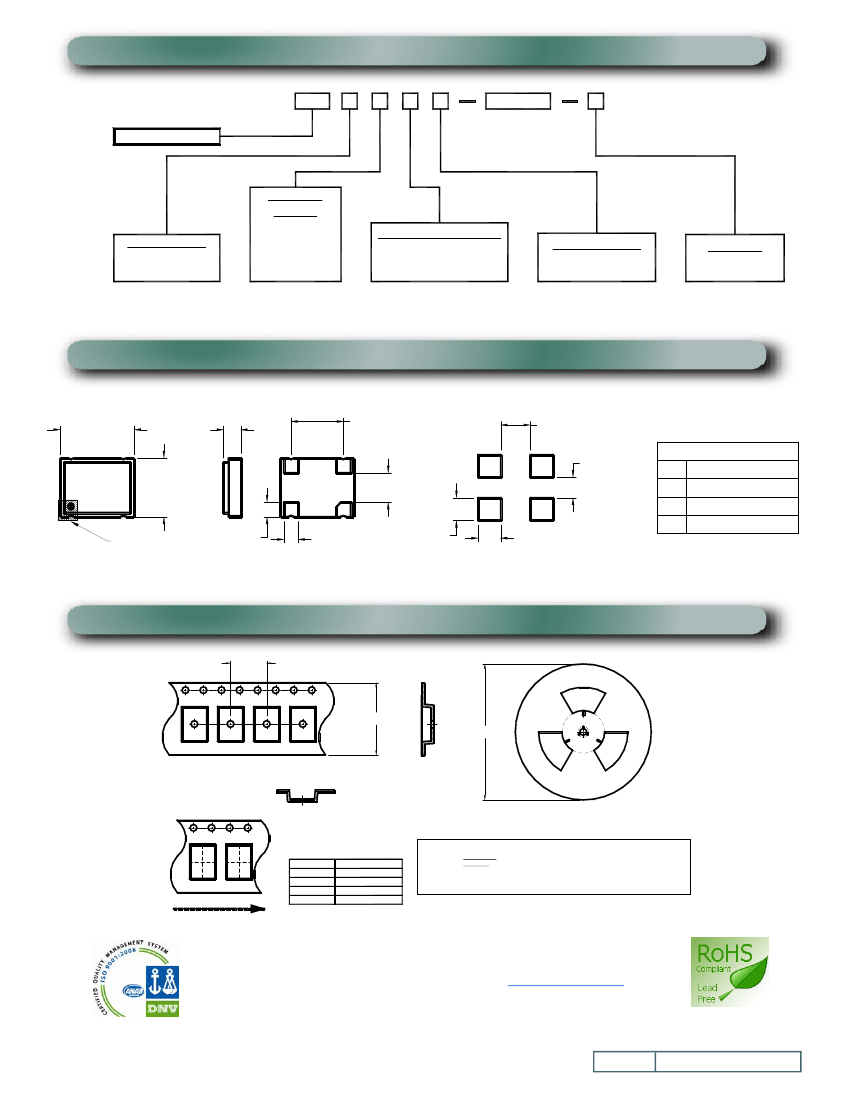

Part Number Guide
MIHK
5 X 7 Ceramic SMD
32.768KHZ
Supply Voltage
2 = +2.8 VDC
3 = +3.3 VDC
Frequency
Stability
020 = ±20 ppm
025 = ±25 ppm
050 = ±50 ppm
100 = ±100 ppm
Operating Temperature
Blank = 0°C to +70°C
27 = -20°C to +70°C
48 = -40°C to +85°C
Pin 1 Connection
H = Tri-State
S = Stand-by
Packaging
Blank = Bulk
T = Tape and Reel
Please Consult with MMD Sales Department for any other Parameters or Options
Mechanical Details
7.20 [.283]
MAX
1.70 [.067]
MAX
5.08 [.200]
2.88 [.113]
Pin Connections
Pin 1 Tri-state, N/C or Stand-by
Pin 2 Case Ground
Pin 3 Output
XX.XX
SYWW
1.81 [.071]
5.20 [.205]
MAX
3
2
4
1
2.60 [.102]
PIN 1 INDICATOR
1.30 [.051]
1.40 [.055]
2.00 [.079]
Pin 4 Supply Voltage
2.20 [.087]
Suggested Land
Pattern
Dimension in Brackets are in Inches
External Bypass Capacitor is Recommended
Tape & Reel Dimensions
PITCH
TAPE WIDTH
REEL DIA
Q1 Q2
Q3 Q4
Q1 Q2
Q3 Q4
PITCH
TAPE WIDTH
REEL DIA
QTY PER REEL
PIN 1 ORIENT.
8.00 [.315]
16.00 [.630]
180[7 IN]
1000
Q1
NOTES: UNLESS OTHERWISE SPECIFIED
1. Applicable Standards / Specifications
ANSI Y14.5M, Dimensions and Tolerances
EIA-481-B, 8 mm through 200mm Embossed Carrier Taping and 8 mm and 12 mm
Punched Carrier Taping of Surface Mount Components for Automatic Handling.
2. Dimensions are in millimeters.
3. Tolerances are ±0.10 [.004] mm unless otherwise specified.
4. Do not scale drawing.
DIRECTION OF FEED
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Subject to change without notice
MIHK010311B
Pg 2of 2
